Introduction
⌅The rocks of the Rodanas, Bolloncillos, Hoya and Huechaseca Formations were deposited during the upper Devonian in the Iberian Peninsula, in a foreland basin setting adjacent to the Ebro Massif (Carls, 1983Carls, P. (1983). La zona Asturoccidental-Leonesa en Aragón y el Macizo del Ebro como continuación del Macizo Cantábrico. In: Libro Jubilar J. M. Ríos, I.G.M.E., 3, 11-32.; Oliveira et al., 1986Oliveira, J.T.; García-Alcalde, J.L.; Liñan, E. & Truyols-Massoni, J. (1986). The Famennian of the Iberian Peninsula. Annales de la Société Géologique de Belgique, 11: 159-174.).
Provenance studies of siliciclastic rocks have been studied in sedimentary basins, such as foreland basins (i.e., DeCelles & Hertel, 1989De Celles, P.G. & Hertel, F. (1989). Petrology of fluvial sands from the Amazonian foreland basin, Peru and Bolivia. Geological Society of America Bulletin, 101: 1552-1562. https://doi.org/10.1130/0016-7606(1989)101<1552:POFSFT>2.3.CO;2 ; Critelli & Le Pera, 1994Critelli, S. & Le Pera, E. (1994). Detrital modes and provenance of Miocene sandstones and modern sands of the Southern Apennines thrust-top basins, Italy. Journal of Sedimentary Research, 64: 824-835. https://doi.org/10.1306/D4267ED8-2B26-11D7-8648000102C1865D ; White et al., 2002White, N.M.; Pringle, M.; Garzanti, E.; Bickle, M.; Najman, Y.; Chapman, H. & Friend, P. (2002). Constraints on the exhumation and erosion of the High Himalayan Slab, NW India, from foreland basin deposits. Earth and Planetary Science Letters, 195: 29-44. https://doi.org/10.1016/S0012-821X(01)00565-9 ; Critelli et al., 2003Critelli, S.; Arribas, J.; Le Pera, E.; Tortosa, A.; Marsaglia, K.M. & Latter, K.K. (2003). The recycled orogenic sand provenance from an uplifted thrust belt, Betic Cordillera, Southern Spain. Journal of Sedimentary Research, 73: 72-81. https://doi.org/10.1306/071002730072 ; Garzanti et al., 2003Garzanti, E.; Andò, S.; Vezzoli, G. & Dell’Era, D. (2003). From rifted margins to foreland basins: investigating provenance and sediment dispersal across desert Arabia (Oman, U.A.E.). Journal of Sedimentary Research, 73: 572-588. https://doi.org/10.1306/101702730572 ) or rift basins (i.e., Garzanti et al., 2001Garzanti, E.; Vezzoli, G.; Andò, S. & Castiglioni, G. (2001). Petrology of riftedmargin sand (Red Sea and Gulf of Aden, Yemen). Journal of Geology, 109: 277-297. https://doi.org/10.1086/319973 , 2003Garzanti, E.; Andò, S.; Vezzoli, G. & Dell’Era, D. (2003). From rifted margins to foreland basins: investigating provenance and sediment dispersal across desert Arabia (Oman, U.A.E.). Journal of Sedimentary Research, 73: 572-588. https://doi.org/10.1306/101702730572 ; Arribas et al., 2003Arribas, J.; Alonso, A.; Mas, R.; Tortosa, A.; Rodas, M.; Barrenechea, J.F.; Alonso-Azcarate, J. & Artigas, R. (2003). Sandstone petrography of continental depositional sequences of an intraplate rift basin: Western Cameros Basin (North Spain). Journal of Sedimentary Research, 73: 309-327. https://doi.org/10.1306/082602730309 , 2007Arribas, J.; Ochoa, M.; Mas, R.; Arribas, M.E. & González-Acebrón, L. (2007). Sandstone petrofacies in the northwestern sector of the Iberian Basin. Journal of Iberian Geology, 33: 191-206., 2014Arribas, J.; González-Acebrón, L.; Omodeo-Salé, S. & Mas, R. (2014). The influence of the provenance of arenite on its diagenesis in the Cameros Rift Basin (Spain). In: Sediment Provenance Studies in Hydrocarbon Exploration and Production (Scott, R.A.; Smyth, H.R.; Morton, A.C. & Richardson, N., Eds.), Geological Society of London, Special Publication, 386: 63-73. https://doi.org/10.1144/SP386.12 ; González-Acebrón et al., 2007González-Acebrón, L.; Arribas, J. & Mas, R. (2007). Provenance of fluvial sandstones at the start of late Jurassic-early Cretaceous rifting in the Cameros Basin (N. Spain). Sedimentary Geology, 202: 138-157. https://doi.org/10.1016/j.sedgeo.2007.05.008 , 2010González-Acebrón, L.; Arribas, J. & Mas, R. (2010). Sand provenance and implications for paleodrainage in a rifted basin: the Tera Group (N. Spain). Journal of Iberian Geology, 36: 179-184.), or in areas of relative tectonic quiescence (i.e., Marenssi et al., 2002Marenssi, S.A.; Net, L.I. & Santillana, S.N. (2002). Provenance, environmental and paleogeographic controls on sandstone composition in an incised-valley system: the Eocene La Meseta Formation, Seymour Island, Antarctica. Sedimentary Geology, 150: 301-321. https://doi.org/10.1016/S0037-0738(01)00201-9 ; Amorosi & Zuffa, 2011Amorosi, A. & Zuffa, G.G. (2011). Sand composition changes across key boundaries of siliciclastic and hybrid depositional sequences. Sedimentary Geology, 236: 153-163. https://doi.org/10.1016/j.sedgeo.2011.01.003 ; Amorosi et al., 2012Amorosi, A.; Guidi, R.; Mas, R. & Falanga, E. (2012). Glaucony from the Cretaceous of the Sierra de Guadarrama (Central Spain) and its application in a sequence-stratigraphic context. International Journal of Earth Sciences, 101: 415-427. https://doi.org/10.1007/s00531-011-0675-x ; González-Acebrón et al., 2017González-Acebrón, L.; Pérez-Garrido, C.; Mas, R.; Arribas, J. & Götze, J. (2017). Provenance signatures recorded in transgressive sandstones of the upper Cretaceous Iberian Seaway. Journal of Sedimentary Research, 87: 152-166. https://doi.org/10.2110/jsr.2017.4 ).
For that, in this work, a detailed petrographic study of Upper Devonian rocks from the Iberian Chain and the diagenetic history of these quartz-rich sedimentary rocks is presented. So, it makes inferences on the provenance, and outlines the tectonic setting associated with the Ebro Massif. The provenance and diagenesis of the Upper Devonian rocks in the Iberian Chains are studied by means of a combination of optical microscopy (Basu et al., 1975Basu, A.; Young, S.W.; Suttner, L.J.; James, W.C. & Mack, G.H. (1975). Re-evaluation of the use of undulatory extinction and polycrystallinity in detrital quartz for provenance interpretation. Journal of Sedimentary Petrology, 45: 873-882. https://doi.org/10.1306/212F6E6F-2B24-11D7-8648000102C1865D ; Young, 1976Young, S.W. (1976). Petrographic textures of detrital polycrystalline quartz as an aid in interpreting crystalline source rocks. Journal of Sedimentary Research, 46: 595-603. https://doi.org/10.1306/212F6FFA-2B24-11D7-8648000102C1865D ; Tortosa et al., 1991Tortosa, A.; Palomares, M. & Arribas, J. (1991). Quartz grain types in Holocene deposits from the Spanish Central System: some problems in provenance analysis. In: Developments in Sedimentary Provenance Studies (Morton, A.C.; Todd, S.P. & Haughton, P.D.W. Eds.), Geological Society of London, Special Publication, 157: 47-54. https://doi.org/10.1144/GSL.SP.1991.057.01.05 ), scanning electron microscopy (Kwon & Boggs, 2002Kwon, Y.I. & Boggs Jr., S. (2002). Provenance interpretation of Tertiary sandstones from the Cheju Basin (NE East China Sea): a comparison of conventional petrographic and scanning cathodoluminescence techniques. Sedimentary Geology, 152: 29-43. https://doi.org/10.1016/S0037-0738(01)00284-6 ), atomic absorption spectroscopy, X-ray fluorescence and X-ray diffraction (OM/SEM/AAS/XRF/XRD). In this sense, AAS and XRF analysis were used to determine the content of Ca, Mg, Fe, Mn, Na, K and Sr (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.); and XRD analysis was used to determine the clay´s crystalline phases.
Geological setting
⌅The Devonian materials of the Iberian Chains have been included into the Herrera Unit (Carls, 1983Carls, P. (1983). La zona Asturoccidental-Leonesa en Aragón y el Macizo del Ebro como continuación del Macizo Cantábrico. In: Libro Jubilar J. M. Ríos, I.G.M.E., 3, 11-32.; Gozalo & Liñán, 1988Gozalo, R. & Liñan, E. (1988). Los materiales hercínicos de la Cordillera Ibérica en el contexto del Macizo Ibérico. Estudios Geológicos, 44: 399-404. https://doi.org/10.3989/egeol.88445-6556 ; Fig. 1.A).The outcrops of Upper Devonian rocks are located in two areas: The Montalbán Anticline from the NE Iberian Chains (Carls & Lages, 1983Carls, P. & Lages, R. (1983). Givetium und Ober-Devon in den östlichen Iberischen Ketten (Spanien). Zeitschrift der Deutschen Geologischen Gesellschaft, 134: 119-142. https://doi.org/10.1127/zdgg/134/1983/119 ; Carls et al., 2004Carls, P.; Gozalo, R.; Valenzuela-Ríos, J. I. & Truyols-Massoni, M. (2004). La sedimentación marina devónico-carbonífera. In: Geología de España (Vera, J. A., Ed. principal). Sociedad Geológica de España - Instituto Geológico y Minero, 475-479.) and the Tabuenca and Rodanas Area from the NW Iberian Chains (Gozalo, 1986Gozalo, R. (1986). La serie estratigráfica del Devónico Superior de la Sierra de Tabuenca (Cadena Ibérica Oriental). Resumenes de Tesina. Universidad de Zaragoza, Curso 83-84: 111-122., 1994Gozalo, R. (1994). Geología y Paleontología (ostrácodos) del Devónico Superior de Tabuenca (NE de la cadena Ibérica Oriental). Memorias del Museo Paleontológico de la Universidad de Zaragoza, 6, 291 pp.; Bauluz, 1997Bauluz, B. (1997). Caracterización mineralógica y geoquímica de materiales detríticos precámbricos y paleozoicos de las Cadenas Ibéricas: evolución post-sedimentaria. Tesis Doctoral, Universidad de Zaragoza, 341 pp.; Bauluz et al., 2000Bauluz, B.; Mayayo, M.J.; Fernández-Nieto, C. & González López, J.M. (2000). Geochemistry of Precambrian and Paleozoic siliciclastic rocks from the Iberian Range (NE Spain): implications for source-area weathering, sorting, provenance, and tectonic setting. Chemical Geology, 168: 135-150. https://doi.org/10.1016/S0009-2541(00)00192-3 ; Torrijo et al., 2000Torrijo, F.J.; Mandado, J.; Sanz, F.J., Bona, M.E. & Acero, P. (2000). Estimación de la profundidad de enterramiento y deformación compactacional asociada, existente durante el crecimiento de concreciones carbonatadas de la Fm. Rodanas, Tabuenca (Zaragoza). Geo-Temas, 1 (3), 303-306., 2001Torrijo, F.J.; Mandado, J.; Acero, P. & Bona, M.E. (2001). Modelización genética de concreciones carbonatadas: Aplicación al Devónico de Tabuenca (Cordillera Ibérica, España). Estudios Geológicos, 57: 115-127. https://doi.org/10.3989/egeol.01573-4131 ; Gozalo et al., 2001Gozalo, R.; Carls, P.; Valenzuela-Ríos, J.I. & Pardo Alonso, M.V. (2001). El Devónico Superior de Tabuenca (Provincia de Zaragoza). In: La Era Paleozoica. El desarrollo de la vida marina, Homenaje al Prof. Jaime Truyols (Gámez-Vintaned, J.A. & Liñán, E., Eds.), Memorias de las VII Jornadas Aragonesas de Paleontología, Ricla, 169-190., 2017Gozalo, R.; Valenzuela-Ríos, J.I.; Pardo Alonso, M.V.; Liao, J.-C. & Carls, P. (2017). Late Devonian in the Barranco del Molino (Tabuenca) Iberian Chains (NE Spain). Berichte des Institutes für Erdwissenschaften der Karl-Franzens-Universität, 23: 111-123.; García-Alcalde et al., 2002García-Alcalde, J. L.; Carls, P.; Pardo Alonso, M. V.; Sanz López, J.; Soto, F.; Truyols-Massoni, M. & Valenzuela-Ríos, J. I. (2002). Devonian. In: The Geology of Spain. (Gibbons, W. & Moreno, T., eds.), Geological Society, London, 67-91. https://doi.org/10.1144/GOSPP.6 ; Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.; Carls et al., 2004Carls, P.; Gozalo, R.; Valenzuela-Ríos, J. I. & Truyols-Massoni, M. (2004). La sedimentación marina devónico-carbonífera. In: Geología de España (Vera, J. A., Ed. principal). Sociedad Geológica de España - Instituto Geológico y Minero, 475-479.). The Upper Devonian rocks of the Tabuenca and Rodanas Area (Fig. 1.B) are composed of 1300 m of mostly siliciclastic materials with up to 30 m interbedded carbonatic rocks (Gozalo, 1986Gozalo, R. (1986). La serie estratigráfica del Devónico Superior de la Sierra de Tabuenca (Cadena Ibérica Oriental). Resumenes de Tesina. Universidad de Zaragoza, Curso 83-84: 111-122., 1994Gozalo, R. (1994). Geología y Paleontología (ostrácodos) del Devónico Superior de Tabuenca (NE de la cadena Ibérica Oriental). Memorias del Museo Paleontológico de la Universidad de Zaragoza, 6, 291 pp.; Fig. 2). The age of these rocks span from the Early Frasnian to the Late Fammenian (Gozalo, 1986Gozalo, R. (1986). La serie estratigráfica del Devónico Superior de la Sierra de Tabuenca (Cadena Ibérica Oriental). Resumenes de Tesina. Universidad de Zaragoza, Curso 83-84: 111-122., 1994Gozalo, R. (1994). Geología y Paleontología (ostrácodos) del Devónico Superior de Tabuenca (NE de la cadena Ibérica Oriental). Memorias del Museo Paleontológico de la Universidad de Zaragoza, 6, 291 pp.; Montesinos & Gozalo, 1987Montesinos, J.R. & Gozalo, R. (1987). Schindewolfoceras y otras formas de ammonoideos en el Devónico Superior de la Cordillera Ibérica. Revista Española de Paleontología, 2, 27-32.; Montesinos et al., 1990Montesinos, J.R., Truyols-Massoni, M. & Gozalo, R. (1990). Una aproximación al límite Frasniense-Fameniense en la Sierra de Tabuenca (NE de España). Revista Española de Paleontología, 5, 35-39.; Carls & Valenzuela, 2002Carls, P. & Valenzuela-Ríos, J.I. (2002). Devonian-Carboniferous rocks from the Iberian Cordillera. Cuadernos del Museo Geominero, 1: 299-314.; Valenzuela et al., 2002Valenzuela, J.I.; Gozalo, R. & Pardo Alonso, M.V. (2002). Los conodontos frasnienses y el límite Frasniense/Fameniense en Tabuenca (provincia de Zaragoza), Cadenas Ibéricas (NE de España). Revista Española de Micropaleontología, 34: 289-302.; Dojen et al., 2004Dojen, C.; Gozalo, R.; Carls, P. & Valenzuela, J. I. (2004). Early and Late Devonian ostracod faunas from the Iberian Chains (NE Spain). Revista Española de Micropaleontología, 36: 171-185.), and they are subdivided into four lithologic units by Gozalo (1994Gozalo, R. (1994). Geología y Paleontología (ostrácodos) del Devónico Superior de Tabuenca (NE de la cadena Ibérica Oriental). Memorias del Museo Paleontológico de la Universidad de Zaragoza, 6, 291 pp.; Fig. 2) named, in stratigraphical order, as Rodanas Formation, Bolloncillos Formation, Hoya Formation and Huechaseca Formation.
The Rodanas Fm. comprises thin-to medium-bedded, light brown, quartzose sandstones with hardgrounds, limolites as well as lutites with carbonate concretions and narrow episodes of carbonates. The fossil content hints at a deep sublittoral, or event circalittoral environment; above it, very important siliciclastic sedimentation, indicative of shallower environments, was developed (Gozalo, 1994Gozalo, R. (1994). Geología y Paleontología (ostrácodos) del Devónico Superior de Tabuenca (NE de la cadena Ibérica Oriental). Memorias del Museo Paleontológico de la Universidad de Zaragoza, 6, 291 pp.; Gozalo et al., 2017Gozalo, R.; Valenzuela-Ríos, J.I.; Pardo Alonso, M.V.; Liao, J.-C. & Carls, P. (2017). Late Devonian in the Barranco del Molino (Tabuenca) Iberian Chains (NE Spain). Berichte des Institutes für Erdwissenschaften der Karl-Franzens-Universität, 23: 111-123.). The Bolloncillos Fm. is an alternance of coarse to fine sandstone and lutites, the sandstone are predominant in the lower part and the lutites increasing in the upper part of the formation; the beginning of this formation represents a shallowing, that was followed by a deepening, but environments keep always within the sublittoral; the fossil and ichnofossil content of the upper part and the presence of organic matter would indicate a poorly oxygenated benthos, or even below the minimum oxygenation zone relate with the upper Kellwasser Event (Gozalo et al., 2017Gozalo, R.; Valenzuela-Ríos, J.I.; Pardo Alonso, M.V.; Liao, J.-C. & Carls, P. (2017). Late Devonian in the Barranco del Molino (Tabuenca) Iberian Chains (NE Spain). Berichte des Institutes für Erdwissenschaften der Karl-Franzens-Universität, 23: 111-123.). A transitional contact exists between this formation and the Bolloncillos and the Hoya formations, which consist of interbedded sandstones and lutites with siliceous nodules. Channel sand bodies-fills, ripple marks and through cross-bedding, typical sedimentary structures for shallow braided rivers (Miall, 1996Miall, A.D. (1996). The Geology of Fluvial Deposits: Sedimentary Facies, Basin Analysis and Petroleum Geology. Springer-Verlag, Berlin, 582 pp.) can be identified in the sandstone layers of the Hoya Fm. in the study area, possibly representing a fluvial/coastal environment. The transition to the overlying Huechaseca Fm. is again gradational. This last formation consists almost exclusively of quartz arenites. The sandstones of these four units are clastic sedimentary rocks with >95% of quartz as the main constituent of the framework grains (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.).
The gradational transitions existing between these formations seem to reflect sea-level changes (Gozalo, 1994: Fig. 78Gozalo, R. (1994). Geología y Paleontología (ostrácodos) del Devónico Superior de Tabuenca (NE de la cadena Ibérica Oriental). Memorias del Museo Paleontológico de la Universidad de Zaragoza, 6, 291 pp.) in a shallow epicontinental sea, which existed in this area at least from the Late Devonian (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.), to the deposition of the overlying Carboniferous materials.
Materials and methods
⌅General Concepts

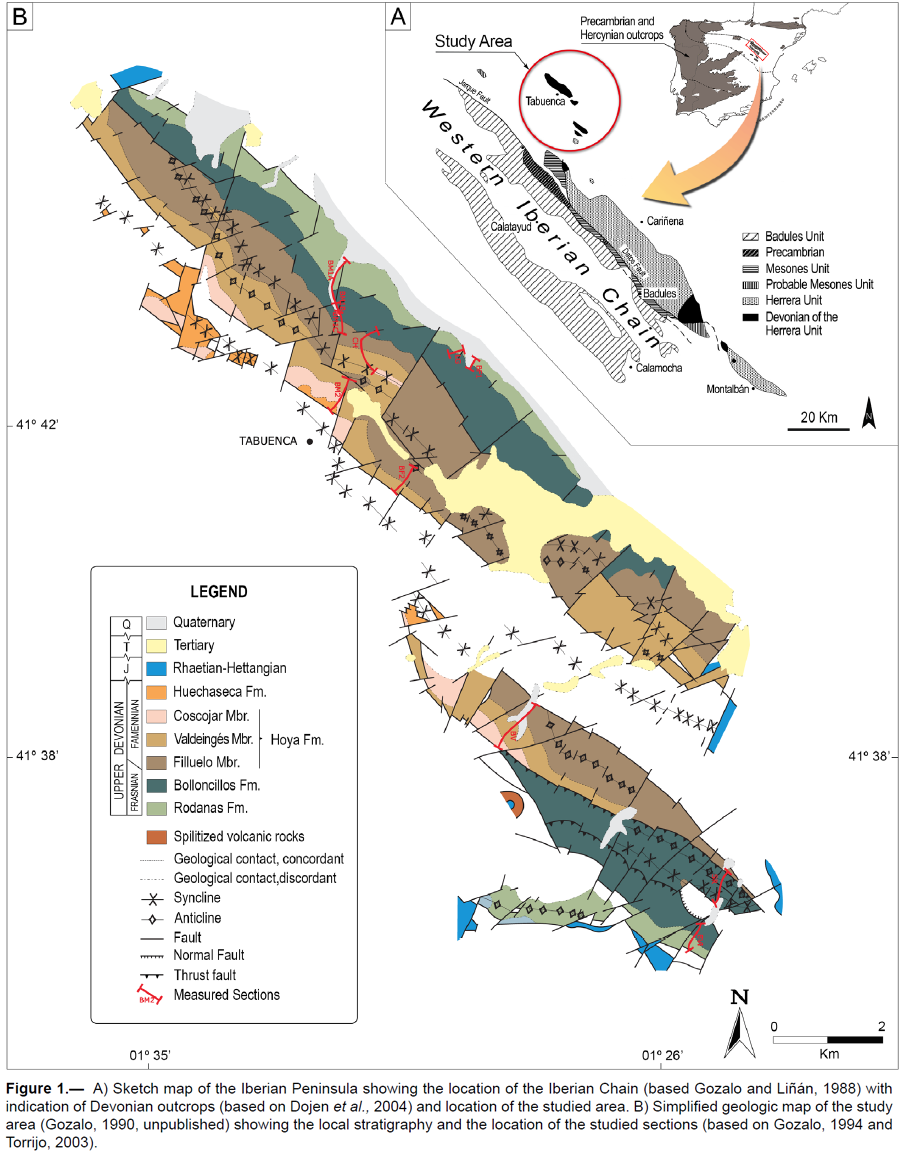

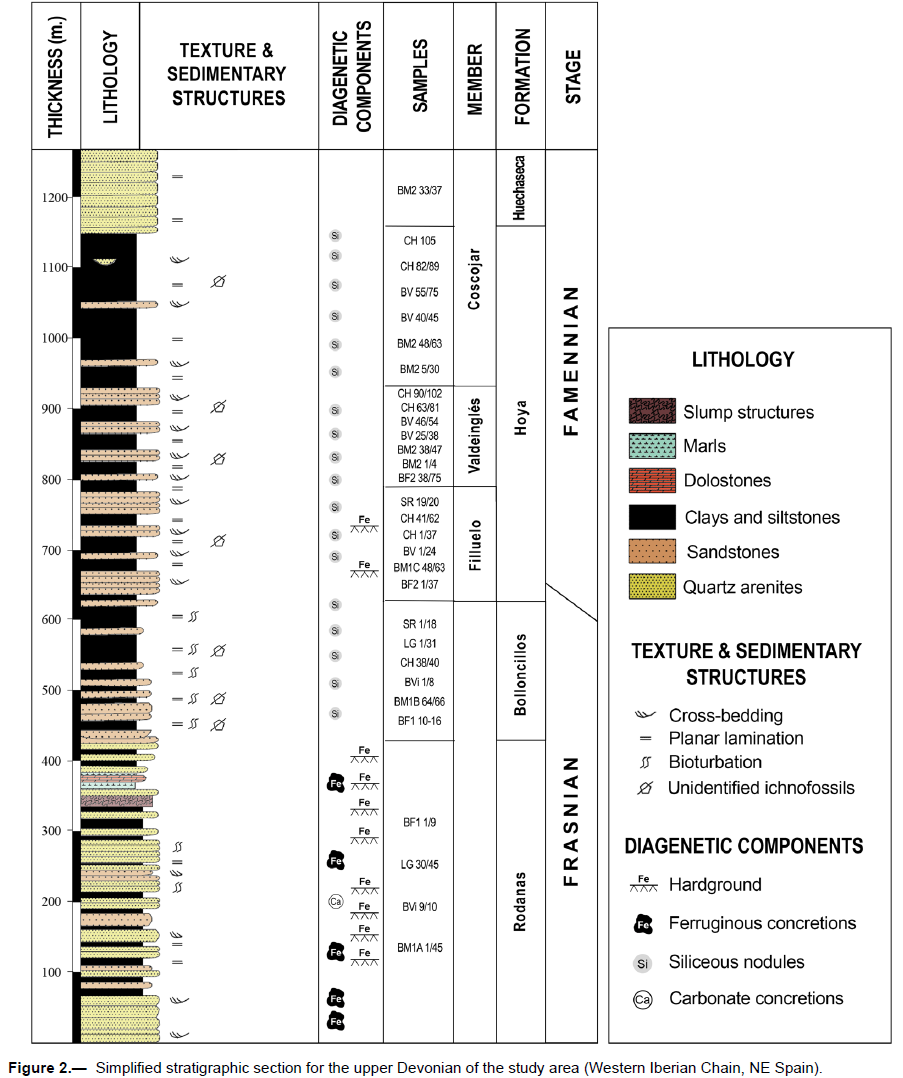

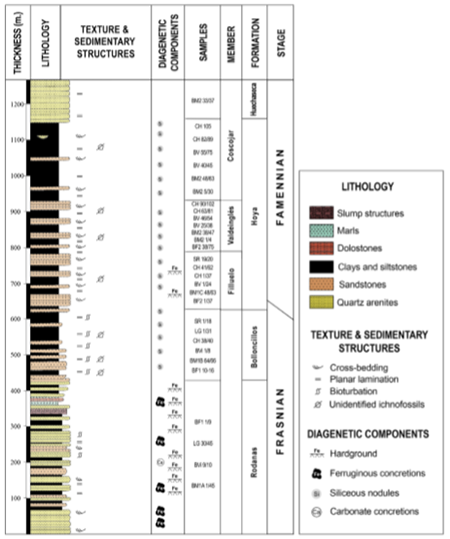

⌅Eleven representative stratigraphic sections were logged in the upper Devonian sedimentary sequence (Fig. 1) and over 620 samples were collected for analysis (Fig. 2). The position of samples in stratigrafic sections are provided in the electronic supplementary material accompanying this report (named Stratigraphical Profies). These samples were studied using combined OM/SEM/AAS/XRD analysis.
Quantitative Petrographic Analysis
⌅Over 424 samples were analyzed to study their provenance and diagenesis, including those of the Rodanas Fm. (132 samples), the Bolloncillos Fm. (69 samples), the Hoya Fm. (218 samples) and the Huechaseca Fm. (5 samples). A Zeiss Jena 30-G0060 Jenapol polarizing microscope with 25x, 50x and 100x magnification was used for petrographic analysis. Standard point counting techniques were applied, using the integrated Gazzi-Zuffa point counting method (Zuffa, 1985Zuffa, G.G. (1985) Optical analyses of arenites: influence of methodology on compositional results. In: Provenance of Arenites (Zuffa, G.G., Ed.), Reidel, Cosenza, 165-189. https://doi.org/10.1007/978-94-017-2809-6_8 ), as recommended by Ingersool et al. (1984)Ingersoll, R.V.; Bulard, T.F.; Ford, R.L.; Grimm, J.P.; Pickle, J.D. & Sares, S.W. (1984). The effect of grain size on detrital modes: a text of the Gazzi-Dickinson point-counting method. Journal of Sedimentary Research, 54: 103-116. https://doi.org/10.1306/212F83B9-2B24-11D7-8648000102C1865D and González-Acebrón (2017)González-Acebrón, L.; Pérez-Garrido, C.; Mas, R.; Arribas, J. & Götze, J. (2017). Provenance signatures recorded in transgressive sandstones of the upper Cretaceous Iberian Seaway. Journal of Sedimentary Research, 87: 152-166. https://doi.org/10.2110/jsr.2017.4 . 300 points were counted per thin section, distinguishing thirteen different components. This data was applied for sandstone classification and for estimating the amount of porosity lost by compaction, cementation and matrix/pseudomatrix, assuming 45% original porosity (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.; Bernet et al., 2007Bernet, M.; Kapoutsos, D. & Basset, K. (2007). Diagenesis and provenance of Silurian quartz arenites in south-eastern New York State. Sedimentary Geology, 201: 43-55. https://doi.org/10.1016/j.sedgeo.2007.04.006 ).
SEM Analysis
⌅SEM analyses were carried out using ZEISS DSM 940A and JSM 6400 microscopes provided with with a Thechnosym 8200 MKII. Mineral identifications were evaluated by chemical spot analyses using an eXL-10 Link Analytical X-ray EDS analysis. Digital SEM images were taken at 150 to 200 µA beam current and 10-13 kV acceleration voltage at an average working distance of 20 mm. Images of 30x, 60x and 100x magnification were taken at 8000-pixel average. The samples studied are rock fragments included in resin.
Atomic Absorption Spectroscopy and X-Ray Fluorescence Analysis
⌅The content of various chemical elements were determined with atomic absorption spectroscopy and X-ray fluorescence. AAS analysis was done with a Perkin-Elmer 3030 and the elements analysed and detection limits were the following: Ca (1000 ppm), Mg (20 ppm), Fe (100 ppm), Mn (6,5 ppm), Na (10 ppm) and K (50 ppm).
On the other hand, XRF was done in X-Assay Laboratory (XRAL) of Toronto and the elements analysed and detection limits were the following: SiO2 (0,01%), Al2O3 (0,01%), CaO (0,01%), MgO (0,01%), Na2O (0,01%), K2O (0,01%), Fe2O3 (0,01%), MnO (0,01%), TiO2 (0,01%), P2O5 (0,01%), Rb (2 ppm), Sr (2 ppm), Y (2 ppm), Zr (2 ppm), Nb (2 ppm) and Ba (20 ppm).
XRD Analysis
⌅A Pananalytical Xpert with Detector XCeleretor and a Bruker D8 Advance with SOL-X were used for X-ray diffraction analysis. The determination of the clay’s crystalline phases was made as recommended by Galán & Martín Vivaldi (1973)Galán, E., & Martín Vivaldi, J.L. (1973). Caolines españoles. Geología, mineralogía y génesis. Parte 1. Boletin de la Sociedad Española de Cerámica y Vidrío, 12: 79-80..
Results
⌅Petrological Characteristics
⌅The arenites from the Rodanas Fm. are quartz arenites (Pettijohn et al., 1987Pettijohn, F.J.; Potter, P.E. & Siever, R. (1987). Sand and sandstone (2nd edition). Springer-Verlag, New York, 553 pp. https://doi.org/10.1007/978-1-4612-1066-5 ) composed of detrital quartz grains, mainly monocrystalline quartz, although some polycrystalline quartz grains with undulating extinction are observed. Silicate minerals (muscovite, tourmaline, zircon, potassium feldspar), apatite grains and lithic fragments are scarce, as well as no plagioclase grains were observed. Grain contacts in arenites are concavo-convex to sutured. The phyllosilicate matrix is very rare and is associated with the diagenetic alteration of the labile components (epimatrix) and the deformation of the ductile grains (mica) during the first phase of the compaction processes. The scarce interparticle porosity is sealed by siliceous cement of a syntaxial type and ferruginous cements. Limolites are a quartz wackes and lithic wackes (Pettijohn et al., 1987Pettijohn, F.J.; Potter, P.E. & Siever, R. (1987). Sand and sandstone (2nd edition). Springer-Verlag, New York, 553 pp. https://doi.org/10.1007/978-1-4612-1066-5 ), formed by phyllosilicate matrix of quartz grains, lithic fragments and micas (muscovite), in variable proportion.
In the Bolloncillos Fm., the arenites, similar to those of the Rodanas Fm., are also quartz wackes to lithic wackes (Pettijohn et al., 1987Pettijohn, F.J.; Potter, P.E. & Siever, R. (1987). Sand and sandstone (2nd edition). Springer-Verlag, New York, 553 pp. https://doi.org/10.1007/978-1-4612-1066-5 ), or quartz arenites to sublitharenites (Pettijohn et al., 1987Pettijohn, F.J.; Potter, P.E. & Siever, R. (1987). Sand and sandstone (2nd edition). Springer-Verlag, New York, 553 pp. https://doi.org/10.1007/978-1-4612-1066-5 ), although the latter in smaller proportion. The wackes are constituted, mostly, by quartz clasts and by lithic fragments and micas (muscovite) in minor proportion, and also, phyllosilicate and quartz matrix (15-20 %). The quartz arenites and sublitharenites are mainly by quartz clasts basically monocrystalline, although some polycrystalline quartz grains with undulating extinction are observed, and in minor proportion, sedimentary rock fragments, zircon, mica and apatite grains.
The Hoya Fm. has been subdivided into three members (Gozalo, 1994Gozalo, R. (1994). Geología y Paleontología (ostrácodos) del Devónico Superior de Tabuenca (NE de la cadena Ibérica Oriental). Memorias del Museo Paleontológico de la Universidad de Zaragoza, 6, 291 pp.) that from base to up are Filluelo Mb., Valdeinglés Mb. and Coscojar Mb. The Filluelo Mb. is a detrital alternance constituted by arenites and lutites-limolites. The Valdeinglés Mb. consists of an arenite-lutite alternance. Its limit with the underlain Filluelo Mb. is based on the augment of lutitic material and in a colour change (white to green and brown colours). The Coscojar Mb. consists of lutites with narrow intecalations of arenites. Generally, the arenites are sublitharenites to lithic wackes (Pettijohn et al., 1987Pettijohn, F.J.; Potter, P.E. & Siever, R. (1987). Sand and sandstone (2nd edition). Springer-Verlag, New York, 553 pp. https://doi.org/10.1007/978-1-4612-1066-5 ) formed by quartz clasts, basically monocrystalline, and in minor proportion, lithic fragments, very altered potassium feldspar, tourmaline (partially silicified) and mica grains. Grain contacts in arenites are concave-convex to sutured, and the phyllosilicate and quartz matrix (2-16 %) is associated with the diagenetic alteration of the labile components (epimatrix) and the deformation of the ductile grains (mica) in the first phase of the compaction processes.
In Huechaseca Fm., the arenites are quartz arenites (Pettijohn et al., 1987Pettijohn, F.J.; Potter, P.E. & Siever, R. (1987). Sand and sandstone (2nd edition). Springer-Verlag, New York, 553 pp. https://doi.org/10.1007/978-1-4612-1066-5 ) formed by quartz clasts, mainly monocrystalline quartz, although some polycrystalline quartz grains with undulating extinction are observed. Silicate mineral (muscovite, tourmaline, zircon, apatite), and lithic fragments grains are scarce, as well as no plagioclase grains were observed; and the phyllosilicate matrix is very rare (<1 %). Grain contacts are concave-convex to sutured (Fig. 3).

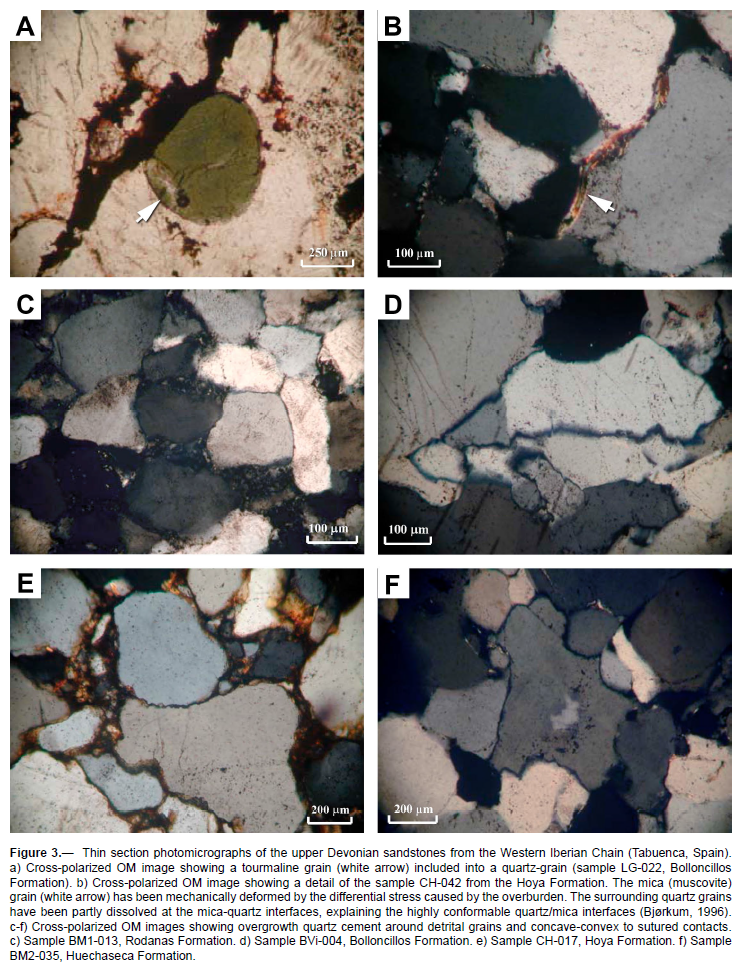

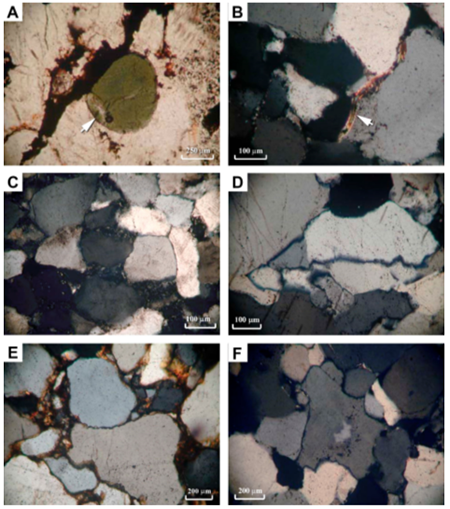

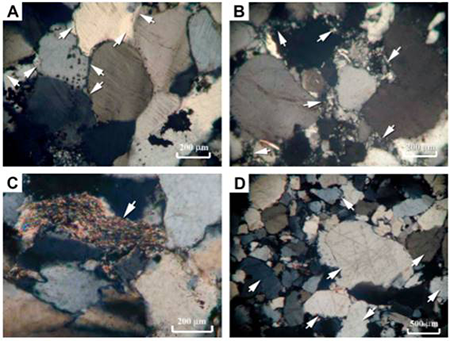

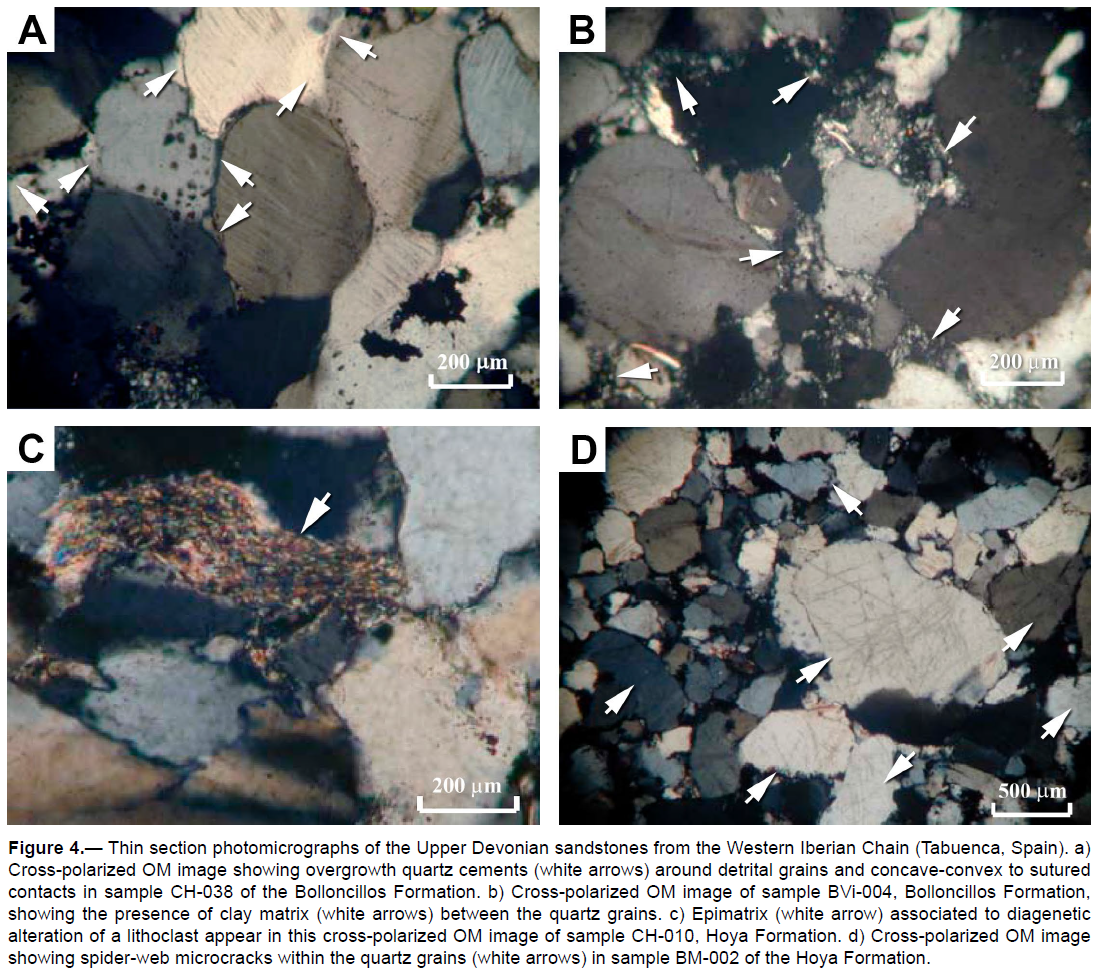

Analyses done using combined SEM and OM on individual quartz grains showed that the majority of the sand grains in the studied samples were identified as of plutonic origin, thanks to the presence of spider-web microcracks within the grains (Sprunt & Nur, 1979Sprunt, E.S. & Nur, A. (1979). Microcracking and healing in granites: New evidence from cathodoluminescence. Science, 205: 495-497. https://doi.org/10.1126/science.205.4405.495 ; Berner et al., 2007Bernet, M.; Kapoutsos, D. & Basset, K. (2007). Diagenesis and provenance of Silurian quartz arenites in south-eastern New York State. Sedimentary Geology, 201: 43-55. https://doi.org/10.1016/j.sedgeo.2007.04.006 ). Grains of potential volcanic affinity are almost exclusively restricted to the finest sand-sized fraction of the samples (Fig. 4).
Geochemical Characteristics

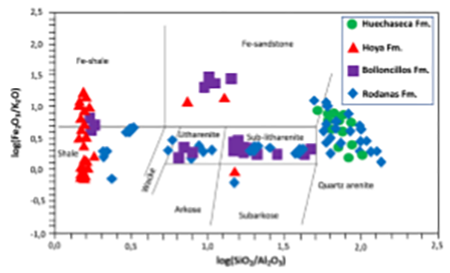

⌅The most pronounced compositional differences between the analysed samples are in the in SiO2 and Al2O3 content, which would reflect the different proportions of phyllosilicates and quartz present in each type of rock. In addition, there are noticeable differences in the average content in Fe2O3 due to synsedimentary and diagenetic processes. The proportion of TiO2 is also higher in the lutites than the other lithologies. The high correlation presented by Al2O3 with K2O and TiO2 would indicate that they are being provided primarily by phyllosilicates, while those with lower Fe2O3, would indicate they are also found in other mineral phases such as Fe-oxyhydroxides. In the case of CaO and MgO, no significant correlations are observed with Al2O3, suggesting they should be present in other mineral phases, possibly carbonates, especially in the Rodanas Fm. The samples analyzed by X-ray fluorescence, except the carbonated samples of the Rodanas Fm., were geochemically classified (Fig. 5) according to Herron (1988)Herron, M.M. (1988). Geochemical classification of terrigenous sands and shales from core or log data. Journal of Sedimentary Research, 58: 820-829. https://doi.org/10.1306/212F8E77-2B24-11D7-8648000102C1865D , as suggested by Rollinson (1998) Rollinson, H.R. (1998). Using Geochemical Data: Evaluation, Presentation, Interpretation. Longman, London, 352 pp. .

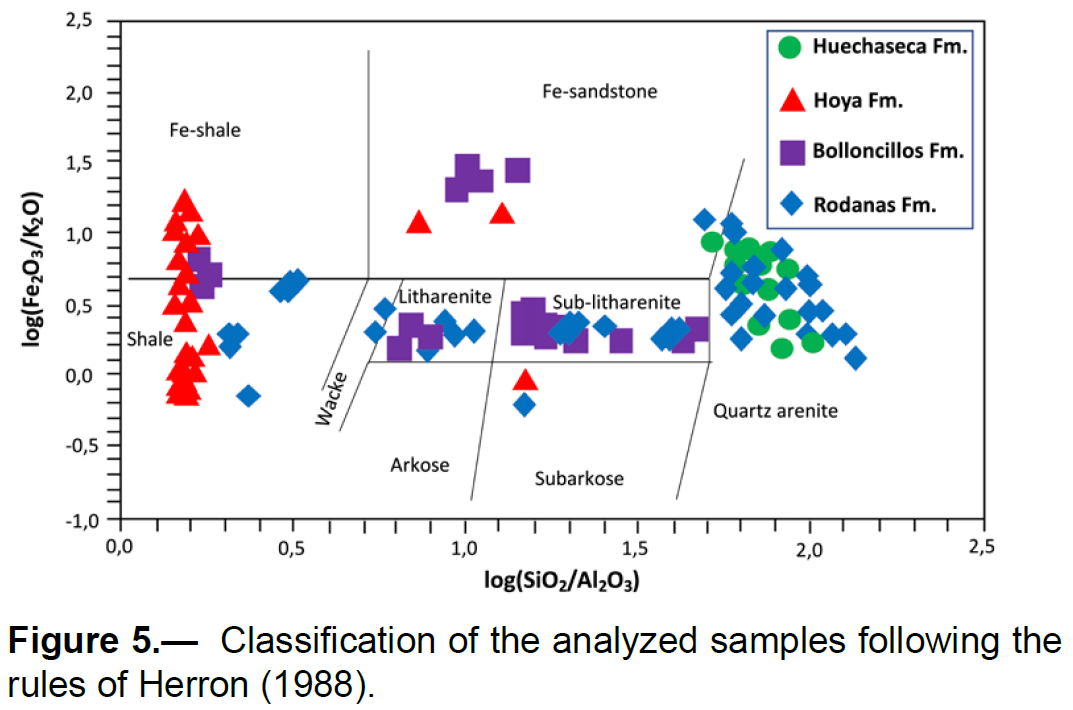

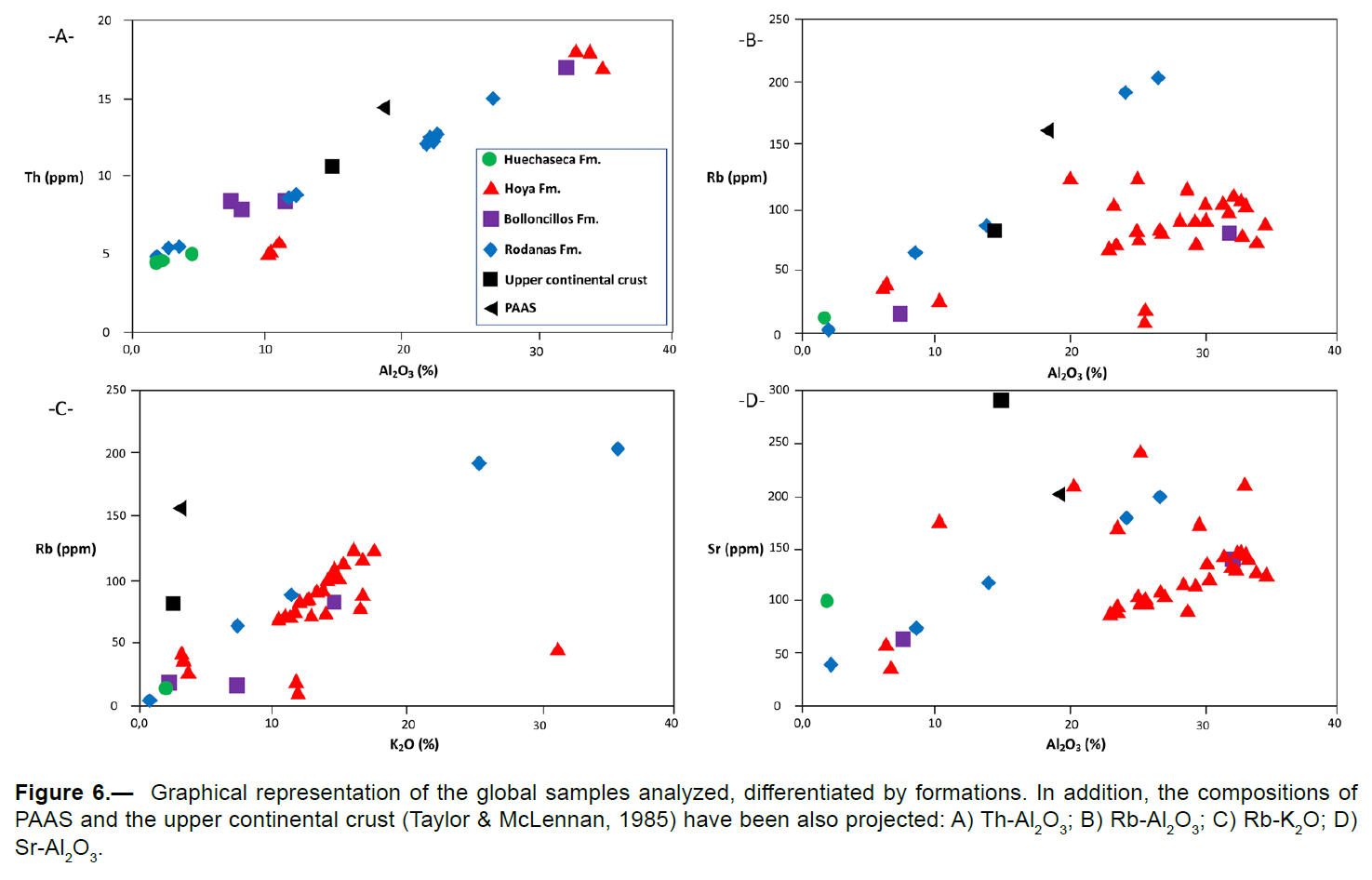

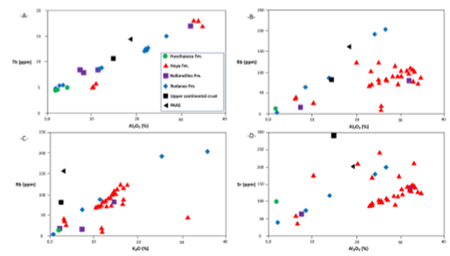

In addition, it has been observed that the Rb, Cs, Ba, Sr, Th and U contents significant correlations with the amount of Al2O3. This would suggest that, in different proportions, the distribution of all of them is controlled by the presence of phyllosilicates (Dumitru et al., 2015Dumitru, T.A.; Ernst; W.G., Hourigan, J.K. & McLaughlin, R.J. (2015). Detrital zircon U-Pb reconnaissance of the Franciscan subduction complex in northwestern California. International Geology Review, 57: 767-800. https://doi.org/10.1080/00206814.2015.1008060 ). However, Sr presents a behavior lightly erratic, probably due to its presence in several mineral phases (i.e., carbonates, phyllosilicates...). Besides, the good linear interrelations that the Rb and the Cs present with the K2O, might indicate that, possibly, they are being controlled by the micaceous phases (Fig. 6). Zr exhibits a geochemical behavior similar to Hf (Bauluz, 1997Bauluz, B. (1997). Caracterización mineralógica y geoquímica de materiales detríticos precámbricos y paleozoicos de las Cadenas Ibéricas: evolución post-sedimentaria. Tesis Doctoral, Universidad de Zaragoza, 341 pp.), reflected in the high correlation between both (Zr/Hf = 30-40). This would indicate that they are being contributed mainly by zircons (Murali et al., 1983Murali, A.V.; Parthasarathy, R.; Mahadevan, T.M. & Sankar Das, M. (1983). Trace element characteristics, REE patterns and partition coefficients of zircons from different geological environments - A case study on Indian zircons. Geochimica et Cosmochimica Acta, 47: 2047-2052. https://doi.org/10.1016/0016-7037(83)90220-X ).
Finally, with regard to rare-earth elements (REE), they are provided with the information contributed by Bauluz (1997)Bauluz, B. (1997). Caracterización mineralógica y geoquímica de materiales detríticos precámbricos y paleozoicos de las Cadenas Ibéricas: evolución post-sedimentaria. Tesis Doctoral, Universidad de Zaragoza, 341 pp.. It show that both light and heavy rare earth elements (LREE and HREE) have a similar geochemical behavior. That is, they tend to concentrate on the same type of mineral phases. However, LREE and HREE tend to have slightly different geochemical behaviors.
Detailed cuantitative tables containing the results derived from the complete geochemical analyses are provided in the electronic supplementary material accompanying this paper (named Geochemical Data).
Sand-Sized Grains
⌅The sand-sized grains from the Hoya Fm. samples are mostly angular to sub-rounded in shape. Most of the sand-sized grains in the Rodanas, Bolloncillos and Huechaseca formations’ samples have a higher textural maturity, being mainly sub-rounded to rounded. Grain contacts in all these formations range from concave-convex to sutured. Additional petrographic information of arenites in upper Devonian Formations are provided in Table 2.
Porosity and Cementation
⌅Only 63 samples (14.8 % of total samples) presented secondary porosity, ranging between 0.1 and 1.2 %, and no primary porosity was found in any of the samples because it was occluded by compaction, post depositional cementation and by the formation of matrix/epimatrix. Compaction is, in general, the most important factor of loss of primary porosity and resulted in an increase in contact strength, with more concave-convex and sutured contacts than long or point contacts, brittle deformation and deformation of ductile grains (e.g. muscovite). Quartz cementation is the second important factor for porosity reduction. Quartz cement appears in most samples with various grey shades in panchromatic SEM images. Samples with a relatively high matrix content were less affected by compaction.
Discussion
⌅Diagenetic History
⌅Compaction is the most important diagenetic process along the first 2 km of burial, whereas cementation increases at higher depths, especially when temperatures reach 85ºC or more (Worden & Morad, 2000Worden, R.H. & Morad, S. (2000) Quartz cementation in oil field sandstones: a review of the key controversies. In: Quartz Cementation in Sandstones (Worden, R.H. & Morad, S., Eds.), IAS Special Publication, 29: 1-20. https://doi.org/10.1002/9781444304237.ch1 ; Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.; Bernet et al., 2007Bernet, M.; Kapoutsos, D. & Basset, K. (2007). Diagenesis and provenance of Silurian quartz arenites in south-eastern New York State. Sedimentary Geology, 201: 43-55. https://doi.org/10.1016/j.sedgeo.2007.04.006 ; Surpless, 2015Surpless, K.D. (2015). Geochemistry of the Great Valley Group: an integrated provenance record. International Geology Review, 57: 747-766. https://doi.org/10.1080/00206814.2014.923347 ). In the Iberian Chains at present approximately 2 km thickness of the stratigraphically overlying Carboniferous, Permian and Triassic deposits exist (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.). Therefore, upper Devonian quartz arenite samples from the Iberian Chains are characterized by post-depositional compaction and quartz cementation.
Several diagenetic processes have been distinguished in the samples studied. The development of the diagenetic structures (nodules and concretions) that appear in the Rodanas and Hoya formations, took place within the early diagenetic processes (Torrijo et al., 1998Torrijo, F.J.; Mandado, J.; Sanz, F.J.; Bona, M.E.; Acero, P. & Joven, R.B. (1998). Las concreciones de la Formación Alternancia de Rodanas: Geometría y geoquímica. Revista de la Academia de Ciencias de Zaragoza, 2ª Serie, 53: 331-341., 2000Torrijo, F.J.; Mandado, J.; Sanz, F.J., Bona, M.E. & Acero, P. (2000). Estimación de la profundidad de enterramiento y deformación compactacional asociada, existente durante el crecimiento de concreciones carbonatadas de la Fm. Rodanas, Tabuenca (Zaragoza). Geo-Temas, 1 (3), 303-306., 2001Torrijo, F.J.; Mandado, J.; Acero, P. & Bona, M.E. (2001). Modelización genética de concreciones carbonatadas: Aplicación al Devónico de Tabuenca (Cordillera Ibérica, España). Estudios Geológicos, 57: 115-127. https://doi.org/10.3989/egeol.01573-4131 , 2004aTorrijo, F.J.; Mandado, J. & Bona, M.E. (2004a). Caracterización morfológica de los nódulos silíceos de la Fm. Hoya (Tabuenca, Zaragoza). Implicaciones genéticas. Geo-Temas, 6 (1): 121-123., 2004bTorrijo, F.J.; Mandado, J. & Bona, M.E. (2004b). Estimación del tiempo de crecimiento de las concreciones de la Fm. Rodanas (Tabuenca, Zaragoza). Geo-Temas, 6 (1): 129-131., 2005Torrijo, F.J.; Mandado, J. & Bona, M.E. (2005). Modelización genética de nódulos silíceos: Aplicación al Devónico de Tabuenca (Cordillera Ibérica, España) I. Caracterización morfológica y composicional. Estudios Geológicos, 61: 9-23. https://doi.org/10.3989/egeol.05611-237 ; Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.). As final processes, the presence of concave-convex and sutured contacts between the skeleton constituents can be noted. The presence of iron oxides in these materials is both synsedimentary (indicated by the presence of banding) and properly diagenetic or hydrothermal (presence of hematites associated with crack fillers and epidiagenetic (genesis of Fe and Mn oxides and oxyhydroxides).
The post-depositional quartz cementation produced syntaxial overgrowths. These cements have diverse chemical compositions, indicating that these cements are not genetically linked. Silica sources for cementation in these formations were controlled by the lack of lithic fragments in the rocks and feldspars (e.g. Worden & Morad, 2000Worden, R.H. & Morad, S. (2000) Quartz cementation in oil field sandstones: a review of the key controversies. In: Quartz Cementation in Sandstones (Worden, R.H. & Morad, S., Eds.), IAS Special Publication, 29: 1-20. https://doi.org/10.1002/9781444304237.ch1 ; Caja et al., 2010Caja, M.A.; Marfil, R.; García, D.; Remacha, E.; Morad, S.; Mansurbeg, H.; Amorosi, A.; Martínez-Calvo, C. & Lahoz-Beltrá, R. (2010). Provenance of siliciclastic and hybrid turbiditic arenites of the Eocene Hecho Group, Spanish Pyrenees: implications for the tectonic evolution for a foreland basin. Basin Research, 22: 157-180. https://doi.org/10.1111/j.1365-2117.2009.00405.x ). Therefore, the dissolution of the quartz grains by pressure-dissolution during compaction, or the infiltration of silica-bearing pore fluids from adjacent areas, may be the most likely silica source (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.; Bernet et al., 2007Bernet, M.; Kapoutsos, D. & Basset, K. (2007). Diagenesis and provenance of Silurian quartz arenites in south-eastern New York State. Sedimentary Geology, 201: 43-55. https://doi.org/10.1016/j.sedgeo.2007.04.006 ). Evidences for this process were found in the studied samples.

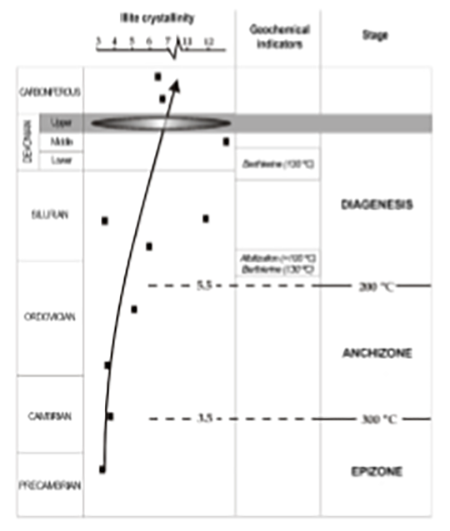

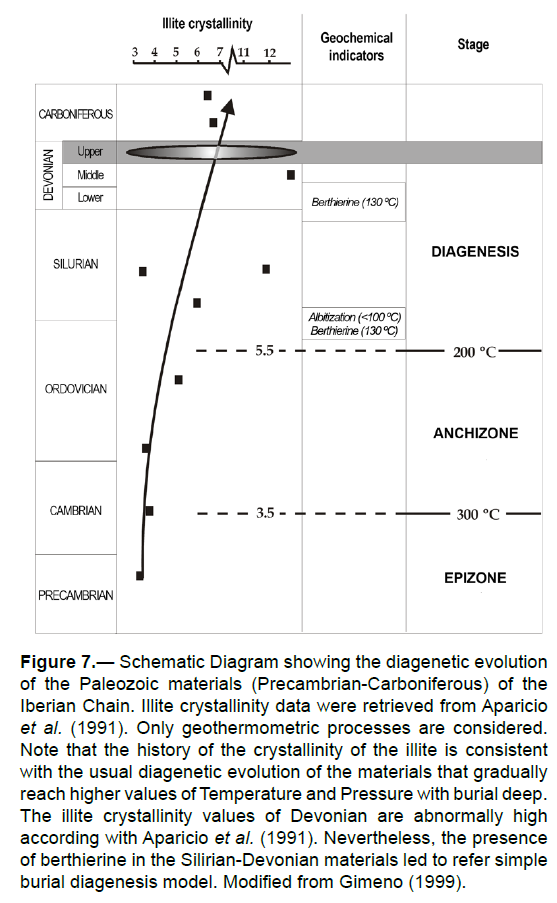

Aparicio et al. (1991)Aparicio, A.; Brell, J.M.; García, R.; Tena, J.M. & Gómez, J. (1991). El metamorfismo de bajo grado en el Paleozoico del sector central de la Cordillera Ibérica. Boletín Geológico y Minero, 102: 735-747. indicate, for the Paleozoic of the Iberian Chains, a progressive decrease in the diagenetic degree reached by the materials from the Precambrian (with values of illite crystallinity index of 3.25) and Cambrian materials (with an crystallinity average value of 3.6) to the Ordovician (with increasing values ranging from 3.8 at the base to 5.2 at the top of the sequence). These cristallinity indexes place the Precambrian rocks in conditions of the epizone; the Cambrian rocks in the Epizone-Anchizone boundary, and the Ordovician rocks in the anchizone conditions.
Similar conclusions are obtained for by Bauluz et al. (1998)Bauluz, B.; Fernández-Nieto, C. & González López, J.M. (1998). Diagenesis-very low grade of clastic Cambrian and Ordovician sedimentary rocks from the Iberian range (Spain). Clay Minerals, 33: 373-393. https://doi.org/10.1180/claymin.1998.033.3.02 in Cambrian-Ordovician rocks of the Iberian Chains. They indicate a gradual evolution from the Epizone-Anchizone limit for Cambrian rocks or to the Anchizone - Diagenesis-Anchizone for the Ordovician rocks. These data would be consistent with a simple model of progrant evolution of the phyllosilicates, being the progressive increase of temperature during the burial the main controlling factor: the oldest materials reach higher depths of burial (i.e. higher temperatures) and are those achieve a more advanced stage in the mineralogical transformation sequence of the phyllosilicates.
The results presented by Aparicio et al. (1991)Aparicio, A.; Brell, J.M.; García, R.; Tena, J.M. & Gómez, J. (1991). El metamorfismo de bajo grado en el Paleozoico del sector central de la Cordillera Ibérica. Boletín Geológico y Minero, 102: 735-747. and Gimeno (1999)Gimeno, M.J. (1999). Estudio del comportamiento geoquímico de las tierras raras en un sistema natural de aguas acidas (arroyo del Val-Bádenas). Tesis Doctoral, Universidad de Zaragoza, 503 pp. for the Silurian of the Iberian Chains would also be consistent with this model: the recorded illite crystallinity indexes and the observed diagenetic processes are typical for an advanced diagenetic environment (Fig. 7). Bescós (1988)Bescós, J.M. (1988). Estudio petrológico de las rocas fosfáticas y litologías asociadas del Silúrico-Devónico de la Depresión del río Cámaras (Zaragoza-Teruel). Tesina, Universidad de Zaragoza, 151 pp. for Silurian-Devonian deposits from the Iberian Chain also indicates an evolutionary stage proper to the diagenetic environment and far away from the conditions of the anchizone.
Therefore, only to be explained the cause of the abnormally high values of the crystallinity of the illite for Lower-Medium Devonian rocks (Aparicio et al., 1991Aparicio, A.; Brell, J.M.; García, R.; Tena, J.M. & Gómez, J. (1991). El metamorfismo de bajo grado en el Paleozoico del sector central de la Cordillera Ibérica. Boletín Geológico y Minero, 102: 735-747.). However, according to their mineralogy (Fig. 7), they would fall within the general pattern of simple burial models. It is therefore reasonable to think that the crystallinity values recorded in the Upper Devonian from Tabuenca area would fall within the ranges defined by the materials placed immediately under and by the overlying materials, always within the diagenetic environment. According to Aparicio et al. (1991)Aparicio, A.; Brell, J.M.; García, R.; Tena, J.M. & Gómez, J. (1991). El metamorfismo de bajo grado en el Paleozoico del sector central de la Cordillera Ibérica. Boletín Geológico y Minero, 102: 735-747., the appearance of prograde or retrograde effects on the degree of crystallinity of the illite from the Devonian rocks is due to the effect of the hydrothermal activity of igneous intrusions (Gimeno, 1999Gimeno, M.J. (1999). Estudio del comportamiento geoquímico de las tierras raras en un sistema natural de aguas acidas (arroyo del Val-Bádenas). Tesis Doctoral, Universidad de Zaragoza, 503 pp.).
As a summary, it can be inferred that the materials constituting the Upper Devonian of the Iberian Chains in the area of Tabuenca did not reached an advanced diagenetic stage. They would be placed in the proper diagenetic environment, reaching maximum temperatures of 125-150ºC (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.).
Source Area Composition
⌅The abundance of trace elements in detritic sedimentary rocks has been commonly used to trace the source area composition (e.g. McLennan et al., 1983McLennan, S.M.; Taylor, S.R. & Kroner, A. (1983) Geochemical evolution of Archean shales from South Africa I. The Swaziland and Pongola Supergroups. Precambriam Research, 22: 93-124. https://doi.org/10.1016/0301-9268(83)90060-8 ; Bhatia, 1985Bhatia, M.R. (1985). Rare earth element geochemistry of Australian Paleozoic graywackes and mudrocks: provenance and tectonic control. Sedimentary Geology, 45: 97-113. https://doi.org/10.1016/0037-0738(85)90025-9 ; Taylor & McLennan, 1989; Wronkiewicz & Condie, 1990Wronkiewicz, D.J. & Condie, K.C. (1990). Geochemistry and mineralogy of sediments from the Vestersdorp and Transvaal Supergroup, South Africa: Cratonic evolution during the early Proterozoic. Geochimica et Cosmochimica Acta, 54: 343-354. https://doi.org/10.1016/0016-7037(90)90323-D ; Shukla et al., 2020Shukla, A.D.; George, B.G. & Ray, J. (2020). Evolution of the Proterozoic Vindhyan Basin, Rajasthan, India: insights from geochemical provenance of siliciclastic sediments. International Geology Review, 62: 153-167. https://doi.org/10.1080/00206814.2019.1594412 ; George & Ray, 2021George, B.G. & Ray, J. (2021). Depositional history of the Mesoproterozoic Chhattisgarh Basin, central India: insights from geochemical provenance of siliciclastic sediments. International Geology Review, 63: 380-395. https://doi.org/10.1080/00206814.2020.1712557 ). In this sense, for the case of the rocks studied, the triangular diagrams La-Th-Sc and Th-Hf-Co have been chosen. And besides, to calculate the approximate percentage of felsic and maphic volcanic rocks in the source area, a Co/Th vs. La/Sc diagram has been used (McLennan et al., 1983McLennan, S.M.; Taylor, S.R. & Kroner, A. (1983) Geochemical evolution of Archean shales from South Africa I. The Swaziland and Pongola Supergroups. Precambriam Research, 22: 93-124. https://doi.org/10.1016/0301-9268(83)90060-8 ; McLennan, 1989McLennan, S.M. (1989) Rare earth elements in sedimentary rocks. Influence of provenance and sedimentary processes. In: Geochemistry and Mineralogy of Rare Earth Elements (Lipin, B.R. & McKay, G.A., Eds.), Mineral Society American: 169-200. https://doi.org/10.1515/9781501509032-010 ).

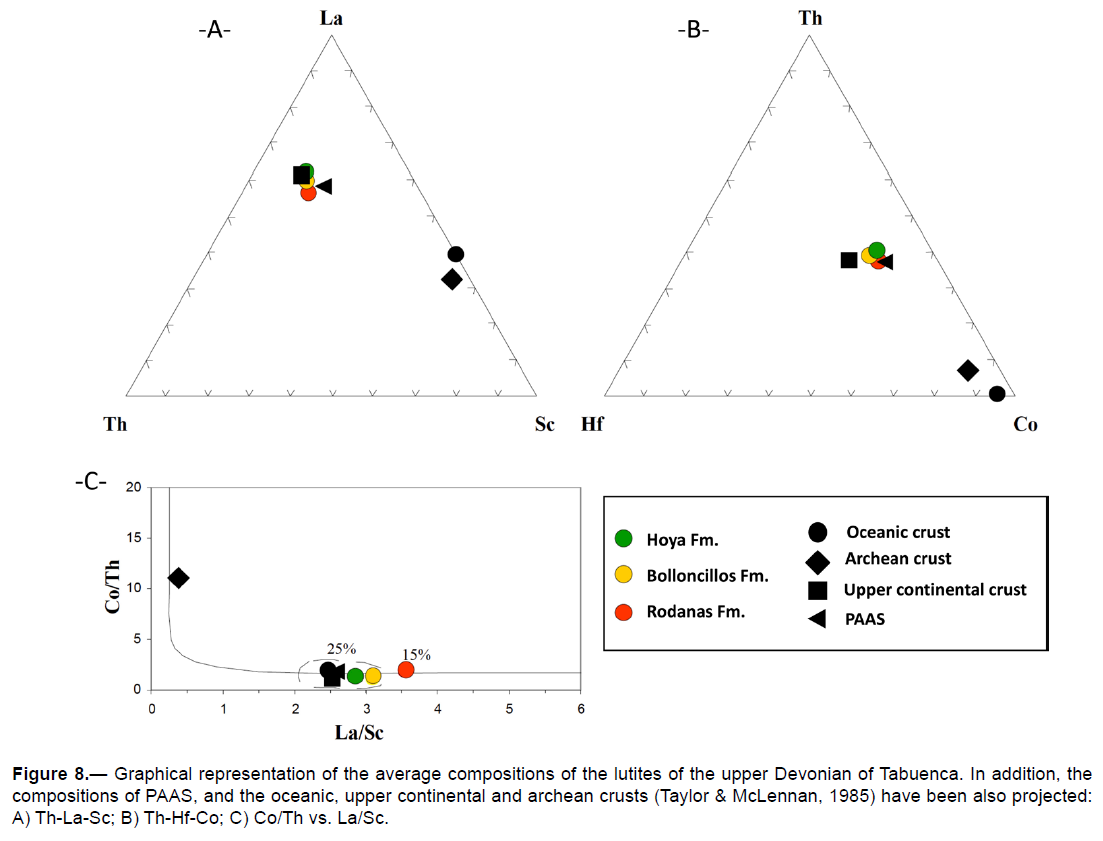

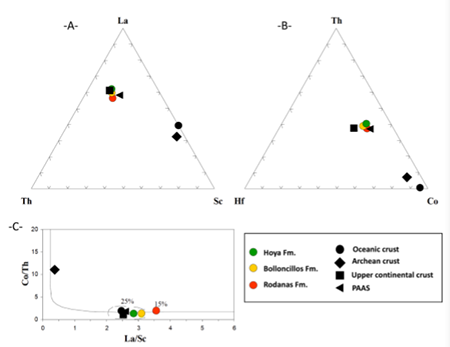

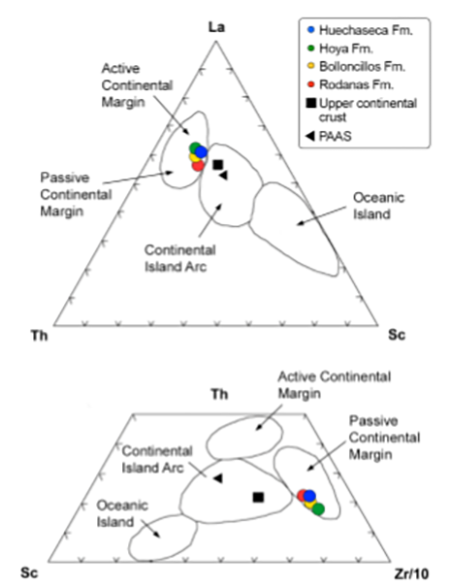

The results suggest that the lutites are similar to the PAAS-type slates, which would indicate that their composition would be similar to that of the upper continental crust. Therefore, the primitive source area would be predominantly of a felsic type. Besides, the lutites of the Fm. Rodanas could come from source areas where the maphic material represented about the 15% of the constituents, while in the more recent formations (Bolloncillos Fm. and Hoya Fm.) the proportion increases up to the 25% (Fig. 8).
Detritic Rocks Provenance and Paleoclimate

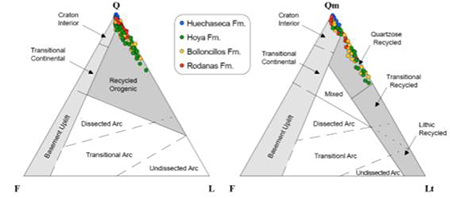

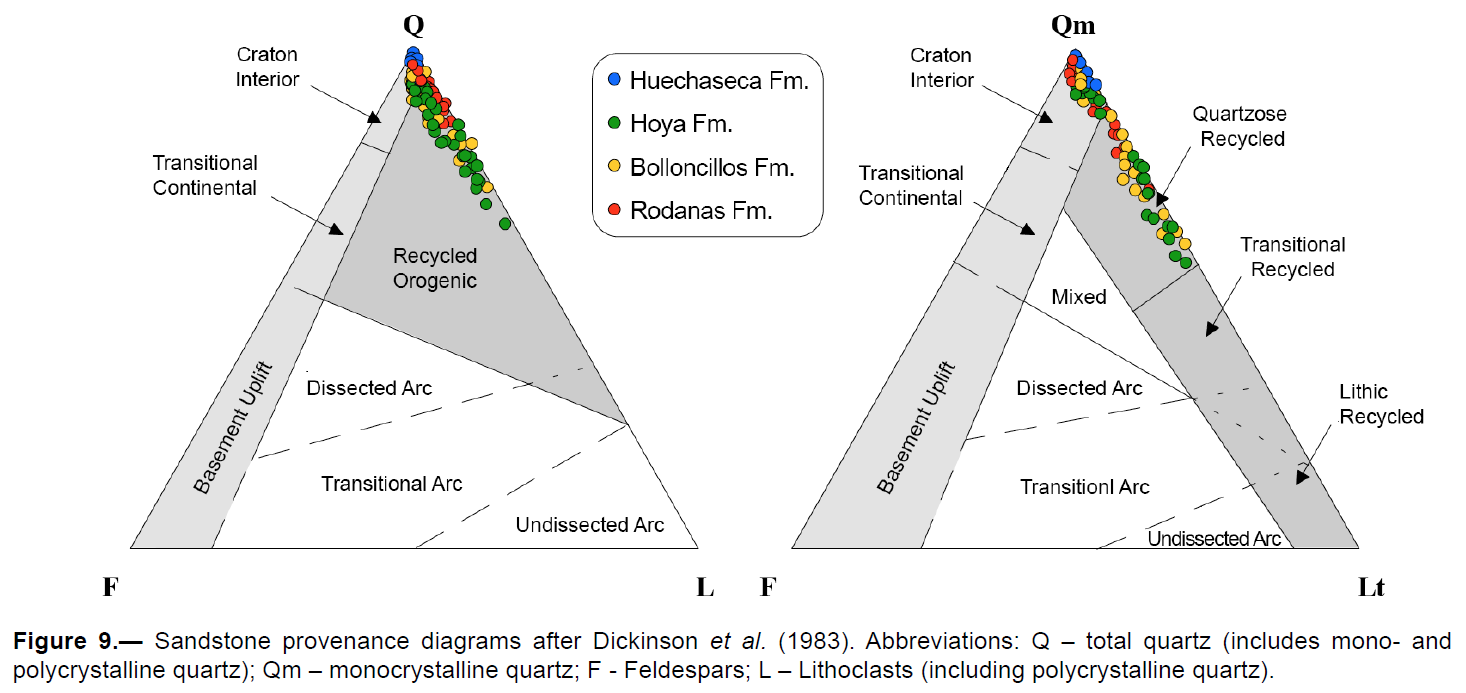

⌅The arenites of the Rodanas and the Huechaseca formations are composed of mono- and rare polycrystalline quartz (total quartz > 90%). Silicate minerals (muscovite, tourmaline, zircon, potassium feldspar), apatite grains and rock fragments grains are scarce, as well as no plagioclase grains were observed. This composition corresponds that of sediments derived from recycled orogenic or craton interior sources according to Dickinson et al. (1983)Dickinson, W.R.; Beard, S.L.; Brakenridge, G.R.; Erjavec, J.L.; Ferguson, R.C.; Inman, K.F.; Knepp, R.A.; Lindberg, F.A. & Ryberg, P.T. (1983). Provenance of North American Phanerozoic sandstones in relation to tectonic setting. Geological Society of America Bulletin, 94: 222-235. https://doi.org/10.1130/0016-7606(1983)94<222:PONAPS>2.0.CO;2 . On the other hand, the arenites of Bolloncillos and the Hoya Formations have a sand-sized framework composed of mono- and polycrystalline quartz (total > 75%). Feldspar grains are scarce, and no plagioclase grains were observed. However, muscovite, tourmaline, zircon and apatite are more abundant than in the Rodanas and in the Huechaseca formations. These compositions (Fig. 9) are typical from craton interior or recycled orogenic sources (Dickinson et al., 1983Dickinson, W.R.; Beard, S.L.; Brakenridge, G.R.; Erjavec, J.L.; Ferguson, R.C.; Inman, K.F.; Knepp, R.A.; Lindberg, F.A. & Ryberg, P.T. (1983). Provenance of North American Phanerozoic sandstones in relation to tectonic setting. Geological Society of America Bulletin, 94: 222-235. https://doi.org/10.1130/0016-7606(1983)94<222:PONAPS>2.0.CO;2 ).
In this way, primary source areas of the siliciclastic materials from the upper Devonian formations are located to the Northeast (Oliveira et al., 1986Oliveira, J.T.; García-Alcalde, J.L.; Liñan, E. & Truyols-Massoni, J. (1986). The Famennian of the Iberian Peninsula. Annales de la Société Géologique de Belgique, 11: 159-174.) and are part of a crystalline basement and quartz-rich sedimentary cover units (the Ebro Massif, see Carls, 1983Carls, P. (1983). La zona Asturoccidental-Leonesa en Aragón y el Macizo del Ebro como continuación del Macizo Cantábrico. In: Libro Jubilar J. M. Ríos, I.G.M.E., 3, 11-32., 1999Carls, P. (1999), El Devónico de Celtiberia y sus fósiles. In: 25 años de Paleontología Aragonesa, Homenaje al Prof. Leandro Sequeiros (Gámez-Vintaned, J.A. & Liñán, E., Eds.) Memorias de las VI Jornadas Aragonesas de Paleontología, Ricla, 101-164.). Given that no plutonic rocks were exposed in this area during the Devonian (Gozalo & Liñan, 1988Gozalo, R. & Liñan, E. (1988). Los materiales hercínicos de la Cordillera Ibérica en el contexto del Macizo Ibérico. Estudios Geológicos, 44: 399-404. https://doi.org/10.3989/egeol.88445-6556 ; Carls, 1999Carls, P. (1999), El Devónico de Celtiberia y sus fósiles. In: 25 años de Paleontología Aragonesa, Homenaje al Prof. Leandro Sequeiros (Gámez-Vintaned, J.A. & Liñán, E., Eds.) Memorias de las VI Jornadas Aragonesas de Paleontología, Ricla, 101-164.), it seems probable that the quartz grains were second-cycle grains derived from sedimentary rocks which could have lost their inherited quartz overgrowths by abrasion during transport. The few available lithic fragments found in these sediments also reflect a combination of crystalline basement and sedimentary sources (Arribas et al., 2014Arribas, J.; González-Acebrón, L.; Omodeo-Salé, S. & Mas, R. (2014). The influence of the provenance of arenite on its diagenesis in the Cameros Rift Basin (Spain). In: Sediment Provenance Studies in Hydrocarbon Exploration and Production (Scott, R.A.; Smyth, H.R.; Morton, A.C. & Richardson, N., Eds.), Geological Society of London, Special Publication, 386: 63-73. https://doi.org/10.1144/SP386.12 ; Konstantinou et al., 2014Konstantinou, A.; Wirth, K.R.; Vervoort, J.D.; Malone, D.H.; Davidson, C. & Craddock, J.P. (2014). Provenance of Quartz Arenites of the Early Paleozoic Midcontinent Region, USA. The Journal of Geology, 122: 201-216. https://doi.org/10.1086/675327 ). Sediment recycling in upper Devonian materials of the Iberian Chains was also suggested by Bauluz (1997)Bauluz, B. (1997). Caracterización mineralógica y geoquímica de materiales detríticos precámbricos y paleozoicos de las Cadenas Ibéricas: evolución post-sedimentaria. Tesis Doctoral, Universidad de Zaragoza, 341 pp. and Torrijo (2003)Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp..

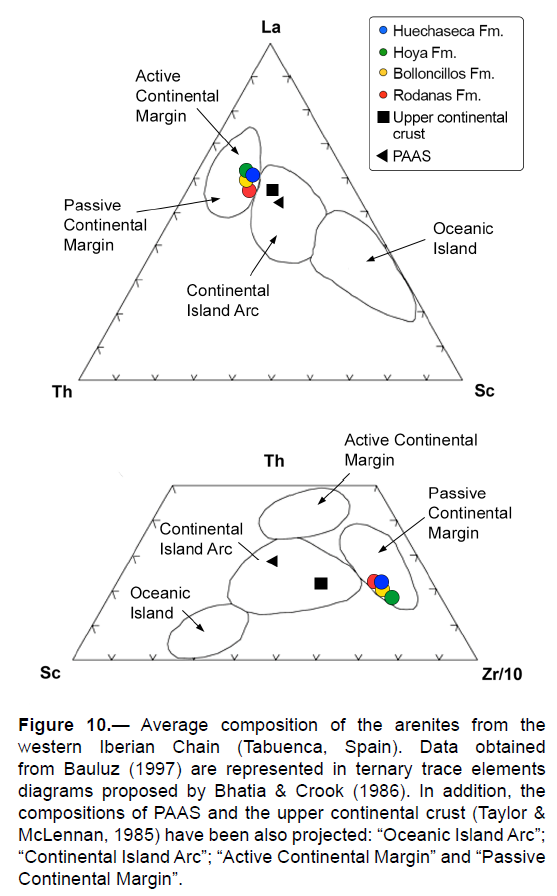

All the arenites of these above-mentioned formations are coastal sediments (Fig. 10) derived from quartz-rich sources. The most likely candidate to explain the high maturity of the studied arenites is a climatic influence (Torrijo, 2003Torrijo, F. J. (2003). Modelización genética de nódulos y concreciones en el Devónico superior de Tabuenca (Provincia de Zaragoza). Tesis Doctoral, Universidad de Zaragoza, 393 pp.). Currently, it is considered that, from Cambrian to Devonian ages, with the exception of the South Portuguese Zone that probably belonged to Avalonia, the whole Iberian Peninsula was part of the North Gondwana Province that extended along the northern margin of the African part of the Gondwana landmass (Gutiérrez-Marco et al., 2001Gutiérrez-Marco, J.C.; Sarmiento, G.N.; Robardet, M., Rábano, I. & Vanek, J. (2001). Upper Silurian fossils of Bohemian type from NW Spain and their palaeographical significance. Journal of the Czech Geological Society, 46: 161-172., and references therein). Thereby, the latitudinal position of the present Iberian can thus be estimated only roughly as intermediate between the rather warm or cold temperature of high latitudes (ca. 50ºS) of the latest Ordovician times, and the warmer temperatures of the subtropical latitudes (ca. 35ºS) of the Devonian succession (Robardet & Gutiérrez-Marco, 2002Robardet, M. & Gutiérrez-Marco, J.C. (2002). Silurian. In: Geology of Spain. (Gibbsons, W. & Moreno, T., Eds.), Geological Society of London, London, 51-66. https://doi.org/10.1144/GOSPP.5 ), with a high rainfall regime and high mean-annual temperatures. So, these climatic conditions may have led to a rapid weathering and breakdown of unstable rock fragments during transport, deposition and along the early diagenesis, enriching the sediments in quartz grains (Basu, 1985aBasu, A. (1985a). Influence of climate and relief on compositions of sands released at source areas. In: Provenance of Arenites (Zuffa, G.G., Ed.), Reidel, Dordrecht, 1-18. https://doi.org/10.1007/978-94-017-2809-6_1 , bBasu, A. (1985b). Reading provenance from detrital quartz. In: Provenance of Arenites (Zuffa, G.G., Ed.), Reidel, Dordrecht, 231-249. https://doi.org/10.1007/978-94-017-2809-6_11 ).
Conclusions
⌅A geological characterization of the Upper Devonian siliciclastic formations of Tabuenca area (Iberian Chains, Spain) was conducted, studying their provenance and diagenesis. Results show that these materials are mainly composed of quartz-rich sediments that have experienced intense weathering before and during their deposition and posteriorly, underwent alteration, compaction, and quartz cementation during diagenesis. No primary porosity was recorded in the quartz arenites of any unit, and the development of secondary porosity was rare. Sand-sized grains of the Hoya Formation samples were mostly angular to sub-rounded, while most of the sand-sized grains of the Rodanas, Bolloncillos and the Huechaseca formations samples exhibited higher textural maturity, were mainly sub-rounded to rounded in shape, and showed concave-convex to sutured grain contacts. The majority of sand grains in the studied samples were regarded to be of plutonic origin. Quartz grains of potential volcanic affinity are almost exclusively restricted to the finest sand-sized fraction of the samples. All samples show evidence of quartz cementation after deposition.
Several diagenetic processes have been distinguished in the samples studied. Thus, the presence of concave-convex and sutured contacts between the skeleton constituents can be noted. Besides, the presence of iron oxides in these materials is both synsedimentary and properly diagenetic or hydrothermal:
-
Upper Devonian quartz arenite samples from the Iberian Chains are characterized by post-depositional compaction and quartz cementation. The dissolution of the quartz grains by pressure-dissolution during compaction, or the infiltration of silica-bearing pore fluids from adjacent areas, may be the most likely silica source. The post-depositional quartz cementation produced syntaxial overgrowths.
-
It can be inferred that the materials constituting the Upper Devonian of the Iberian Chains in the area of Tabuenca did not reached an advanced diagenetic stage. They would be placed in the proper diagenetic environment, reaching maximum temperatures of 125-150ºC.
-
The results suggest that the lutites are similar to the PAAS-type slates, which would indicate that their composition would be similar to that of the upper continental crust. Therefore, the primitive source area would be predominantly of a felsic type. Besides, the lutites of the Fm. Rodanas could come from source areas where the maphic material represented about the 15% of the constituents, while in the more recent formations (Bolloncillos Fm. and Hoya Fm.) the proportion increases up to the 25%.
-
Primary source areas of the siliciclastic materials from the upper Devonian formations are located to the Northeast and are part of a crystalline basement and quartz-rich sedimentary cover units (the Ebro Massif). It seems probable that the quartz grains were second-cycle grains derived from sedimentary rocks which could have lost their inherited quartz overgrowths by abrasion during transport.
-
In this way, all the arenites studied are coastal sediments derived from quartz-rich sources. The most likely candidate to explain the high maturity of the studied arenites is a climatic influence. Thereby, the latitudinal position of the present Iberian can thus be estimated only roughly as intermediate between the rather warm or cold temperature of high latitudes (ca. 50ºS) of the latest Ordovician times, and the warmer temperatures of the subtropical latitudes (ca. 35ºS) of the Devonian, with a high precipitation regime and high mean-annual temperatures.
