LP-HT anatectic processes and lithological heterogeneity in the Mindelo Migmatite Complex (NW Portugal)
Procesos anatécticos (LP-HT) y heterogeneidad litológica en el Complejo Migmatítico de Mindelo (NW Portugal)

M. Areias¹, M.A. Ribeiro¹, J.F. Santos², A. Dória¹

¹ Centro Geologia da Universidade do Porto. Email: mariaareias@fc.up.pt.com

² Geobiotec, Dep. Geociências. Universidade de Aveiro

IntroductionTOP

The Mindelo Migmatite Complex (MMC) is a migmatite massif associated with a syn-orogenic granite in the western border of the Central Iberian Zone (CIZ), the axial zone of the Iberian Variscan Orogen (Fig. 1A). In the Variscan Belt the metamorphism occurred mostly under low pressure and high temperature (Martínez et al., 2001; Valle Aguado et al., 2005; Ribeiro et al., 2008; Catalán et al., 2014). In CIZ the high-grade rocks, belonging mainly to the Schist-Greywacke Complex (SGC), are associated with peraluminous granitic plutons and anatectic complexes, materializing thermal domes developed in a late stage of the Variscan Orogeny (Escuder Viruete et al., 1994; Martínez et al., 2001; Bea et al., 2003; Valle Aguado et al., 2005; Ribeiro et al., 2008; Catalán et al., 2014). The association of amphibolite facies metamorphic rocks with migmatites grading into granitic rocks has been described in different sectors of the Iberian Variscan Belt (Pereira & Bea, 1994; Barbero & Villaseca, 1995; Valle Aguado et al., 2010). The MMC is one of these migmatite complexes.

This paper aims to infer the protolith and sequence of anatexis processes that gave rise to the migmatization and production of various granitic rocks that crop out in Mindelo Migmatitic Complex based on field relationships, petrography, geochemistry and isotopic signature.

Geological settingTOP

The Central Iberian Zone (CIZ), the axial zone of the Iberian Variscan Orogen represents a piece of the external margin of northern Gondwana, involved in the Paleozoic collision with Laurentia after the closure of the Rheic Ocean (Ribeiro et al., 2007 and references therein). In the Iberian Variscan Belt the main deformation phase (D₁) affected all the pre-Carboniferous sedimentary sequences and produced NW–SE sub-vertical folds with an axial planar slaty cleavage or schistosity. This is the main foliation observed in the field. Continuous to D₁ a second deformation phase (D₂) manifests mainly through movements along the base of sub-horizontal major thrusts (Noronha et al., 1979; Noronha et al., 2000). These events were followed by a predominantly extensional phase, named D₂ by some authors (Valle Aguado et al., 2005) that allowed anatexis in the middle crust and segregation of magmas. These anatectic magmas rise at the beginning of D₃ leading to the emplacement of large volumes of peraluminous granites (Noronha et al., 1979; Casquet et al., 1988; Escuder Viruete, et al., 1994; Díez Balda et al., 1995; Ábalos et al., 2002; Azevedo & Valle Aguado, 2013). D₃ produced asymmetric, kilometric-scale sub-vertical folds with NW–SE to NNW– SSE axial planes. These folds commonly show a poorly developed axial planar crenulation cleavage and vertical or steeply plunging axes (Noronha et al., 1979; Ribeiro et al., 2008; Romão et al., 2013). A complex D₃ strike-slip shear zone network was active and reactivated for a long time, during and after the variscan collision. These shear zones controlled the fluid-flow that had an important role in metamorphic, metasomatic and metallogenetic processes (Noronha et al., 2000, 2013).

The MMC is situated on the northeast part of Porto-Viseu metamorphic belt (Azevedo & Valle Aguado, 2013). This NW-SE antiformal megastructure has a core composed by syntectonic anatectic granites intimately associated with HT-LP migmatites: MMC in the area under study and Mundão Anatectic Complex near Viseu (Valle Aguado et al., 2010) (Fig. 1). Towards the flanks the metamorphic grade decreases rapidly.

The magmatic activity that prevailed during the variscan orogenic cycle developed along different deformational stages. Thus, the magmatic rocks mainly represent orogenic granitoids, which are defined according to different age groups. In recent years both geochronological and structural data point to the definition of several intrusion times for iberian granitic rocks, which can be divided in three major groups: pre-orogenic granites, orogenic granites and post-orogenic granites (Ferreira et al., 1987; Díez Balda et al., 1995; Valle Aguado et al., 2005; Martins et al., 2011; Azevedo & Valle Aguado, 2013) (Fig. 1B). According to their chemical and mineralogical composition, the variscan granitoids can be grouped into two families: peraluminous, two-mica granites and leucogranites and biotite (± Crd ± Hnb) granodiorites. The widespread occurrence of Crd-bearing granites has led some petrologists to suggest an intermediate series or family of “granites of mixed features” (Capdevila et al., 1973; García-Moreno et al., 2007). Most of leucogranites are related to the principal metamorphic episodes and their emplacement is associated with the last deformation phase (D₃) and the development of ductile extensional shear zones (Ferreira et al., 1987; Escuder Viruete et al., 1994; Díez Balda et al., 1995; Valle Aguado et al., 2005; Azevedo & Valle Aguado, 2013). They are spatially related to low-pressure, high-temperature anatectic domains. Bt-rich granodiorites are mainly late with respect to the main deformation phases and are associated with strike slip faults and crustal-scale shear zones (Casquet et al., 1988; Martins et al., 2011).

Several authors and the published geological maps (Teixeira & Medeiros, 1965; Pereira et al., 1992) ascribe the MMC metasedimentary rocks to the Schist Greywacke Complex (SGC). The Schist-Greywacke Complex is a thick turbidite sequence aged Ediacaran to Cambrian that occupies the major part of the Central Iberian Zone. Two main units have been recognized: a lower unit aged Ediacaran and an upper unit aged Early Cambrian (Valladares et al., 2000; Ugidos et al, 2010; Pereira et al., 2012). In Portugal these two units were nominated Beiras Group (BG) and Douro Group (DG) respectively (Sousa, 1984) (Fig. 1).

Very low to low-grade metamorphism prevails in wide areas of the Schist-Greywacke Complex, except in the vicinity of the syntectonic anatectic granites, where the field gradient is marked by condensed isograds. These isograds are parallel to the granite bodies, ranging in a short distance from chlorite to sillimanite zone (Ribeiro et al., 2008) prevailing moderate to low-P metamorphic conditions.

Rock types and field relationships in the Mindelo Migmatite ComplexTOP

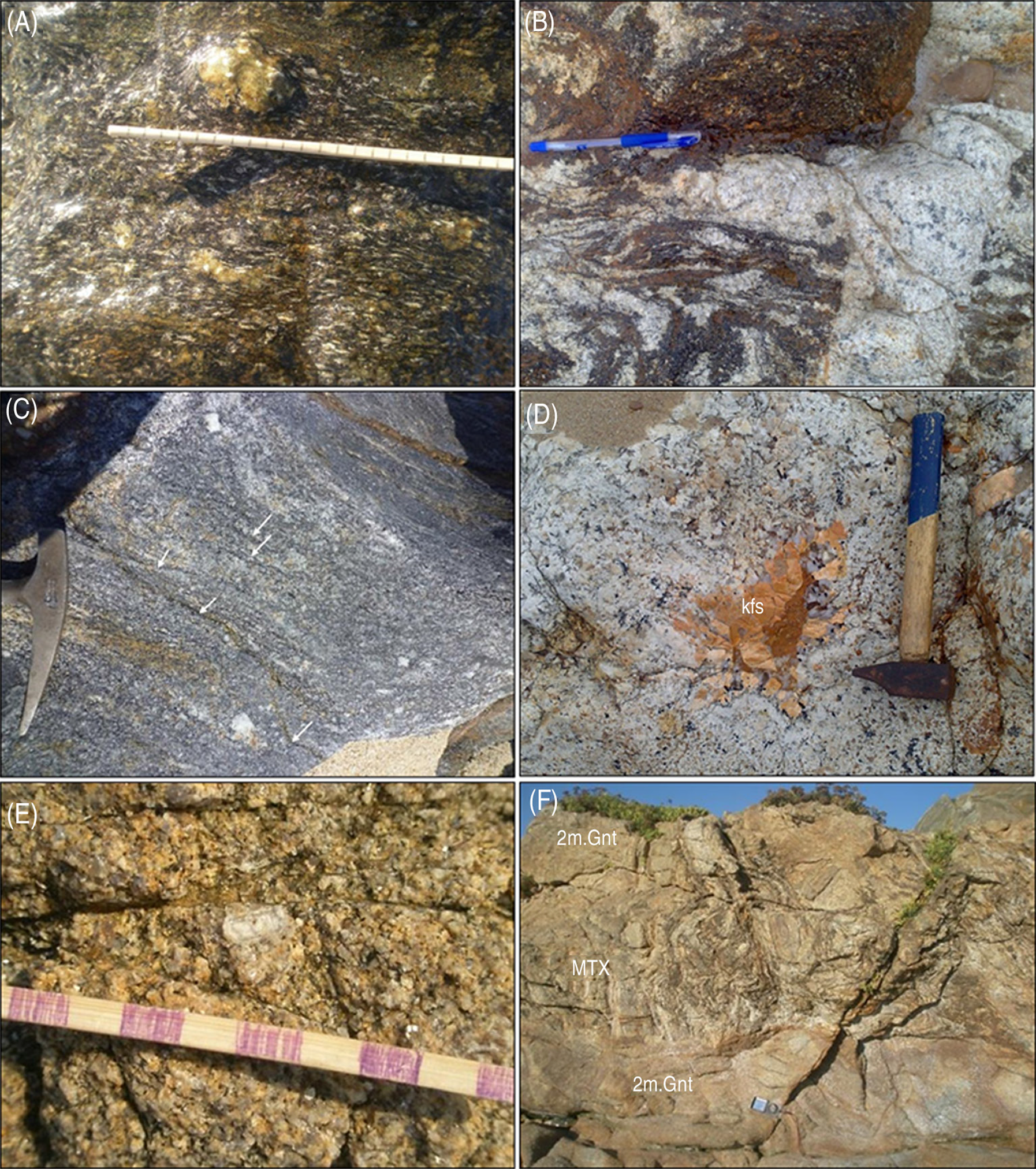

In the Mindelo Migmatite Complex appear distinct lithologies, both of sedimentary and magmatic origin, namely: patch metatexites, banded metatexite, diatexites, metagreywacke and calc-silicate resisters, leucogranites, two-mica granites and aplite-pegmatites. The unmigmatized rocks from the Schist Greywacke Complex surrounding MMC were also studied in order to understand their relationship with the migmatites.

Schist-greywacke Complex MetasedimentsTOP

The Schist-Greywacke Complex in the vicinity of the MMC is composed essentially by alternating metapelites and metagreywackes (some of them with calc-silicate nodules), varying in thicknesses from centimetric to metric (with metapelite in higher proportion) (Areias et al., 2012). The main cleavage observed in the field is related to the D₁ deformation phase. From east to west the metamorphic grade increases from chlorite to biotite, staurolite and sillimanite zones passing gradually to migmatites (Fig. 1C). In this paper we have studied the staurolite-schists in the vicinity of MMC (Aguçadoura, Fig. 1C) and the staurolite-schists from Fânzeres, some kilometres to the southeast (Fig. 1B).

These rocks show biotite-rich bands and quartz-plagioclase-rich bands. Large poikilitic staurolite crystals include euhedral garnet, ilmenite and round quartz. Late andalusite and cordierite develops in the biotite-rich bands. A retrograde paragenesis is marked by chlorite replacing garnet and muscovite/sericite replacing plagioclase, biotite, andalusite, staurolite and cordierite. There are abundant late tourmaline and apatite.

The Aguçadoura staurolite-schists are closer to the granites and their paragenesis is richer in late andalusite and cordierite than that of staurolite-schists from Fânzeres. The adjacent granites have abundant xenoliths of schists.

Patch and banded metatexitesTOP

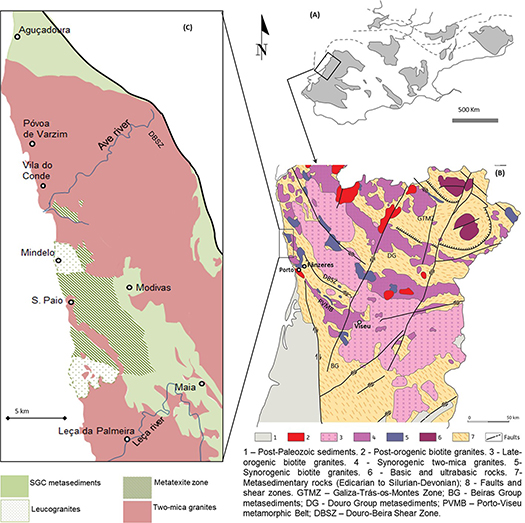

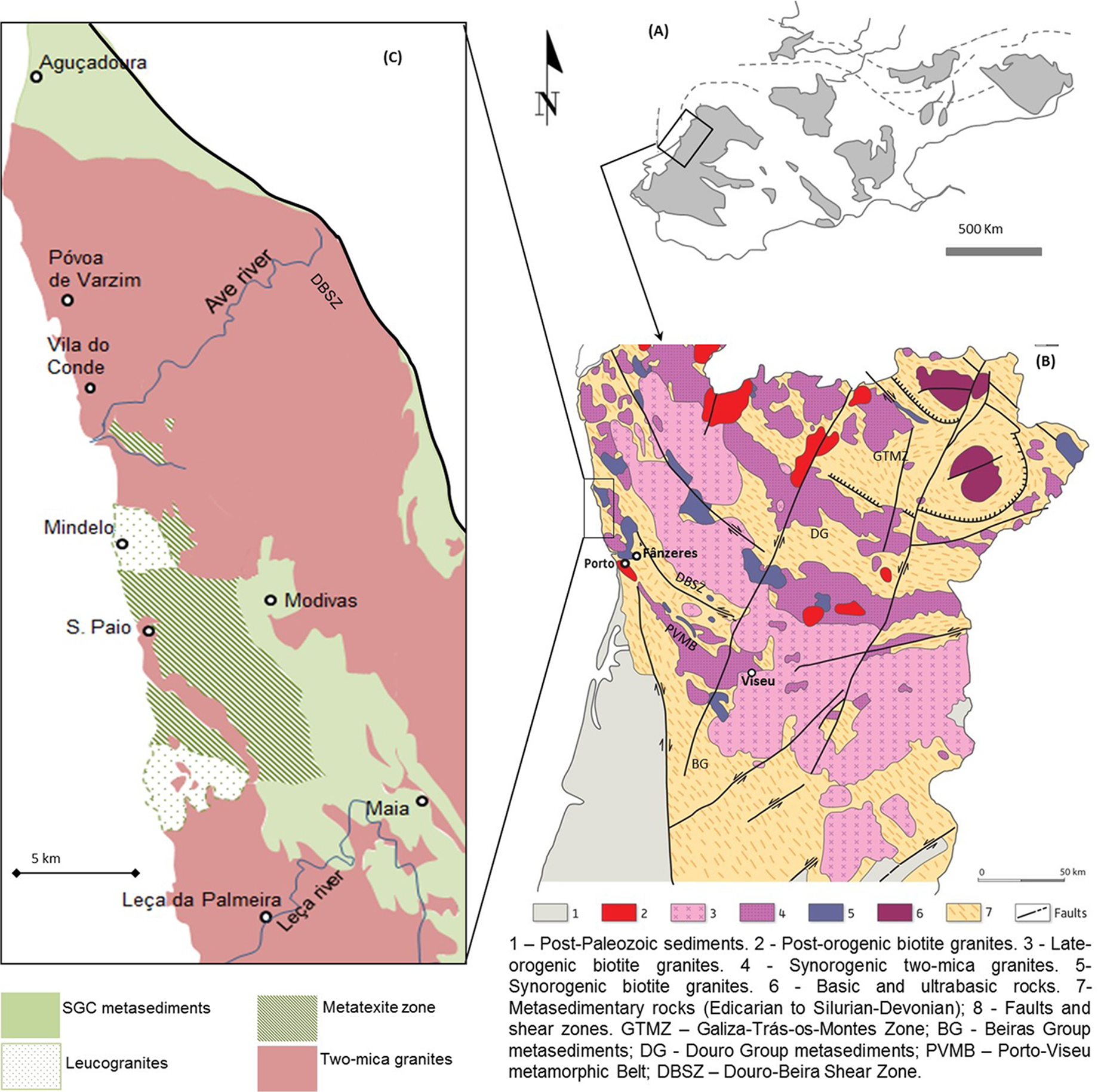

Patch migmatites and banded metatexites outcrop in the central part of the MMC, designated Metatexite Zone (Fig. 1C). Patch migmatites (PMM) dominated by paleosome, are characterized by the occurrence of small scattered patches of neosome resulting from discrete partial melting (Fig. 2A). Patch migmatites are rare and occur always associated with thick metagreywacke resisters layers that inhibit more widespread partial melting in these rocks.

Banded migmatites (BMM) where the neosome portion increases show a roughly dark and light layered structure generally concordant with the main regional cleavage (S₁). Most of them consist of discrete discontinuous centimetric-thick layers of medium grained leucosomes alternating with millimetric to centimetric thick biotite and sillimanite-rich melanosomes (Fig. 2B).

Leucosomes are coarse grained, white-pink coloured and can be classified using a two-fold division based on relationships with surrounding banded metatexites – they are either concordant or discordant to local foliation. Concordant leucosomes are in petrographic continuity with discordant leucosomes (with similar microstructure and mineralogy) (Fig. 2B). Leucosome filled shear zones and leucosomes parallel to axial surfaces of D₃ folds are common.

The migmatite leucosomes materialize folds correlated to the D₃ dextral transcurrent shear zones, but these leucosomes do not show solid-state deformation.

The melanosomes show anastomosed foliation marked by aligned biotite and sillimanite. They contain biotite + sillimanite + garnet + quartz + oligoclase + cordierite + secondary muscovite. Zircon, monazite, apatite and ilmenite are widespread accessory minerals. Garnet is fully or partially replaced by cordierite + quartz + sillimanite and is restricted to melanosomes. Biotite shows symplectitic textures, anhedral shape and is replaced by cordierite, K-feldspar or quartz. Most of the cordierite is located in the boundary between melanosome and leucosome.

Leucosomes show large quartz + plagioclase ± K-feldspar crystals. These large crystals include small grains of anhedral or rounded quartz, plagioclase, biotite and accessory minerals. Fragments of melanosome are entrained in the leucosome. There are melanocratic selvedges with biotite + cordierite + sillimanite ± garnet surrounding the patch leucosomes (Fig. 2A).

The K-feldspar is very rare in patch migmatites and in some banded migmatites (in some of them was detected only in backscattered images) and is always replacing plagioclase. It is possible to find metatexites without any K-feldspar crystal close to K-feldspar bearing metatexites less than 3 m away from each other. It is noteworthy that the calc-silicate resisters in metatexites without K-feldspar show no replacement textures or mineralogy; however, those inserted in K-feldspar bearing migmatites show obvious signs of local retrograde replacement (Areias et al., 2012).

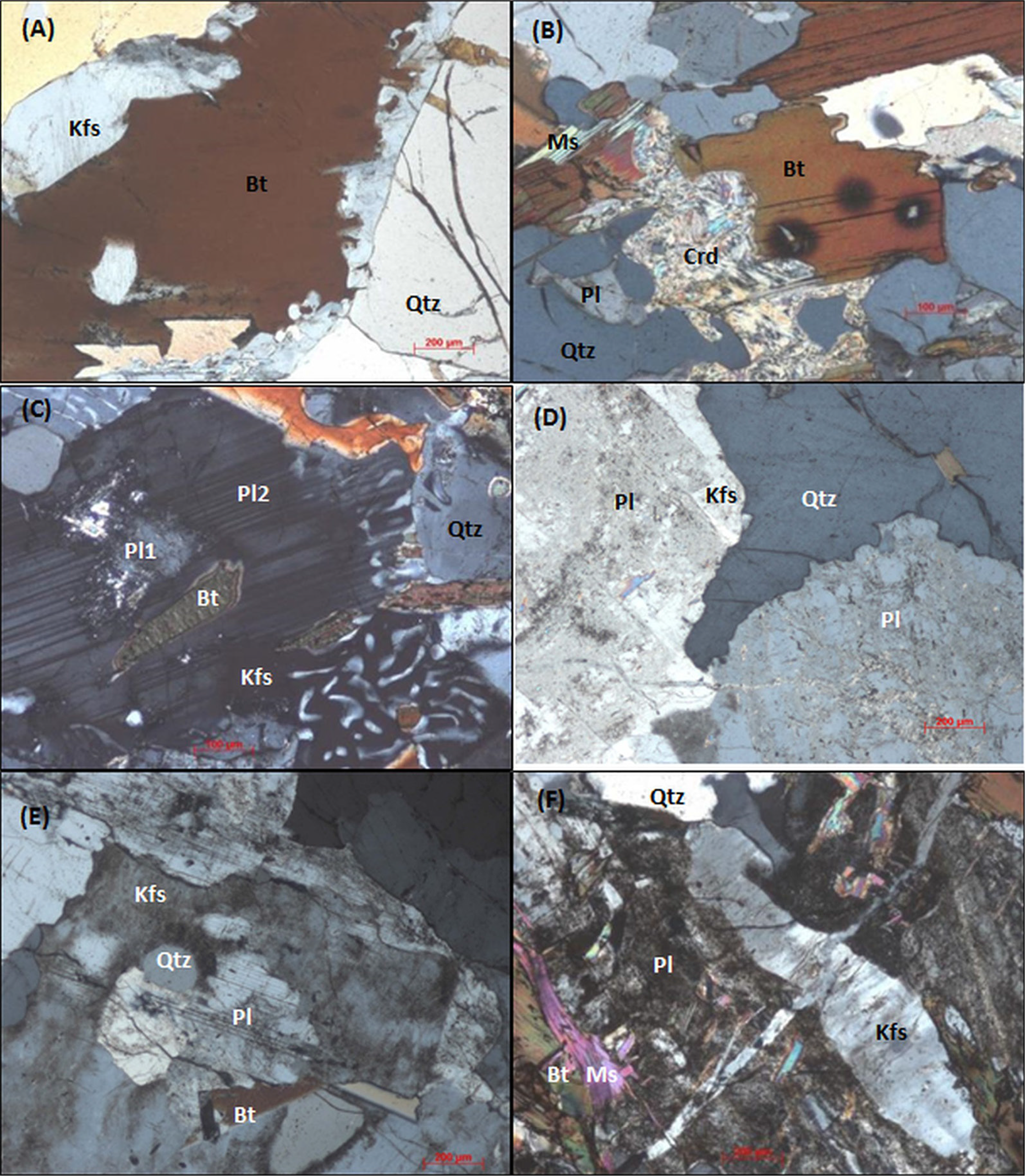

Both, leucosomes and melanosomes show several textures typical of partial melting, namely magmatic microstructures in leucosomes (Fig. 3), quartz or K-feldspar films surrounding the biotite grains (Figs. 3A and 3B), magmatic rims on subsolidus cores of grains (e.g. magmatic rims of plagioclase₂ and K-feldspar enclosing anhedral remnant plagioclase₁) (Fig. 3C), presence of peritectic cordierite (Fig. 3B) and plagioclase, quartz and K-feldspar cuspate grains (Fig. 3D).

DiatexitesTOP

Diatexites (DTX) show a magmatic texture and pre-partial-melting structures are generally absent. They are mesocratic although with colour variations. Several biotite schlieren stand out as dark alignment within the rock (Fig. 2C). Diatexites crop out within the metatexite both as bodies with few tens of square meters and as metric thick veins cutting metatexites. In both cases the contact between diatexites and metatexites is abrupt.

Diatexite matrix consists of medium grained quartz + plagioclase + K-feldspar + biotite. The schlieren that are the melt-depleted remains of pelitic layers are composed of aligned biotite + sillimanite + cordierite ± garnet. The amount of accessory minerals such as monazite, zircon and apatite is relatively high. The garnet is rare, anhedral and corroded and it is always associated with the schlieren. The diatexites show similar mineral composition and mineral relations to the banded metatexites, although they have much higher leucosome/melanosome ratio.

LeucograniteTOP

The leucogranites (L.Gnt) crop out immediately north and south of migmatites where appear as bodies with several tens of square meters, but they also occur as veins cutting the metasedimentary sequence (SGC) in the vicinity of the migmatite complex. They are characterized by its whitest colour and scarcity of biotite or other dark minerals. The rare biotite and sillimanite usually are clustered in spots. The field appearance is very similar to most of the leucosomes although peritectic cordierite, abundant in the in situ leucosomes and diatexites is absent in leucogranite. The transition of metatexites to leucogranites is gradual: the proportion of melanosome gradually decreases from metatexites with melanosome dominant to leucogranites with abundant restites and leucogranites with few clusters of biotite and sillimanite. Unlike the diatexites and two-mica granites have sharp contact with the metatexites.

Leucogranite are composed of quartz + plagioclase + biotite ± K-feldspar ± garnet ± muscovite (sec.) ± chlorite (sec.). Garnet is very sporadic, corroded and fine grained and its composition is quite similar to the composition of garnet in schists and melanosomes. These features suggest a restitic character of the garnet crystals and the same is pointed for biotite and sillimanite in clusters. Biotite and garnet are replaced by chlorite and muscovite. Locally the biotite clusters disappear and instead there are tourmaline + K-feldspar + quartz symplectitic clusters with the same texture and structure as the biotite clusters, forming tourmaline bearing leucogranites (TL.Gnt).

Like leucosomes, there are leucogranites with abundant K-feldspar and leucogranites with rare K-feldspar. In fact, all the leucosome and leucogranite samples with K-feldspar show textural evidence of plagioclase replacement by K-feldspar, namely K-feldspar with plagioclase cores (Fig. 3E), plagioclase inclusions in K-feldspar which are in parallel optical continuity with a plagioclase crystal outside the K-feldspar, microfractures filled with K-feldspar (Fig. 3F) and development of large crystals of K-feldspar in miarolitic cavities (Fig. 2D).

Two-mica granitesTOP

Two-mica granites (2m.Gnt) crop out north, south and east of leucogranites and migmatites and also as smaller bodies (hundred square meters) within migmatites (Fig. 2E). There are several granitic dikes and veins, generally fine-grained or porphyritic that cut the migmatites and even the metasedimentary sequence in the vicinity of migmatites. The two-mica granite bodies include fragments (xenoliths) of metagreywacke and calc-silicate resisters as well as metatexites (Fig. 2F).

They are composed of quartz + plagioclase + K-feldspar + biotite + muscovite + apatite + zircon + monazite ± andalusite ± tourmaline. Some of them still have rare aligned schlieren with biotite + sillimanite ± garnet. Tourmaline only occurs locally and most of muscovite, although abundant, is secondary.

GeochemistryTOP

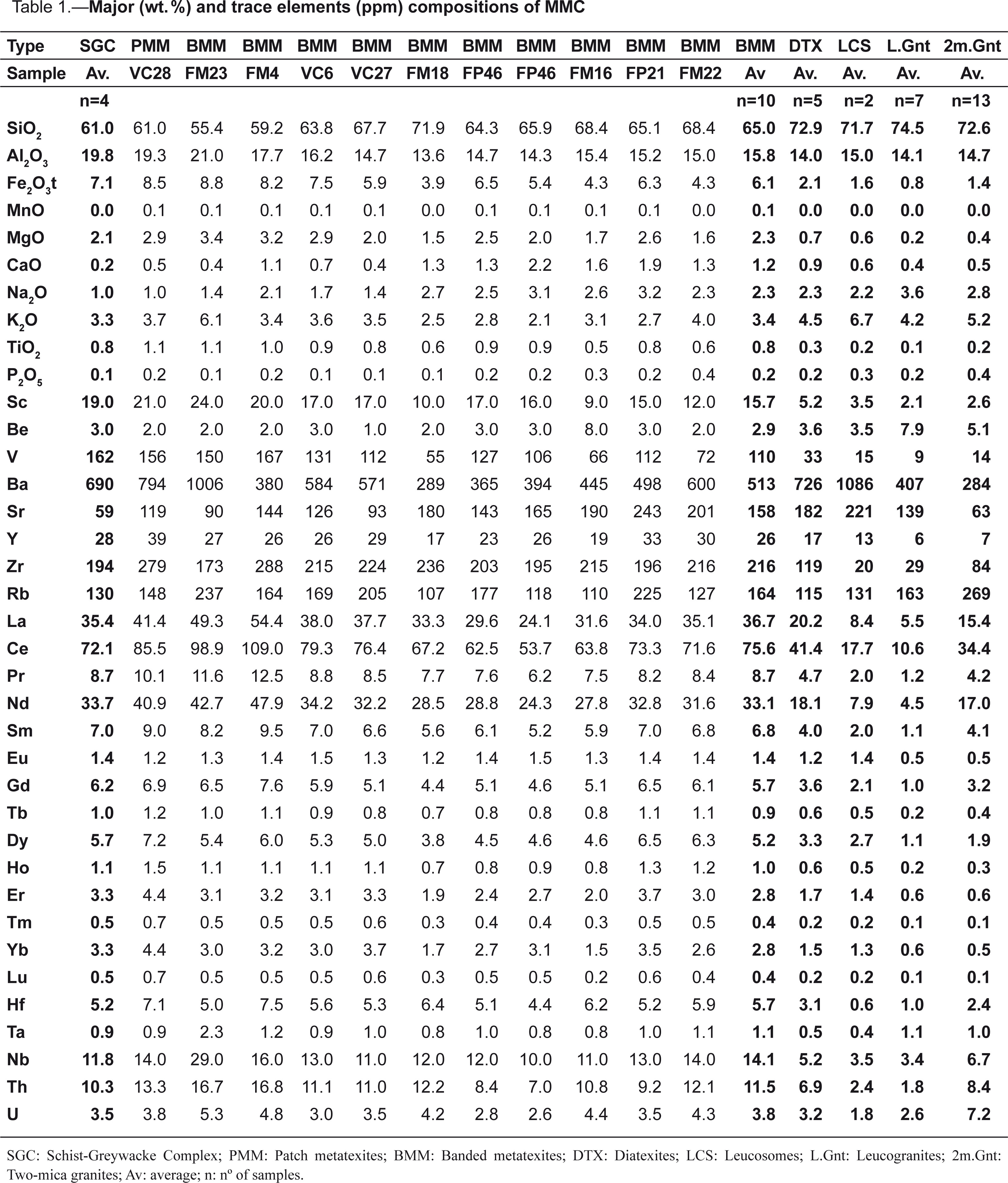

Whole-rock major and trace element analyses were carried out by ICP and ICP-MS (inductive coupled plasma / mass spectrometry) at “Activation Laboratories” (Ancaster, Ontario) (Table 1).

MigmatitesTOP

One of the most striking features in metatexites is the variation in Ca, Sr, Mn and Na content. Ca ranges from 0.35 to 1.89 (wt. %) and Na from 0.79 to 3.22 (wt. %). The content of Ca is directly correlated with Na and Sr contents (r² = 0.88 and r² = 0.86 respectively). The greater amount of Ca and Na are in those metatexites in the vicinity of greywacke resisters and could result from partial melting of external portions of the greywacke layers. The pelite rocks from the SGC show the same variation on those elements (Ca, Na, Sr and Mn). Fig. 4A shows a multivariate diagram for average composition of pelitic rocks of the SGC (n = 4) and of metatexites (n = 4). Values are normalized to NIBAS (Ugidos, et al., 2010) and show that both metatexites and SGC samples have major and minor elements similar to the NIBAS standard (exception for slight variations in Mn, Ca, Na, Sr).

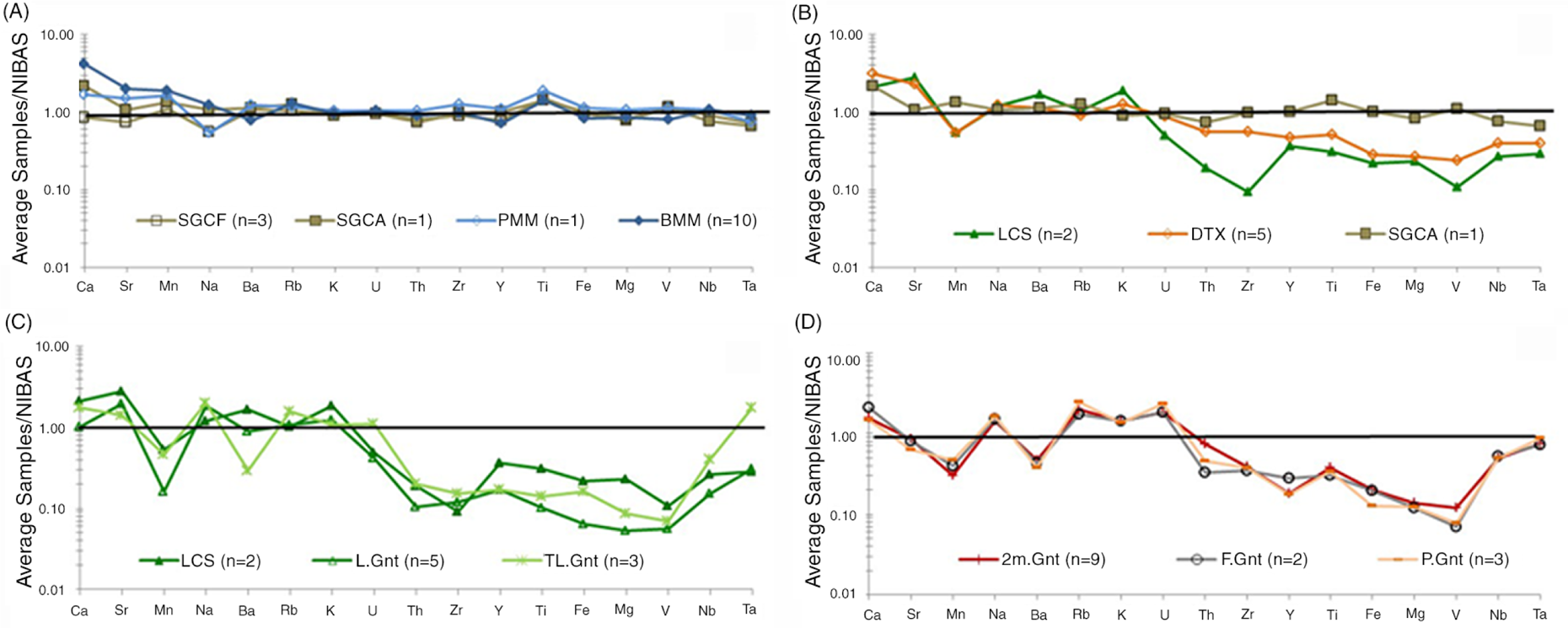

Diatexites show depletion in Fe, Mg, Mn (V, Co) and all the HSFE relatively to SGC and metatexites (Fig. 4B).

Leucosome shows the same variation relatively to the metatexites but even with higher depletion in ferromagnesian and “HFS” elements (Fig. 4C).

High variability in K₂O content is observed in metatexites (2.4 to 6.1 wt. %), which is reflected by the abundance of K-feldspar in the respective leucosomes. Also the K content is higher in calc-silicate resisters located in the vicinity of K-feldspar bearing migmatites.

The occurrence of both melt-rich and melt-depleted metatexites is reflected in their chemical composition; the last show lower SiO_2, Na₂O and CaO and higher Fe₂O₃t + MgO, Ba and Rb contents relatively to the protolith. The segregation and migration of melt at some points and accumulation in others was probably promoted by differential deformation in the metatexites. Metatexites in the vicinity of the leucogranite bodies show darker colour and high melanosome/leucosome ratio. These features are consistent with residual composition and substantial leucosome extraction and consequent enrichment in biotite, sillimanite, garnet and cordierite.

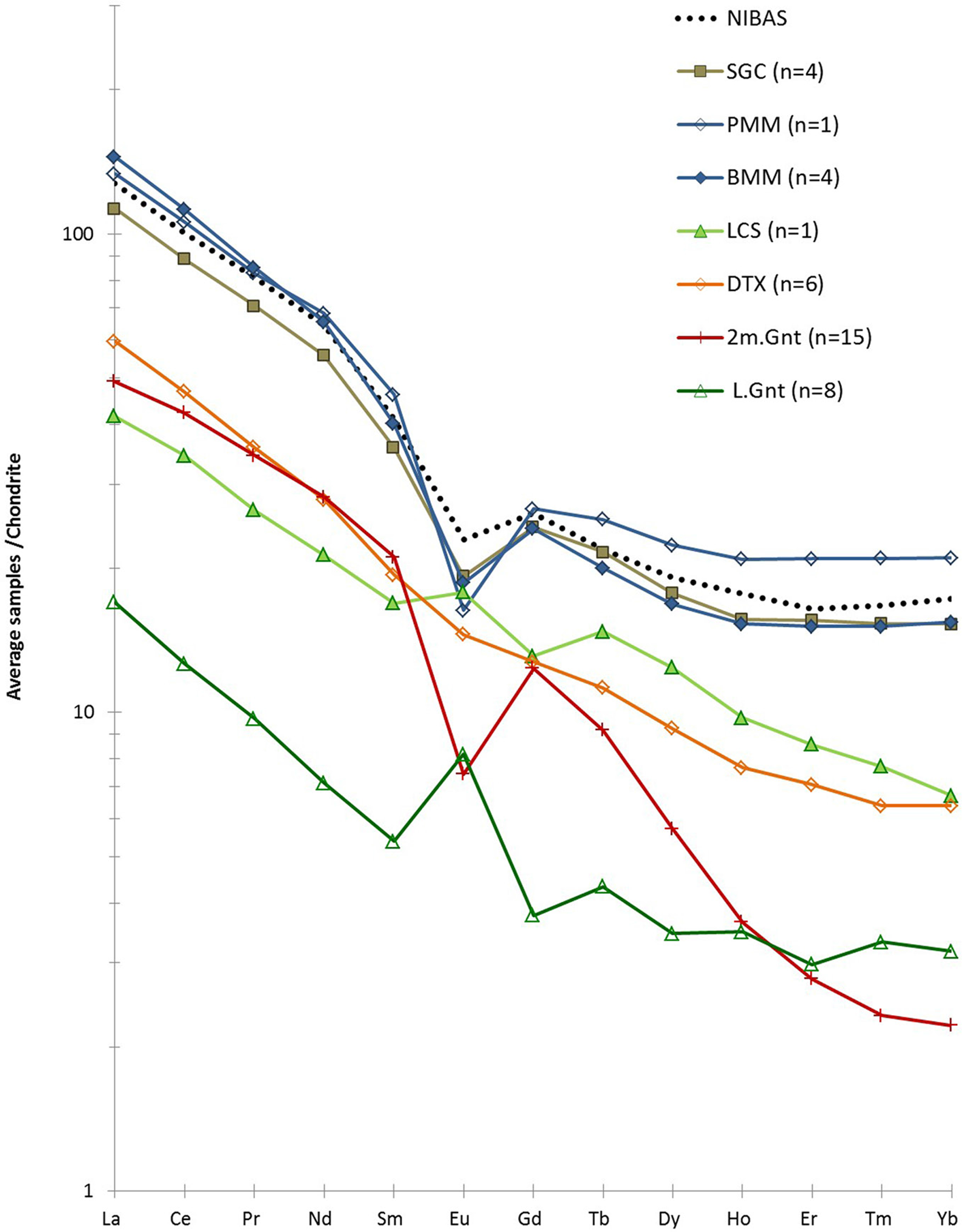

Metatexite REE pattern (chondrite normalized; Boynton, 1984) is similar to SGC samples and NIBAS (Fig. 5). It is characterized by high total REE content, negative Eu anomaly and moderately REE fractionation, presenting a typical shale REE pattern. The diatexite REE pattern has a peculiar shape: the REE content is lower than metatexite, there is no Eu anomaly and the HREE fractionation is higher. The leucosome pattern shows the lower REE total content, positive Eu anomaly and moderate HREE fractionation (Fig. 5).

Leucogranite and leucogranite veinsTOP

Leucogranite composition is quite similar to the concordant leucosome, although with some variability (Fig. 4C). Like leucosome they are depleted in Fe, Mg, Mn, HFSE, Co and V relatively to the other lithologies and NIBAS. The leucocratic veins show even high depletion in these elements, especially those that intruded away from the metatexite zone (both in metasediments and in granites). They are characterized by low Fe₂O content (<2 wt. %), SiO₂ range from 71 to 78 wt. % and high variability in K₂O content ranging from 1.4 to 7.3 wt. %. The K₂O content is inversely correlated with CaO + Na₂O content.

A notable feature is the remarkable enrichment in Rb, Nb and Ta and the depletion in Ba in the tourmaline bearing leucogranites relative to the others leucogranites (Fig. 4C).

The leucogranite REE pattern is similar to the concordant leucosome, showing low total REE content, positive Eu anomaly and low HREE fractionation (Fig. 5). Among leucosomes, those with the lowest ΣREE have marked positive Eu anomaly and a moderately fractionated REE pattern (La_N/Sm_N = 3.5–4.4), while those with the highest ΣREE show slight positive Eu anomaly and a slightly less fractionated REE pattern (La_N/Sm_N = 2.7–3.4). The leucogranite veins have the lowest REE content and the highest Eu anomaly.

Two-mica granitesTOP

Two-mica granites, fine-grained granites and porphyritic granites show similar chemical composition (Fig. 4D). Relatively to diatexite they are slightly depleted in Fe, Mg, Mn, Ca, Sr, Ba, Y, V and Co and enriched in P, K, Rb, Ta, Nb, U and Th. The Fe₂O_3t content ranges from 1.33 to 1.99 wt. %, similar to that of leucogranites although slightly higher. SiO₂ rages from 70.4 to 74.4 wt. % and K₂O average is 5.2 wt. %. In this lithology the K₂O content is not correlated with CaO + Na₂O content.

The REE pattern is typical of granites (Fig. 5), showing moderate REE content (lower than migmatites), marked Eu negative anomaly, moderate LREE fractionation and high HREE fractionation.

All the granitic lithologies (diatexites, leucogranites, two-mica granites, fine-grained granites and porphyritic granites) are highly peraluminous being the excess Al accommodated in phases like muscovite, andalusite, sillimanite or cordierite. The SiO₂ content is high (69–78 wt. %) what classifies the granitic rocks as granites. However, two-mica granites show moderate K₂O content and low variation (4.6–5.9 wt. %), diatexites show lower K₂O content (3.54–4.85 wt. %) and leucogranites show high K₂O variability (1.44–7.73 wt. %) (Table 1).

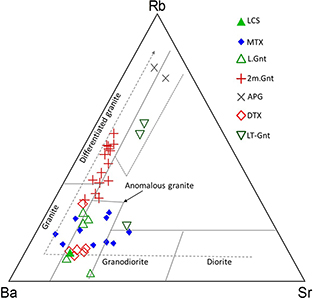

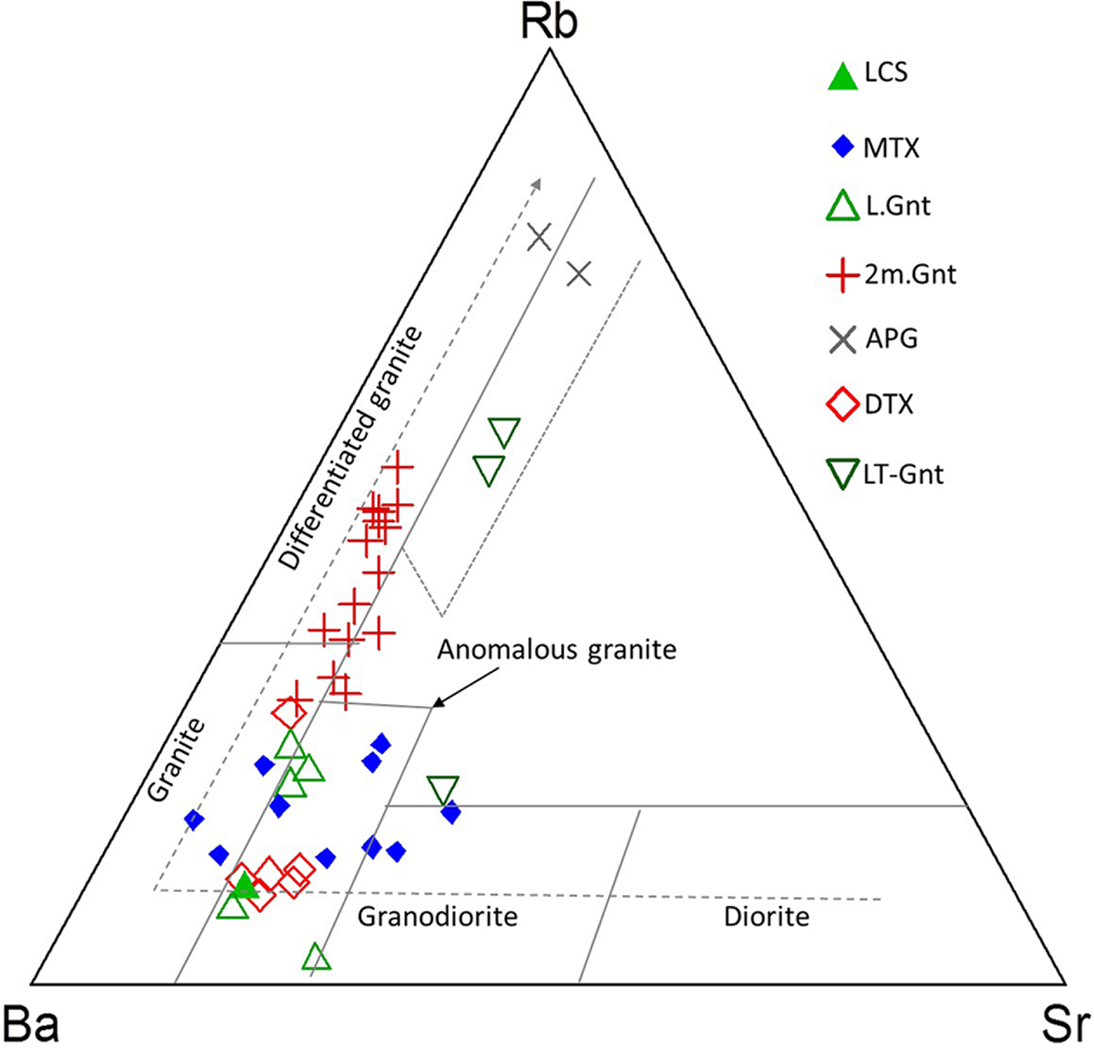

For granitic melts, Rb, Sr and Ba provide critical constraints on the conditions that prevailed during melting whereas REE are primarily controlled by accessory phase behaviour (Harris & Inger, 1992). The representation of the MMC granite rocks on the Ba-Rb-Sr ternary diagram (El Bouseily & El Sokkary, 1975, Fig. 6) does not reflect a clear differentiation trend. Diatexites, leucosome and leucogranites are mainly clustered in the anomalous-granite field. The pelitic metatexites plot in the same field. Two-mica granites plot in the field of normal granites and show a differentiated trend. Leucogranites with tourmaline plot in the field of highly differentiated rocks as well as aplite-pegmatite. This has not relation with K₂O content since there are differentiated leucogranites both with rare K-feldspar and with abundant K-feldspar. However there is correlation with the high abundance of tourmaline, muscovite and Ta + Nb content of these lithologies.

Sr and Nd isotopic signaturesTOP

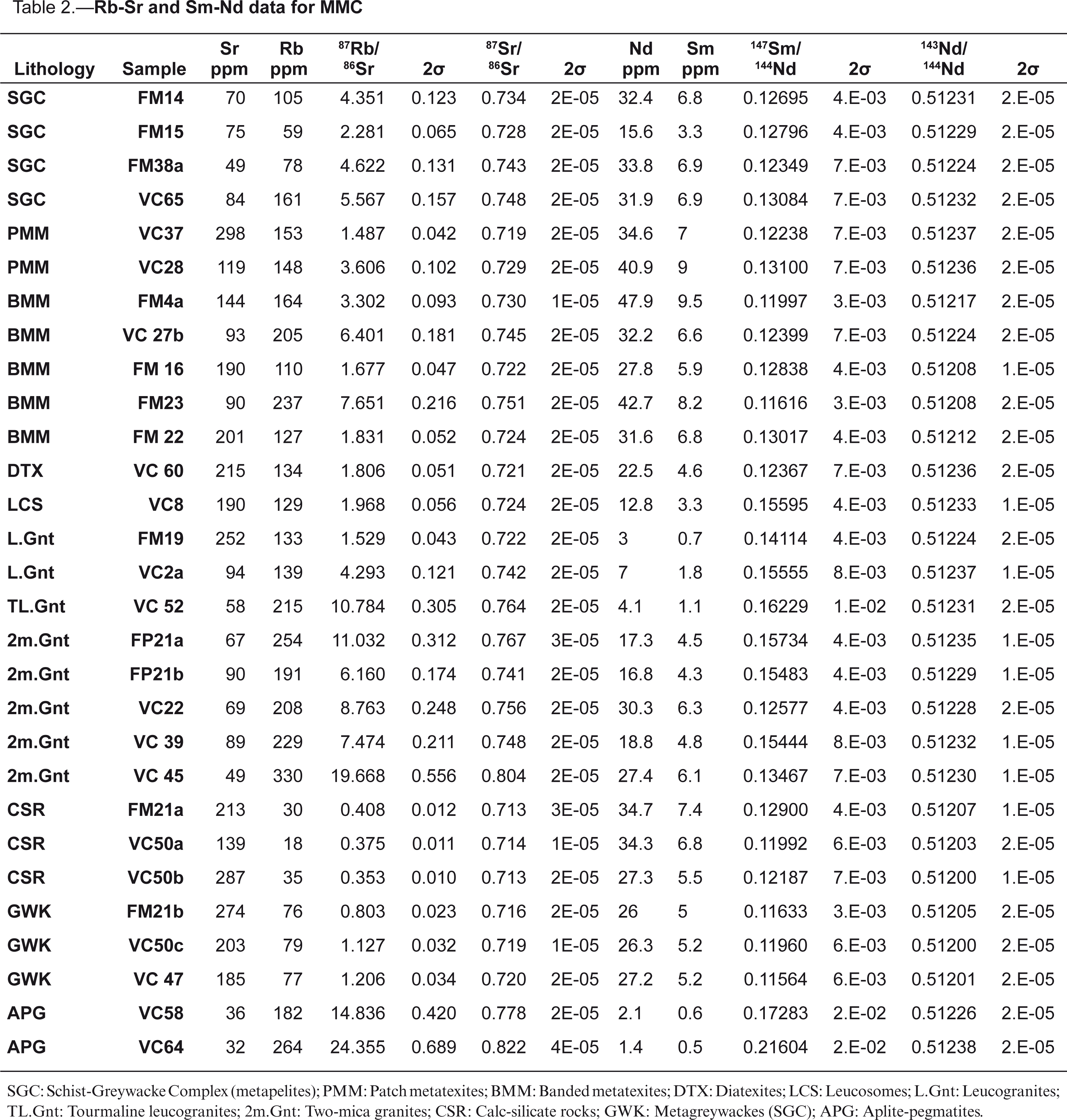

Twenty-nine samples were selected for Rb-Sr and Sm-Nd isotope studies from the MMC and the SGC (Table 2). The analyses were performed in the laboratory of Isotope Geology, University of Aveiro. For initial ratio calculations a 325 Ma age is assumed since this is the age used by several authors considering the emplacement age of most syn-tectonic variscan granites (Beetsma, 1995; Teixeira, 2008, Teixeira et al., 2012).

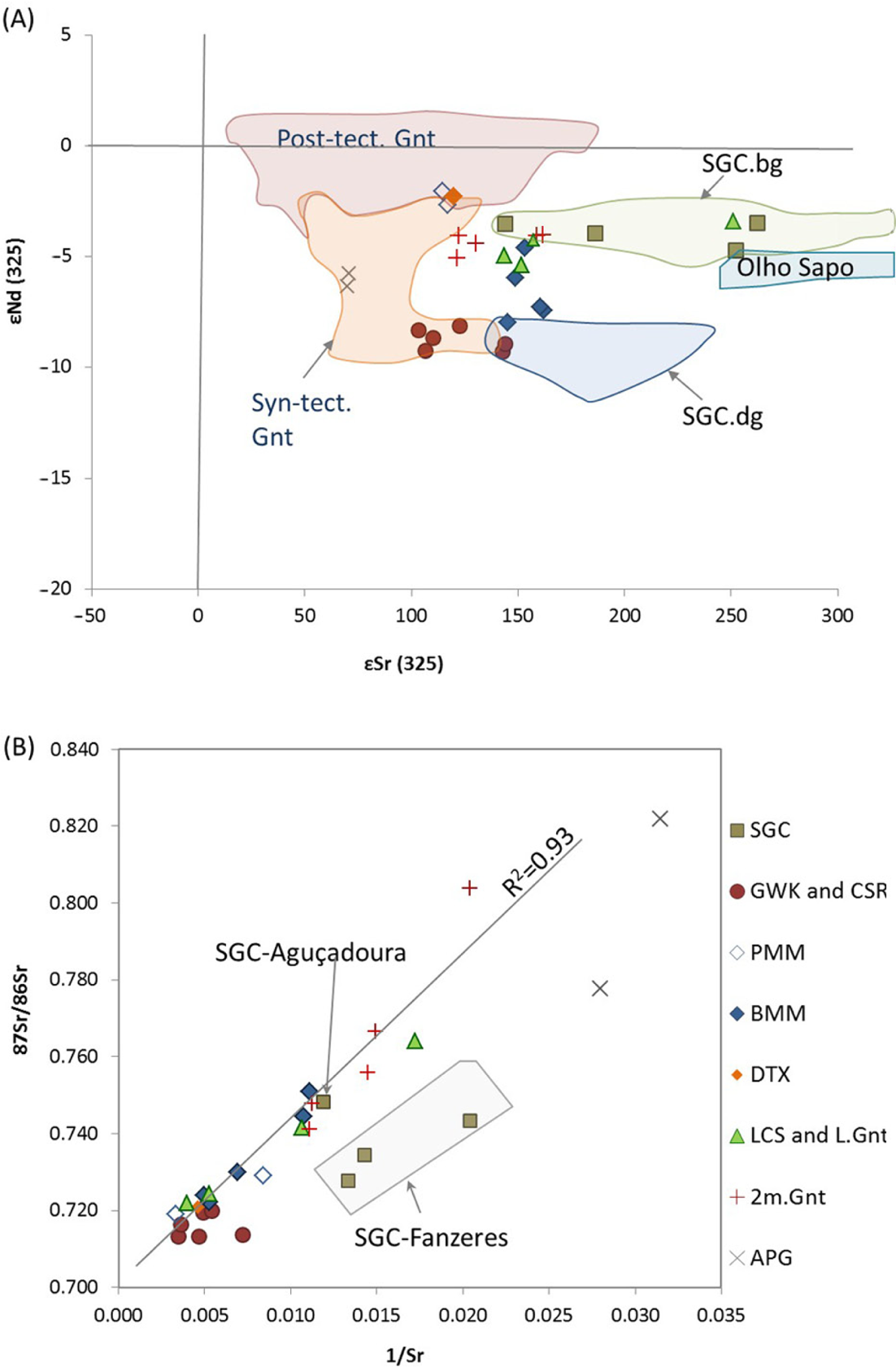

Sr-Nd isotopic signatures show a substantial crustal component for all the MMC lithologies, including granite, migmatites and metasedimentary rocks showing εSr₃₂₅ values ranging from 114 to 262 and εNd₃₂₅ values ranging from −9.3 to −2.1.

The SGC show relatively wide ranges of initial ⁸⁷Sr/⁸⁶Sr (0.71328–0.80369), as reported by other authors for these metasediments (Ugidos, et al., 2003; Beetsma, 1995, Teixeira, 2008). These values clearly indicate disturbance of the Rb-Sr system. The Rb-Sr system may be perturbed by source-rock weathering, K metasomatism and Rb mobility during diagenesis. The MMC lithologies (migmatites and granites) show much shorter range of initial ⁸⁷Sr/⁸⁶Sr. This suggests that the Rb-Sr recycling system was complete during the anatectic process.

The range of ¹⁴⁷Sm/¹⁴⁴Nd values for all the analysed samples are within the limits established by Zhao et al. (1992) for undisturbed clastic sediments (from 0.100 to 0.130). The samples can be divided into two groups: Group I comprise the SGC schists, the patch-metatexites and all the granitic rocks, showing εNd₃₂₅ values between −2.1 and −5.4; Group II includes metagreywacke and calc-silicate resisters showing εNd₃₂₅ values between −8.2 and −9.3. The banded migmatites have values ranging between these two groups. The aplite-pegmatite samples show values outside both groups with εSr₃₂₅ ~70 and εNd₃₂₅ ~ −6.0 (Fig. 7A).

DiscussionTOP

Nature of the migmatite sourcesTOP

The field relationships, the identical chemical composition and the lithological similarities between the SGC and the metatexites, namely the occurrence of shales, greywackes and calc-silicate rocks, suggest a genetic relationship between the migmatites of the MMC and the SGC.

The isotopic composition of the MMC samples, compared with the values obtained by other authors for the granitic and metasedimentary rocks of the CIZ in the diagram εSr₃₂₅ versus εNd₃₂₅ (Fig. 7A), show that the SGC schists of the Group I (comprising the SGC schists, the patch-metatexites and all the granitic rocks of MMC) coincide with the values found by Beetsma (1995) for Beiras Group (SGC.bg). The metagreywacke (GWK) and the calc-silicate resisters (CSR), belonging to Group II with lower εNd₃₂₅ values, are close to the compositional field defined by Teixeira (2008) for Douro Group (SGC. dg).

The Nd isotope composition of terrigenous sediments is controlled by two mains: (1) mixing of detrital components derived from ancient and juvenile source rocks in the provenance area; and (2) mechanical sorting and quartz dilution effects during erosion, transport and deposition resulting in unmixing of provenance components (McLennan, 1989). The bimodal Nd isotope variability between the two main groups is related with different type of terrigenous metasediments in these two groups – Group I comprise pelitic metasediments that resulted mainly from authigenic deposition of clays and group II comprise Ca metagreywackes composed mostly by allogenic material transported from elsewhere.

The dispersion of the Nd isotope composition in banded metatexites probably relates to the intrinsic characteristics of this type of lithology that comprises a restite portion (paleosome) and a newly formed fraction (neosome). More likely is that the restite portion maintains the isotopic signature while the newly formed portion will have an isotopic signature derivative from the phases involved in the melt formation (Barbero & Villaseca, 1995). Confirming this hypothesis is the fact that leucosomes, leucogranites and two-mica granites show similar εNd₃₂₅ (Fig. 7A). Granitoids were subjected to high rate of melting and subsequent integration of all components. So even if derived from a heterogeneous isotopic source, will produce a relatively homogeneous isotopic signature. Patch metatexites have very low rate of melt production and no melt migration so will also have a homogeneous isotopic signature, which should be close to the protolith.

The relation ⁸⁶Sr/⁸⁷Sr versus 1/Sr is used to better understand the genetic relation between the MMC different lithologies. The schist from Aguçadoura, the migmatites (metatexites and diatexite), the leucogranites and the two-mica granites form a linear correlation (r² = 0.93) on the ⁸⁶Sr/⁸⁷Sr versus 1/Sr diagram (Fig. 7B). The SGC from Fânzeres and aplite-pegmatites plot outside the trend-line. Metagreywackes, although next the migmatites, show more spreading pattern. A deformed sample of two-mica granite shows high ⁸⁷Sr/⁸⁶Sr values (0.80369) (Fig. 7B).

The relative isotopic homogeneity among the MMC lithologies and the metasediments outcropping north of the MMC suggests a direct genetic relationship between two-mica granites, leucogranites, migmatites and the SGC that outcrop in the vicinity of the migmatite complex. The metasedimentary rocks that outcrop further south, in the Fânzeres area, although they have the same source did not directly participate in the production of migmatites and granites of the MMC. The aplite-pegmatite samples seems to be related to the syn-tectonic (syn-D₃) granites since they plot outside the MMC groups within the field of syn-tectonic granites defined by Beetsma (1995).

REE patterns and accessory phase’s entrainmentTOP

Many investigators have shown that a large part of the total budget of some trace elements, including REE, Y, Th, U, Hf and Zr is located in accessory minerals and the behaviour of these minerals during partial melting largely controls the way trace elements are distributed between the anatectic melt and the residuum (Bea 1996; Watt et al., 1996; Bea & Monteiro, 1999). These processes are clearly observed in the MMC. In migmatites (including patch metatexite, banded metatexite and diatexite) the total REE content is positively correlated with Zr, Th and Y content (r² = 0.79, 0.90 and 0.78 respectively). Leucogranites also show positive correlation between Zr, Th and Y (r² = 0.95, 0.89 and 0.77 respectively). In two-mica granites the positive correlation is not so strong and is especially related to Th content (r² = 0.89) (Figs. 8A and B).

The Eu anomaly is linked to the preponderant role of accessory minerals with respect to plagioclase. The lower the Th and Zr content the less is the negative Eu anomaly in migmatites and two-mica granites. The leucogranites and leucosomes, with positive Eu anomaly, show the minor amount of these elements. The Na₂O/CaO ratio is inversely correlated with Eu positive anomaly.

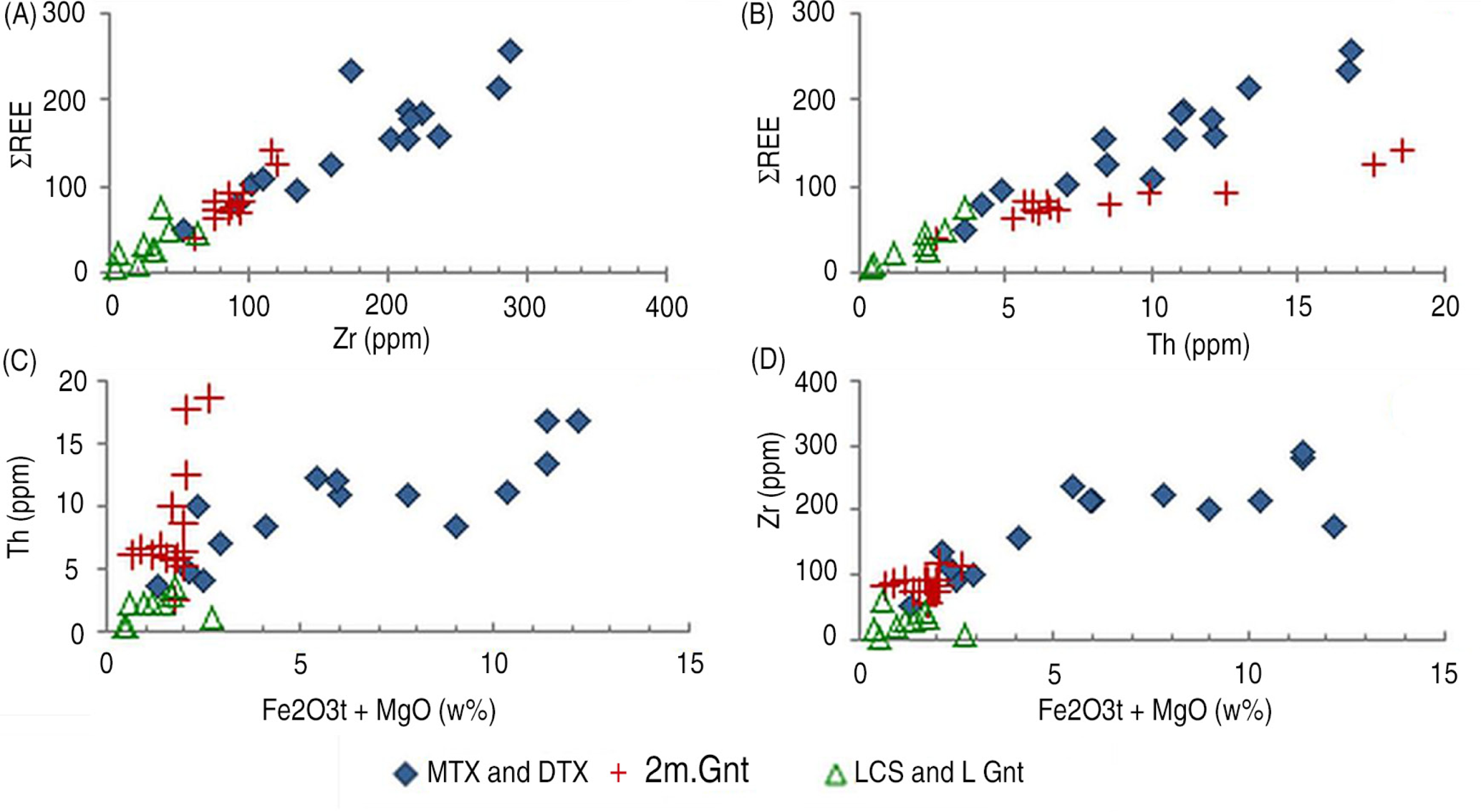

In migmatites the Zr and Th contents are positively correlated with Fe₂O₃ + MgO contents (r² = 0.63 and 0.69 respectively). Two-mica granites also show this positive correlation but it is notorious the abrupt enrichment in Th that does not follow the trend of other lithologies (Figs. 8C and D). However the LREE content of two mica granites and diatexites is similar (Fig. 5). In migmatites the LREE fractionation is directly correlated to Th content (r² = 0.6) and HREE fractionation is inversely correlated with the Y content (r2 = 0.7). However, in two-mica granites no correlation is observed. This suggests that Th in two-mica granites is not exclusively associated with monazite. This could be related to the fact that monazite and zircon commonly have different average grain size, and probably monazite was preferentially dissolved in granite since the differential flux of trace elements into the melt during dissolution of accessory phases is a function of dissolution rate and surface area, which are correlated to grain size and the degree of under-saturation of the melt with respect to the element(s) concerned (Watson, 1996).

It is clear that the relationship between the dissolution of accessory minerals in the melt influences the content and pattern of REE. Moreover, these minerals are closely related to the only ferromagnesian mineral present, i.e. biotite. However, in two-mica granites, higher dissolution of monazite liberated Th in the melt.

Melting processesTOP

Field relationships, whole-rock chemistry and isotopic signature suggest that SGC was the protolith of the MMC lithologies. One of the most distinctive aspects of the MMC granitic rocks is their lithological, mineralogical and textural variation. The chemical and mineralogical dissimilarity between the MMC granitic rocks could result from their derivation from different crustal levels, different fusion rates and/or different melt segregation process rather than of a marked difference in the source lithologies involved.

The leucogranite and leucogranite veins composition, namely the high HSFE depletion relatively to metatexites and the distinct REE patterns can be produced by removal of leucosome before complete equilibration due to the inhibited dissolution of accessory phases, during an early stage of segregation and extraction (Barbero & Villaseca, 1995; Watt et al., 1996; Zeng et al., 2005a and 2005b; Brown, 2008, 2013). Evidence for channelized flow and deformation-enhanced melt segregation on an outcrop scale is present all over the MMC where melt migration occurs over several distances.

It is likely that a first fluid-present melting pulse takes place in the MMC and produced most of the leucosomes, leucogranites and leucogranite veins. As referred before, leucosomes and leucogranites show high variability in the K₂O content and consequent heterogeneity in K-feldspar abundance. The K content is inversely correlated with Na₂O + CaO content what is reflected by the replacement of plagioclase by K-feldspar in these lithologies. The K-poor leucosomes and leucogranites are a possible outcome of the SGC metasediments H₂O-melting, in an earliest stage, at relatively low T, during prograde conditions, as postulated by several authors (Conrad et al., 1988; Patiño Douce & Harris, 1998; García-Casco et al., 2001, Jung, 2005; Zeng et al., 2005b). Fluid-present melting, which mainly consumes plagioclase and minor amounts of mica, will produce strong Sr enrichment and marked Rb and Ba depletion (Harris & Inger, 1992). MMC leucogranites are characterized by low Rb/Sr values, much lower than the two-mica granite values (average Rb/Sr = 1.07 and 4.44 respectively) and higher Ba/Sr values (average Ba/Sr = 0.38 to leucogranites and 0.22 to two-mica granites). The positive Eu anomaly observed in most leucosomes and leucogranites also argues in favour of prevailing fluid-present, inasmuch as fluid-absent melting is known to yield negative Eu anomalies (Harris & Inger, 1992). It is also significant that the leucosomes and leucogranites are cordierite-free, as opposed to what occurs in diatexites. The first result from fluid-present melting and the second are the product of fluid-absent hydrate-breakdown melting that carry anhydrous (peritectic) minerals, such as cordierite or garnet or pyroxene (Milord et al., 2001; Brown, 2013).

The availability of water for melting reactions decreases since water is rapidly dissolved into the melt. Thus, and in agreement with the observed textures, the migmatization continues by fluid-absent biotite breakdown reactions (Brown, 2008; White, 2008):

Reaction (1) and (2) take place in relatively shallow crustal levels. The peritectic cordierite and the absence of peritectic garnet or ortopyroxene (either in metapelites or in metagreywackes) indicate that melt occurred at P<4 kbar and T<760 °C (assuming that chemical equilibrium is attained; White, 2008).

The diatexites show mineralogical and chemical composition coherent with in situ partial melting containing all the same mineral phases as the banded migmatites but the leucosome/melanosome ratio is much higher with consequent relatively low ferromagnesian elements and HSFE content. They show the sequential evolution from low melt fraction metatexites to high melt fraction diatexites. The absence of resisters within diatexites and its higher Ca content is an outcome of calc-silicate greywackes incorporation in their composition, which gives it a calc-alkaline character. This suggests that the melting temperature was probably slightly higher for diatexites than metatexites and consequently the melting rate. The abrupt contacts between diatexites and metatexites suggest that the diatexites intruded metatexites and have been formed at deeper levels. However the P-T conditions and melting reactions of diatexites and migmatites formation were not much different since the mineralogy is identical.

In the MMC several factors must be taken into account with regard to the relationship between granites and migmatites: (1) two-mica granites have a truly intrusive character; there are sills, dikes and other bodies that cut the migmatite rocks and incorporate migmatite xenoliths; (2) its wall rocks (metasediments and metatexite) are mostly poor in potassium and usually their only potassium-rich mineral is biotite; therefore, the huge amounts of potassium-rich granite cannot result exclusively from segregation in situ; (3) the mineralogical and chemical composition of two-mica granites is different from that of migmatites and leucogranites. The former have andalusite which is absent in migmatites and have more K-feldspar and apatite. Cordierite is present in migmatites but not in two-mica granites. This is reflected in the chemical composition since two-mica granites show a different REE pattern, higher K and P content and Rb/Sr ratio; (4) the isotopic signature of two-mica granites, migmatites and SGC metasediments shows a genetic link between them.

Like leucosomes and leucogranites, two-mica granites and diatexites also show replacement of plagioclase by K-feldspar. There are two types of k-feldspar crystals: one type is magmatic (euhedral to subhedral) and the other is anhedral always replacing plagioclase. Besides, Na + Ca and K content are uncorrelated. This is due to the different anatectic processes that originate these last lithologies: they incorporate all the components resulting from anatectic reactions plus restites, while leucogranites resulted from melt segregations and the restitic portion is subordinate. Also the diatexite and two-mica granite resulted from higher melting rate and formed in deeper levels.

It seems that multiple fluid pulses affected the MMC in subsolidus conditions: a first pulse with boron-bearing fluids and a second pulse containing silica-bearing aqueous-fluids. The occurrence of leucogranites and two-mica granites showing localized replacement of biotite by tourmaline, late tourmaline in the metasediments and the occurrence of pegmatite veins with abundant tourmaline suggest that late boron-rich fluids affected the MMC and surrounding metasedimentary sequence.

The entrainment of later silicate aqueous fluids is inferred from: (1) the muscovitization of tourmaline, biotite and plagioclase all over the MMC; (2) presence of quartz-veins cutting all the lithologies; (3) large quartz-crystals bands in some calc-silicate rocks that include all the previous rock-forming minerals; (4) retrograde alteration of staurolite, andalusite and biotite in the metasedimentary sequence.

ConclusionTOP

The lithological, petrographic and geochemical aspects suggest the following anatexis/crystallization events:

At subsolidus conditions, the MMC was affected by boron-rich fluids that promoted the development of tourmaline in some leucogranites and two-mica granites and the installation of aplite-pegmatite veins that cut all the other lithologies and have isotopic signature quite different from them. The last silica-rich aqueous fluid pulse, probably in the continuity of the previous one, promoted the muscovitization of tourmaline, biotite, andalusite and staurolite in migmatites and surrounding metasediments.

It is suggested that the migmatization probably started after the compressional and crustal thickening stage of Variscan Orogeny and was continuously active during the following stage of deformation and D₃ transcurrent shearing since the main migmatite foliation is concordant with the main foliation in metasedimentary sequence (S₁) and the D₃ stress and structures conditioned the segregation, migration and emplacement of melts. The several pulses of different fluids that affected the MMC probably are related to the crystallization of syn and late-D₃ granites.

ACKNOWLEDGMENTSTOP

This work was developed in the scope of the Centro de Geologia (University of Porto) activities with financial support of EU funds (FEDER – “Operacional Potencial Humano” Program) and Portuguese funds from FCT – “Fundação para a Ciência e Tecnologia” (research fellowship n° SFRH / BD / 65509 / 2009 and PETROCHRON - PTDC/CTE-GIX/112561/2009). We are grateful to Carlos Villaseca and Beatriz Valle Aguado whose comments greatly helped to improve the manuscript.
