Tracking the oxygen isotopic signature from the rainfall to the speleothems in Ortigosa de Cameros caves (La Rioja, Spain)
Trazabilidad de la señal isotópica del oxígeno desde la lluvia a los espeleotemas en las cuevas de Ortigosa de Cameros (La Rioja, España)

M.C. Osácar¹, C. Sancho¹, A. Muñoz¹, M. Bartolomé², A. Moreno², A. Delgado-Huertas³, I. Cacho⁴

¹ Dpto. de Ciencias de la Tierra, Universidad de Zaragoza, C/Pedro Cerbuna 12, 50009 Zaragoza. Email: cinta@unizar.es

² Instituto Pirenaico de Ecología, CSIC, Avda. de Montañana 1005, 50059 Zaragoza

³ Instituto Andaluz de Ciencias de la Tierra, CSIC, Avda. de Las Palmeras 4, 18100 Armilla, Granada

⁴ Departament d’Estratigrafia, Paleontologia i Geociències Marines, Universitat de Barcelona, C/Marti i Franquès s/n, 28080 Barcelona

IntroductionTOP

Stalagmite oxygen isotope (δ¹⁸O) is commonly used as a proxy of external environmental conditions (Lachniet et al., 2009; McDermott, 2004) for palaeoclimate reconstructions, inasmuch as the rainfall isotopic composition is transposed to the speleothem calcite. However, the isotopic changes in the pathway from the rainfall to the speleothem are not completely understood, because of the many complex factors involved, which are related to climate, soil and vegetation, epikarst and cave environment (McDermott, 2004; Lachniet et al., 2009; Feng et al., 2014). In fact, every karst system or every cave may usually display a unique and individual isotopic response (Bradley et al., 2010).

A first approach to addressing this subject deals with the isotopic (δ¹⁸O) analysis of drip waters (Treble et al., 2013; Luo et al., 2014) as an intermediate step from the external climate signature to the speleothemic one. Thus, cave monitoring involving this strategy becomes a useful method to assess palaeoenvironmental interpretations derived from stalagmites (Cruz et al., 2005; Baldini et al., 2006; Mattey et al., 2008; Feng et al., 2014, Genty et al., 2014).

Previous works (Muñoz & Sancho, 2008; Muñoz et al., 2009; Muñoz et al., 2010) have shown the potential of the Ortigosa Cave to refine the relationship between the environmental features and the speleothem chemistry. Through sampling and analyses of the isotopic composition of rainfall, drip waters and in-situ resulting precipitated calcite, we explore the transference of the isotopic signature, in order to assess the processes prevailing in the intermediate reaches (from rainfall to drip water and from drip water to calcite) in the Ortigosa Cave System (Northern Iberian Peninsula).

Study area and cave featuresTOP

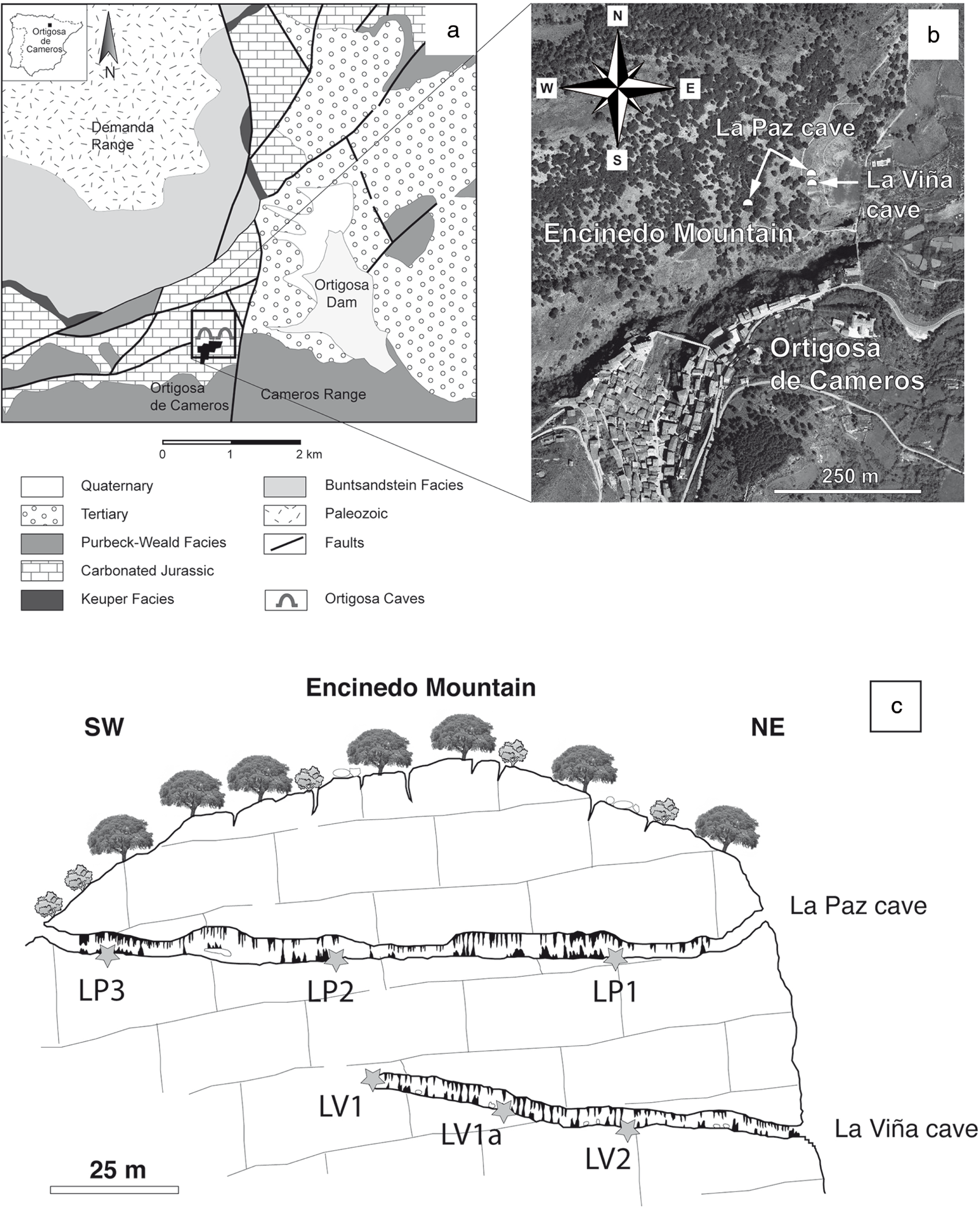

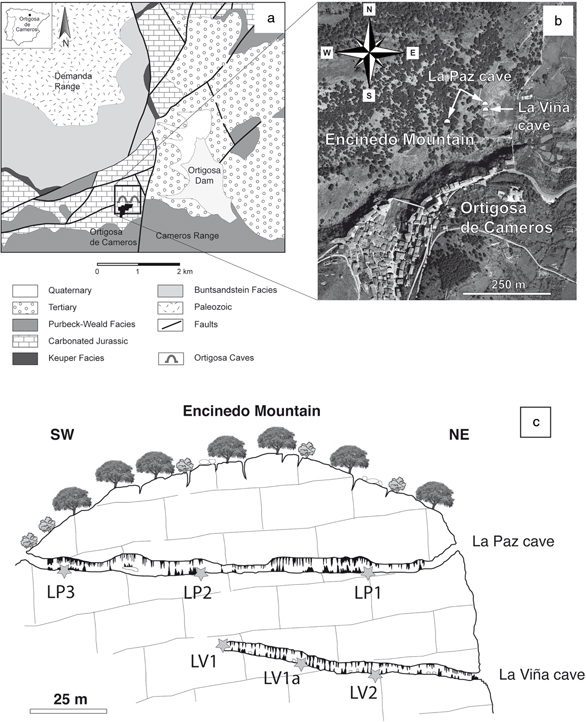

The study area is located in the westernmost sector of the Cameros Range (Iberian Mountain System, Northern Spain) (Fig. 1a). La Paz and La Viña Caves are located in the Encinedo Mountain (Fig. 1b) near Ortigosa de Cameros village (La Rioja). The geological framework is made up of a Paleozoic basement, a Mesozoic cover, dipping to the S-SE, and a subhorizontal sequence of Cenozoic conglomerates. The Ortigosa Cave System is developed within marine limestones of the Middle Jurassic (ITGE, 1990) and is one of the most important endokarstic features in the Iberian Range. La Viña Cave is 114 m long and is located at 1080 m above the sea level. La Paz Cave is longer (236 m) and it develops 20 m above the former (Fig. 1c). Both, La Paz and La Viña Caves, exhibit horizontal development and geometry controlled by the direction of the main regional NE-SW fault system (Fig. 1a). The karstified massif is covered by poorly developed calcareous soils (rendzina) and supports a mesophytic forest of Quercus ilex and Quercus rotundifolia.

Methods and materialsTOP

Several environmental parameters have been monitored both outside and inside the Ortigosa Cave system over a full year (autumn 2011- summer 2012). Rainfall amount was measured continuously and sampled for isotopic composition (δ¹⁸O and δD). Temperature values were obtained from the closest meteorological station of Villoslada de Cameros (Government of La Rioja: http://www.larioja.org/npRioja/default/defaultpage.jsp?idtab=457643).

Inside the caves, dripping rate, relative humidity (RH) and temperature were continuously recorded by means of several HOBO sensors: one drip gauge in each cave (sites LV1 and LP2 in Fig. 1c), and two sensors of temperature and RH in La Viña Cave and three in La Paz (sites LV1, LV2, LP1, LP2 and LP3, in Fig. 1c). Drip water was sampled manually for isotopic analysis (δ¹⁸O) every three months, in the middle of the corresponding season (November, March, May and August): two sites (LV1a and LV2) were sampled in La Viña Cave and three sites (LP1, LP2, and LP3) in La Paz Cave (Fig. 1c). Speleothem calcite records were obtained by precipitation on glass plates placed under dripping points, nearby the water sampling sites (one per dripping site), and removed every three months, at the end of the corresponding season (December, March, June and September); the precipitated calcite was analyzed for oxygen isotopic composition (δ¹⁸O).

Rain water isotope oxygen and hydrogen analyses were carried out at the IACT-CSIC in Granada, in a Finnigan Delta Plus XL mass spectrometer. Water samples were equilibrated with CO₂ for the analysis of δ¹⁸O values (Epstein & Mayeda, 1953), while the hydrogen isotopic ratios were measured on H₂ produced by the reaction of 10 μL of water with metallic zinc at 500 °C, following the analytical method of Coleman et al. (1982). The results are expressed as δ¹⁸O and δD‰ V-SMOW.

Drip water oxygen was determined at the Department of Environmental Sciences of the J. Stefan Institute in Ljubljana (Slovenia). The water samples were poisoned with a solution of HgCl₂ immediately after sampling to prevent biological activity before the analysis. The results are also expressed as δ¹⁸O‰ V-SMOW.

Calcite oxygen isotope composition was determined by using a Thermo Finnigan MAT252 mass spectrometer coupled with a CarboKiel-II carbonate preparation device at the Scientific and Technological Centers form the University of Barcelona. The results are reported as δ¹⁸O‰ V-PDB.

ResultsTOP

Environmental conditionsTOP

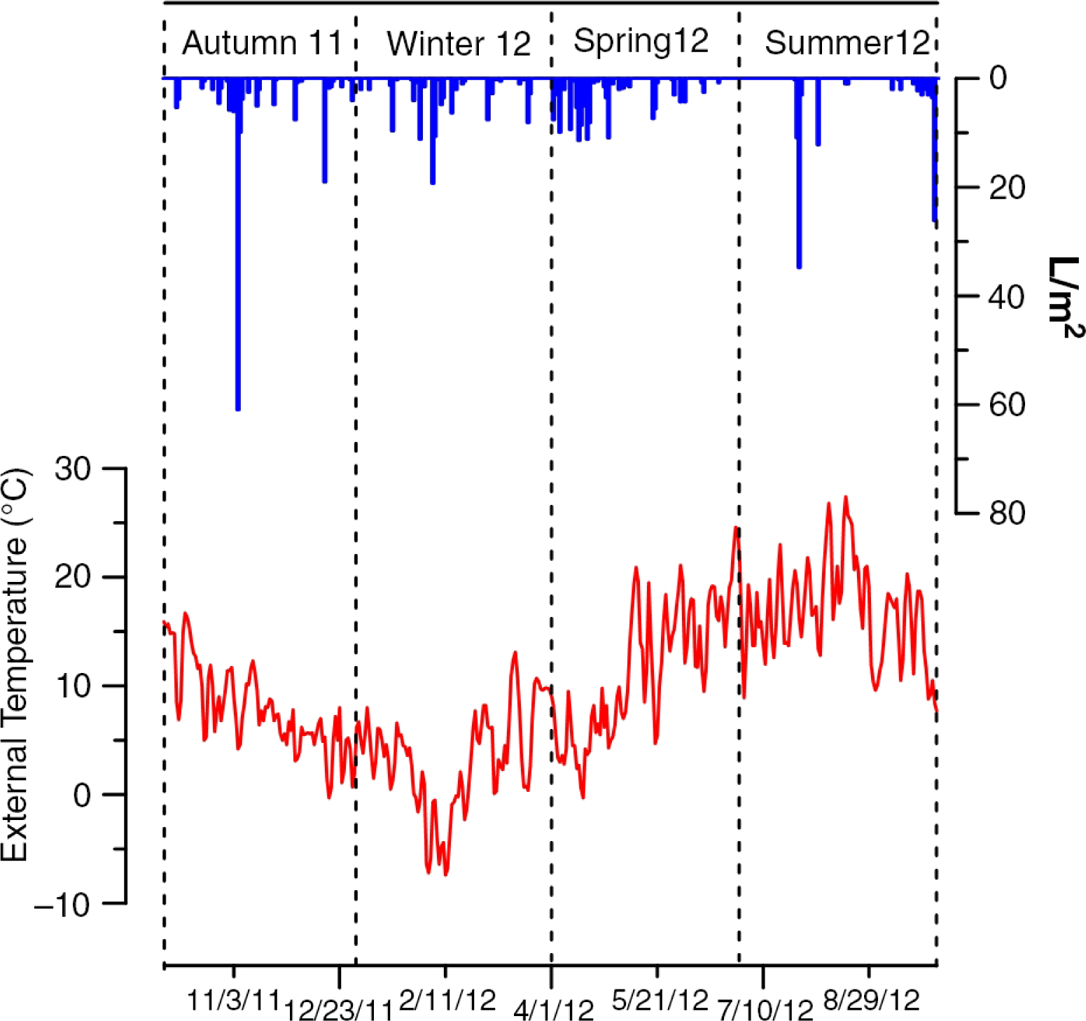

Regional climate is of continental Mediterranean type, with a mean annual temperature of 9 °C and a mean annual precipitation of 630 mm. During the monitored time the mean temperature was of 9.93 °C and the annual precipitation of 522.48 mm. Precipitation occurs mainly in autumn and spring, although there were some important events in July 2012 (Fig. 2).

Internal parametersTOP

In La Viña Cave only the LV1 sensor has recorded the whole monitored time span, with a mean daily temperature of 12.17 °C and extreme values of 11.91 °C (June 29, 2012) and 12.46 °C (August 26, 2012). The extreme values of the incomplete record of LV2 sensor are 11.95 °C (March 28, 2012) and 13.36 °C (August 22, 2012).The RH is 100%, invariably, for both LV1 and LV2 sensors.

In La Paz Cave the LP2 and LP3 sensors supplied complete records through the monitored time. The mean daily temperature recorded by sensor LP2 was 11.43 °C, with extreme values of 11.16 °C (March 2, 2012) and 11.60 °C (August 30, 2012); LP3 recorded a mean daily temperature of 10.99 °C, with extreme values of 9.29 °C (March 29, 2012) and 12.2 °C (September 22, 2012). The LP1 sensor only recorded since March 2012, with extreme values of 11.27 °C (March 22, 2012) and 11.89 °C (September 30, 2012). The average RH values were 100% for LP2 sensor and 98.11% for LP3 sensor.

Temperature variations inside the caves are small. The main difference among sensors corresponds to LP3, which shows the widest temperature range. This fact has been explained, in a previous work (Muñoz et al., 2012), by its position, close to the surface and to one of the entrances. The seasonal changes in temperature (differences between three-month means) in LV1 and LP2, the sites where the drip rate of each cave was measured, are 0.1 °C and 0.2 °C respectively. This is coherent with a higher thermal inertia in La Viña Cave than in La Paz Cave, related to the deeper position of La Viña Cave and the thicker rock roof above it, that slows down the heat transference from the outside (Muñoz et al, 2010).

Other factors, mainly the visitor entry, have been observed to affect the cave temperature, mainly due to lighting and ventilation. In fact, radon and CO₂ monitoring have shown that ventilation is more efficient in La Viña Cave than in La Paz Cave, in spite of the former having a thicker rock roof and only one entrance (Muñoz et al., 2012). Nevertheless, both the small variation of temperature and relative humidity inside the caves over the year, as well as the lack of asymmetric development of current erratic forms, for instance, botryoidal forms, point to a limited effect of ventilation, at least in the sampling and measurement cave areas, far enough from the entrances.

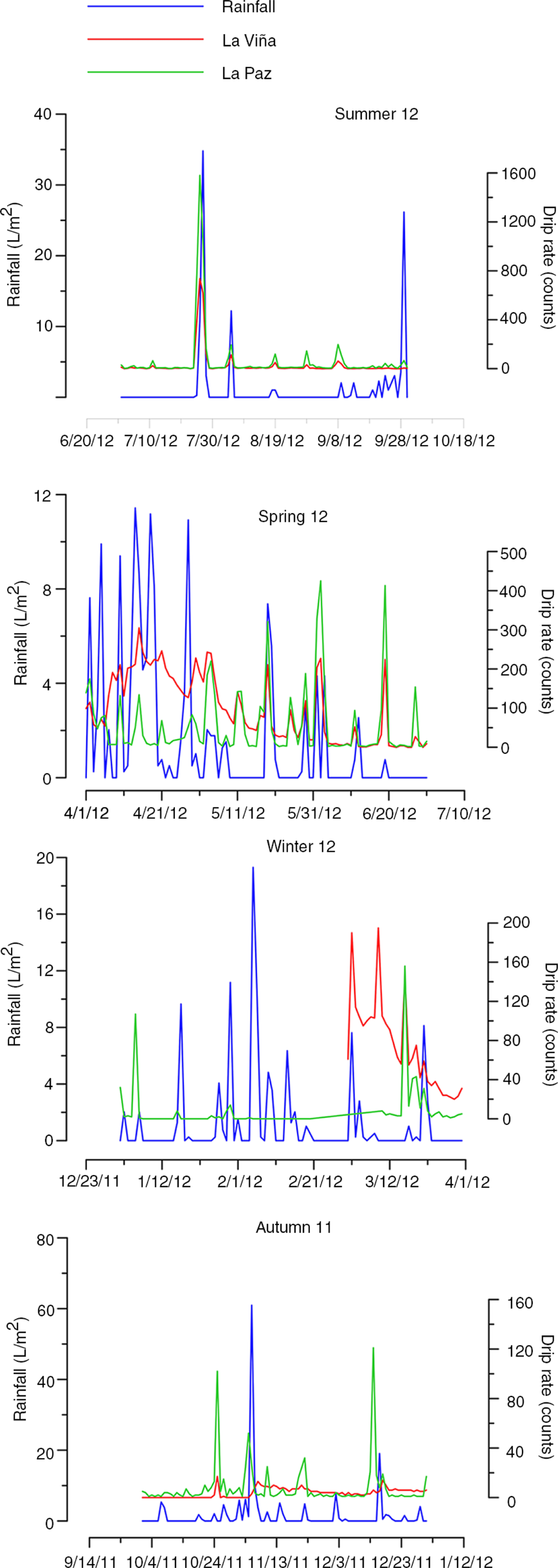

Water dripping inside the caves is irregular and responds to the local rainfall events. In summer, dripping decreases, and even ceases, in the two caves. If the drip rate records of both caves are compared with the local rainfall record (Fig. 3), it can be observed that, in general, rain events are almost immediately followed by an increase in the drip rate, except in autumn. Over this season there is a delay between the rainfall events and the resume of the dripping inside the caves, which starts in mid-October/beginning of November in La Paz/La Viña Caves. This delay is likely related to the response time of the karstic system after the summer. For the rest of the year, rainfall events are quickly reflected in the dripping in both caves, although in La Paz Cave the dripping mimics the rainfall more closely, whereas in La Viña Cave dripping rates are more moderate and even dripping continues after the rain ceases, i.e. the response to rainfall events is slower. The dripping rates do not reflect the intensity of rainfall events with the same magnitude, most likely because in some cases, during particularly intense events, rainfall water is partially lost through run-off, which reduces the infiltration into the epikarst.

The lack of water dripping record in La Viña Cave during most of the winter 2012 is due to technical problems of the sensor.

Isotopic compositionTOP

RainfallTOP

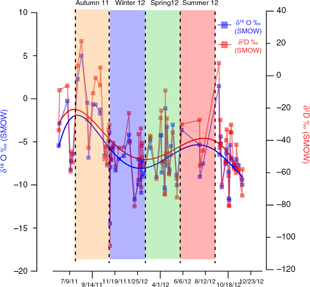

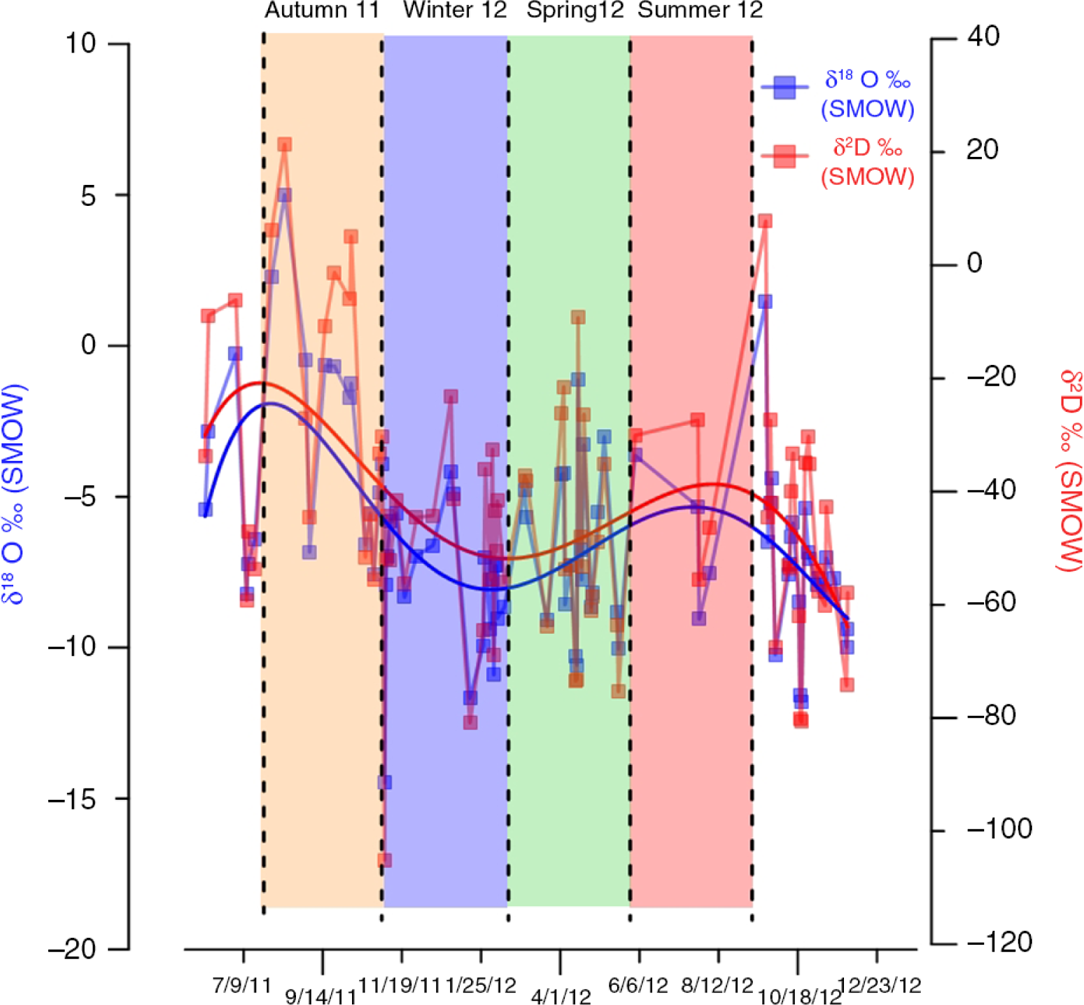

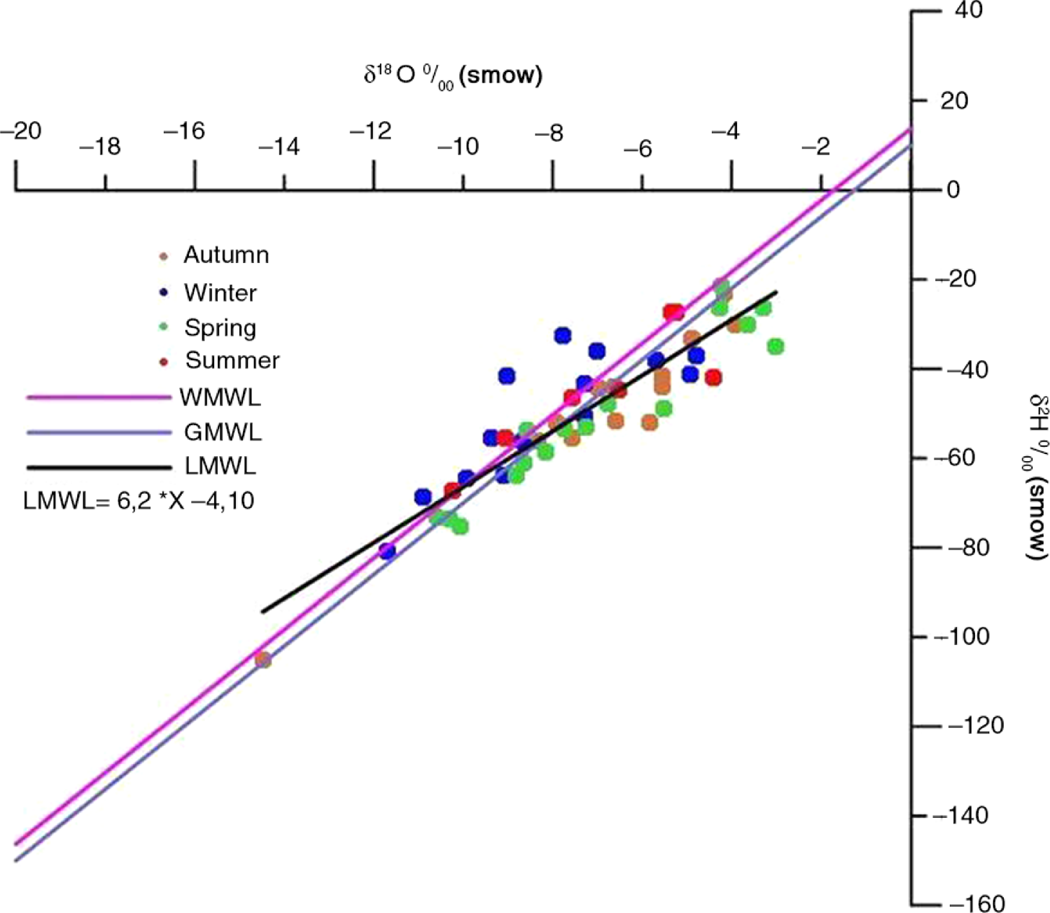

Isotopic composition of rainfall is plotted in Fig. 4. The δ¹⁸O values span from −3.01‰ V-SMOW to −14.48‰ V-SMOW, with a mean value of −7.41‰ V-SMOW, and δD spans from −21.48 to −105.13‰ V-SMOW, with a mean value of −50.13‰ V-SMOW. Deuterium and oxygen analysis of rainfall plot around the Global Meteoric Water Line (GMWL) and the Western Mediterranean Meteoric Line (WMML) although with a lower slope (GMWL: δD=8×δ¹⁸O+10; WMML: δD=8×δ¹⁸O+13.7; this work: δD=6.23×δ¹⁸O−4.1) (Fig. 4). There are not remarkable differences among values of rainfall of different seasons, although winter values tend to be lower. Snow precipitation, more frequent in winter and spring, can be significant: the average of snow δ¹⁸O of the studied year is −9.19‰ V-SMOW, assuming the precipitation occurs when the mean daily temperature is below 4 °C. Taking into account the wind direction during the precipitation, the lowest isotopic values correspond to NNW to WNW wind directions (mean δ¹⁸O=−8.86‰ V-SMOW) and the highest to S-SSE wind directions (mean δ¹⁸O=−4.74‰ V-SMOW), whereas WSW-SSW wind directions show intermediate values (mean δ¹⁸O=−6.94‰ V-SMOW). Snow precipitation occurs under NNW to WSW wind directions.

Dripping water and precipitated calciteTOP

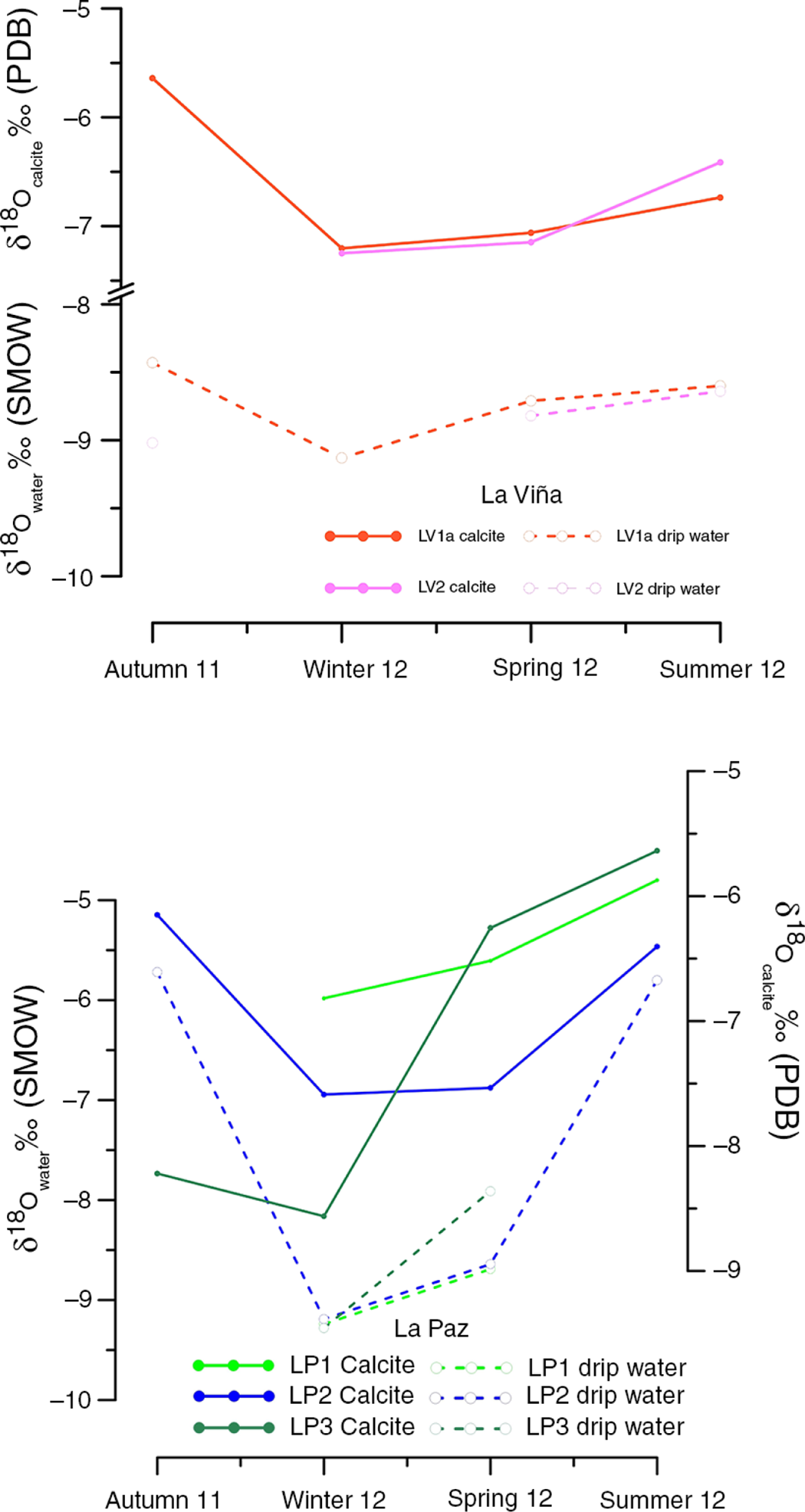

Average isotope composition is δ¹⁸O=−8.39‰ V-SMOW in drip water, and δ¹⁸O=−6.83‰ V-PDB in the glass-precipitated calcite. The evolution of oxygen isotopes of both dripping water and calcite precipitated in glass plates is plotted in Fig. 5. They display parallel trends, with lower values in winter and spring than in summer and autumn; in these seasons, displaying the highest δ¹⁸O values, water dripping was scarce and only one site could be sampled for water in La Paz Cave. In La Viña Cave the two measurement sites yield similar values through the monitored time, whereas in La Paz, closer to the surface, values are higher in autumn and summer and lower in winter and spring.

DiscussionTOP

From rainfall to drippingTOP

Rainfall is the primary source for the water in the speleothemic process, and the final drip water isotopic signal will depend both on the isotopic composition of rainfall and on the changes that rain water suffers along the pathways through the reservoir, until it reaches the cave. Moreover, the characteristics and intensity of these transformations can vary through time and space (McDermott, 2004; Lachniet et al., 2009; Johnston et al., 2013; Feng et al., 2014).

The isotopic signal of rainfall depends very much both on the provenance of the precipitation and on the temperature. At Ortigosa location, due to the latitudinal position and other geographic factors (altitude, orography, etc.), precipitation generated by frontal depressions related to western Atlantic flows are predominant, although convective storms associated with eastern flows and cyclogenetic processes in the Mediterranean basin itself are also common, mainly in summer (Celle & Jeanton et al., 2001). Taking into account the wind direction associated to each precipitation event, the high values recorded for rainfall coming from S-SE wind directions, that is, a likely Mediterranean origin, are significant of this influence. Besides, the influence of snow precipitation is limited, because the mean δ¹⁸O value of precipitation from NNW to WNW directions, excluding the snow (mean value =−7.47‰ V-SMOW), is still lower than the mean δ¹⁸O corresponding to the S-SE directions.

Thus, the “source effect”, although partially concealed by the seasonality, would be one of the main influences in the final δ¹⁸O values of precipitation at this location. This effect is due to the different air mass histories and temperatures of the moisture sources (Craig, 1961; Dansgaard, 1964; Rozanski et al., 1993; Araguás-Araguás et al., 2000) and would explain the seasonality of the rainfall isotopic composition represented in Fig. 6.

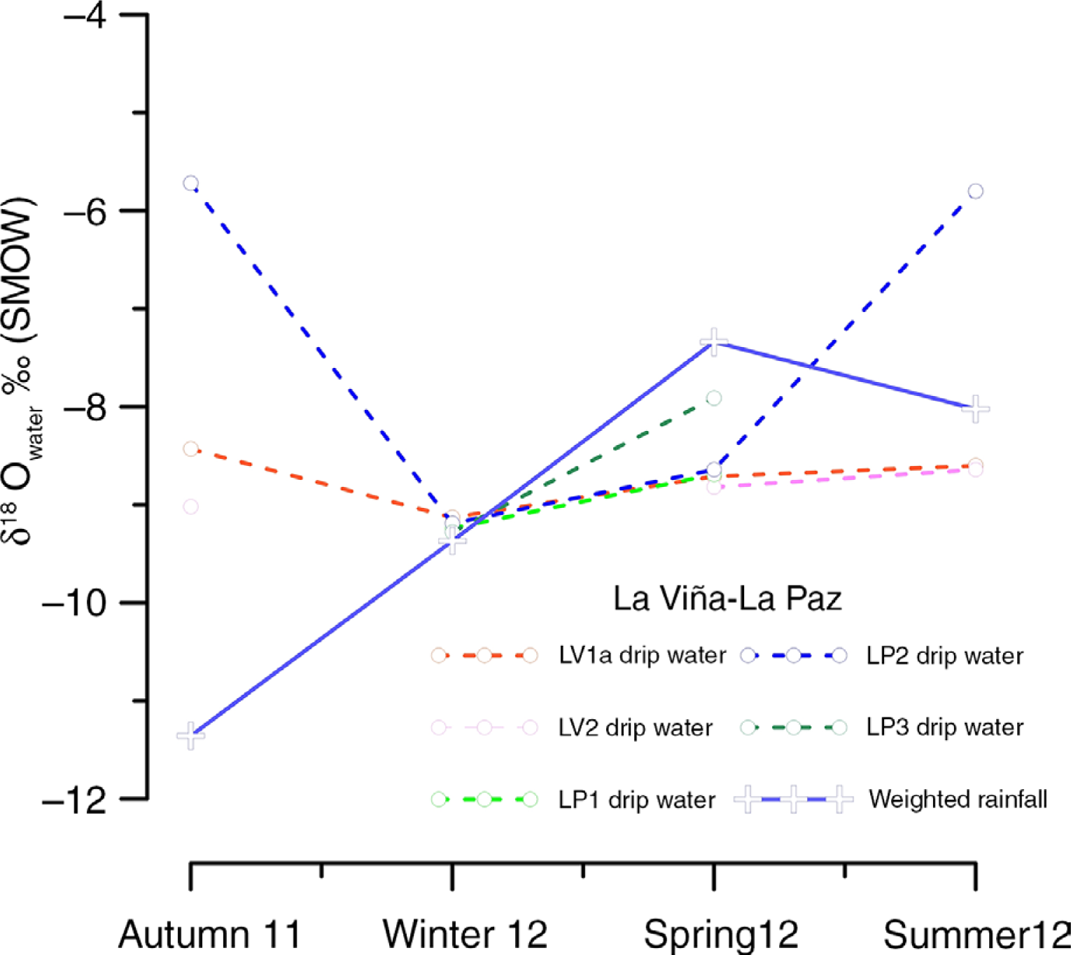

In the Ortigosa Cave System the relationship between drip water rates and rainfall events (Fig. 3) suggests that rainfall water enters into the cave through the epikarst with almost no delay, except in autumn; therefore this is the only season in which significant changes in water from the rain to the dripping can be expected. Figure 7 shows the comparison between rainfall and drip water oxygen signal, taking the weighted mean of the rain events prior to the water sampling moment. In autumn, the isotopic composition of drip water is much heavier than the rain water, especially in La Paz Cave, in agreement with the time delay shown between rainfall and water dripping resuming after summer; this residence time allows a certain degree of isotopic change in water, by depletion in the lighter isotope (Feng et al., 2014; Genty et al., 2014). Depletion in the light isotope can be absolute, due to evaporation in the epikarst, or relative, due to the input of the heavier isotope of the limestone by dissolution (Fairchild et al., 2006).

In other seasons the isotopic signal in drip water is closer to the rain water. In winter the isotopic signal in drip water is the same as the rain water, in spring drip water is slightly lighter than rain water, and in summer is lighter in La Viña Cave and heavier in La Paz. Partial evaporation of rain water, prior to the analysis, can result in drip water lighter than the rainfall water from which it derives. In addition, the lost of the specific rainfall event which produced the sampled drip water can also yield drip water lighter than the measured rainfall water. In spring, most likely, some of the rainfall events contributing to the analysed drip water were missing. In summer, although all rainfall events related with the sampling drip water were analysed, drip water δ¹⁸O increases while rainfall δ¹⁸O decreases, with respect to the previous spring values; in La Paz Cave δ¹⁸O of drip water is even heavier than δ¹⁸O of rainfall. As rainfall in summer is scarce, water probably has remained in the epikarst for longer, before dripping, for which a certain degree of depletion in the lighter isotope can be expected.

From dripping water to speleothem calciteTOP

In both caves RH is close to 100% during the whole year; besides, as it has been stated above, the measurement and sampling sites are placed in areas where ventilation is weak, therefore, its effects on the isotopic signature of speleothem calcite should be limited. Therefore, the isotopic composition of calcite depends only on the water isotopic composition and on the temperature dependant fractionation (Feng et al., 2014). In the Ortigosa Cave System the temperature oscillations through the year are very small (Muñoz et al., 2010), for which the primary control is the water isotopic composition. Thus, the environmental information is transferred to the speleothem calcite, provided that the isotopic fractionation process is reasonably free of kinetic effects.

To assess the oxygen isotopic fractionation in the speleothem calcite precipitation, its oxygen isotopic composition has been compared with the predicted values estimated from the formula by Tremaine et al. (2011):

1000 ln α = (16.1×10³×T⁻¹) –24.6

where α is the fractionation factor, which is estimated from the measured temperatures; then, the predicted δ¹⁸O of calcite was calculated from the formula:

α’ = (δ¹⁸O_{calcite VSMOW}+1000)/(δ¹⁸O_{water VSMOW}+1000)

The results show that measured calcite δ¹⁸O is, in general, less negative than the predicted δ¹⁸O; the only exceptions are two cases in La Paz Cave. The differences between measured and predicted values are in the range of the systematic offset values recorded in other monitored caves with the same or similar formula (Tremaine et al., 2011 and references therein). The average offset is smaller in La Viña Cave (0.62‰) than in La Paz Cave (0.75‰), in agreement with the stronger covariation between the isotopic signals of drip water and calcite in La Viña (r=0.81, n=6) than in La Paz (r=0.58, n=7). In this situation the kinetic effects in calcite precipitation are limited (Feng et al., 2014) and it is commonly assumed that some environmental information is retained by the calcite (Tremaine et al., 2011, Wackerbath et al., 2010).

This is confirmed by the parallel evolution of oxygen isotopic composition of drip water and calcite through the monitored period (Fig. 5). Nevertheless, in La Viña Cave, at the two sites (LV1a and LV2), values of both drip water and calcite are almost constant, whereas in La Paz Cave site LP2 and, especially, site LP3, which is the closest to the surface, shows larger variations, with heavier values in autumn and summer. Site LP3 in La Paz can be reached even by water coming from low intensity rainfall events or partially evaporated water in summer. On the contrary, La Viña Cave, which is below La Paz, shows more homogeneous values and only the delayed isotopic effect observed in autumn and, partially, the depletion in the light isotope in summer water can be recognized. Thus, discarded the effect of ventilation on the isotopic composition of speleothem calcite, the differences in calcite can be explained by the composition of the drip water, which, in turn, is related with the relative depth of the drip points and the water residence time in the epikarst, above the caves. Differences in oxygen isotopic composition with depth in caves have been also recorded in other caves (Genty et al., 2014), which are also linked to the different composition of the water that reaches the different cave levels.

In both caves, winter shows the lightest values of calcite δ¹⁸O, which agrees with both the drip water and the rain water, and it probably displays the best matching between drip water and precipitation, as it has been observed in other caves (Feng et al., 2014).

ConclusionsTOP

Several preliminary conclusions may arise from this one-year study (autumn 2011- summer 2012), tracking the oxygen isotopic signature from the rainfall to the speleothems in the Ortigosa Cave System:

These preliminary conclusions cannot be considered definitive but only as a working hypothesis for subsequent research.

ACKNOWLEDGEMENTSTOP

This study was mainly funded by the CGL2009-10455/BTE research project of the Ministry of Science and Innovation and FEDER and the Análisis de Cuencas Sedimentarias Continentales, Geotransfer, PaleoQ y Gemorfología y Cambio Global research groups of the Aragón Government. We are most grateful to M^a Angeles, Sara y Juan for their invaluable help. We also thank to the Ortigosa de Cameros town hall for the cave access. The Government of La Rioja is acknowledged by the meteorological data from Villoslada de Cameros station. We are indebted to the referees for their valuable comments.
