Mapping and analysis of geological fractures extracted by remote sensing on Landsat TM images, example of the Imilchil-Tounfite area (Central High Atlas, Morocco)
Análisis de fracturas geológicas extraídas por teledetección en imágenes Landsat TM, ejemplo de la zona de Imilchil-Tounfite (Alto Atlas central, Marruecos)

H. El Alaoui El Moujahid¹, H. Ibouh^1,2, A. Bachnou¹, M. Ait Babram³, A. El Harti⁴

¹ Cadi Ayyad University, Faculty of Sciences and Techniques, Marrakesh, Geosciences and Environment Laboratory, Bd A. Khattabi, BO.549, 40000 Guéliz, Marrakesh, Morocco. Email: h.ibouh@uca.ma

² LMI_TREMA_IRD, Cadi Ayyad University, Bd. My Abdellah, BO 2390, 40000 Marrakech, Morocco.

³ Mathematic and Population Dynamic Laboratory; Department of Mathematics, Faculty of Science and Techniques, Marrakech, Bd A. Khattabi, BO 549, 40000 Guéliz, Marrakesh, Morocco.

⁴ Moulay Slimane University, Faculty of Sciences and Techniques, Lab. Remote Sensing and GIS applied to Geosciences and Environment, BO: 523 Beni Mellal, Morocco.

IntroductionTOP

The use of satellite imagery in the Imilchil-Tounfite area Central High Atlas is relatively recent. All the anterior research done in this area is a structural, sedimentary and petrography geology (Frizon de Lamotte et al., 2008; Bougadir & Bouabdelli, 1994. Ibouh et al., 1994, Fadile, 2003). Due to its semi-arid climate which is marked by large variations in temperature, severe summer drought and some areas which are characterized by a high altitude (3200m) with a very difficult accessibility, mapping lineaments by conventional methods is insufficient and relatively expensive methods and also takes a lot of time to browse all the field. Thus we use Geographic Information System (GIS) and remote sensing for the establishment and updating of structural maps. Indeed, remote sensing is a discipline that focuses on the analysis of the information carried by electromagnetic radiation reflected and emitted by the Earth’s surface, then captured remotely by airborne or space-based instruments. Remote sensing with its synoptic view along with the improvement in spectral and spatial resolution as sensors allows not only the study of a large geographical area, but also accuracy in geological analysis. It permits also to complete some geological contours or some faults not observed previously in the field. The realization of the fault network map and its statistical study gives us a general idea of the spatial behavior of these fractures in the area. Combining inventory lineaments on satellite imagery, along with the auxiliary data and field work allows to have the map fractures and to understand the geological structures of the studied area (Pepe et al., 1997; Kavak, 2005). The main objective of this work is to complete the structural mapping in the Imilchil-Tounfite region using remote sensing, which will have a major interest in economic geology (mineral and hydrogeological explorations).

Presentation of studied areaTOP

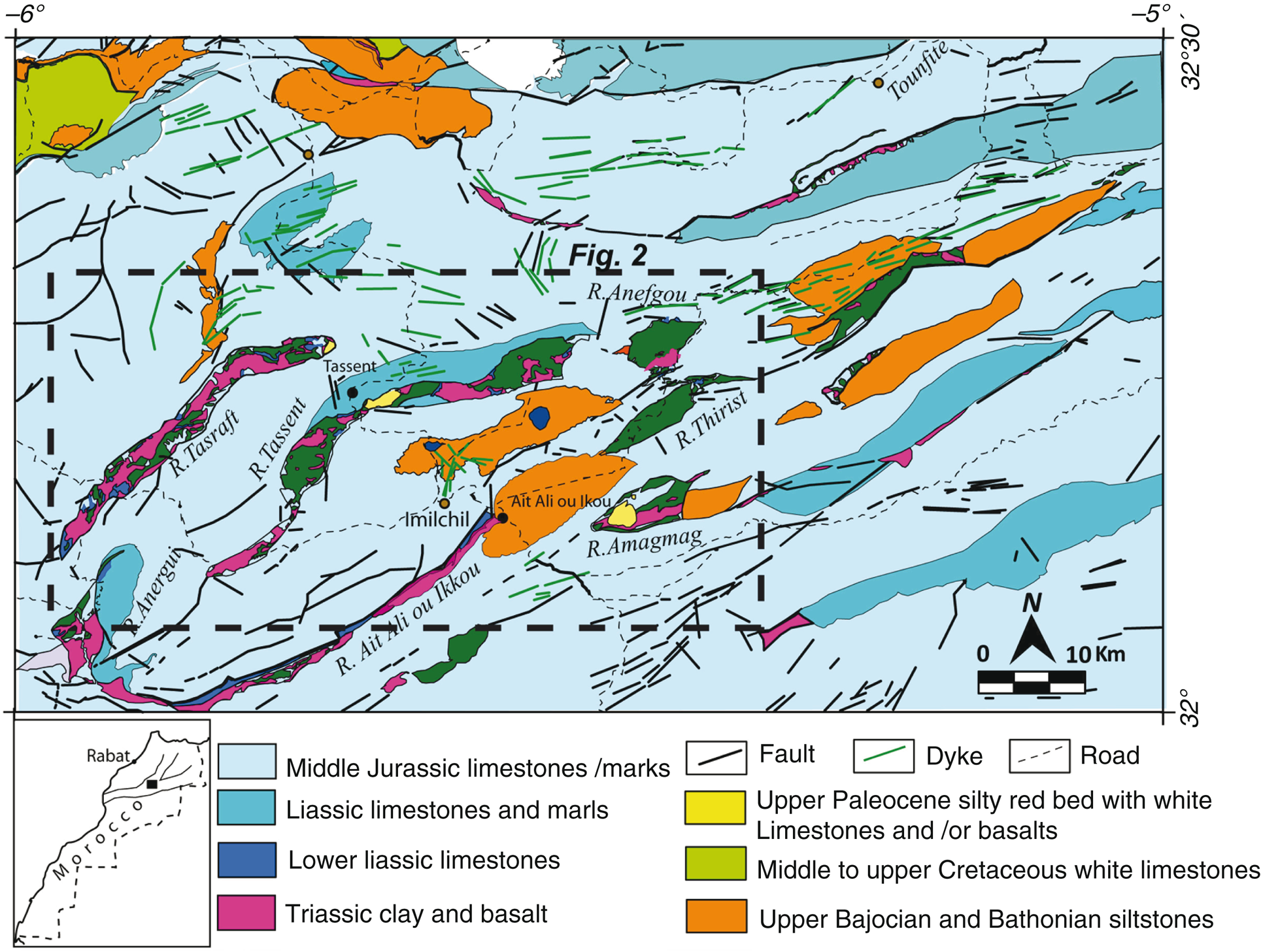

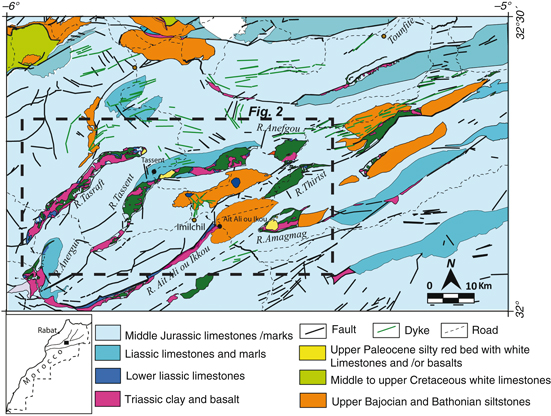

The Imilchil-Tounfite area is located in the Central High Atlas of Morocco, between 5° and 6°W longitude and between 32° and 32° 30’N latitude (Fig. 1). This area shows a geological setting with a lateral succession of anticline ridges; trending N70 (Laville, 1988). The main ridges are those of Tassent, Tasraft, Tirghist, Anfgou, Amagmag and Ait Ali Ouikkou (Fig. 1). These ridges are frequently cored by Jurassic magmatic rocks, including gabbro and troctolites. The anticlines ridges are a result of halokenitic evolution coupled to strike slip structural context during Jurassic time and superposed by alpine deformations later (Michard et al., 2011, Ibouh et al., 2014), All the anticline ridges are trending between N60 to N90, their structural evolution in the left strike slip context gives a distortion of ridges periclinal ending. So this later confers at the most part of ridges a sigmoid morphology (Fig. 1). (Ibouh, 1995; Ibouh et al., 2001; Michard et al., 2011).

Materials and methodsTOP

MaterialsTOP

The main material used in this study is the Landsat TM (Thematic Mapper) satellite image of L5201038_03820091111 scene, acquired on 12-31^th-2009 (path 201; row 38) Free Download from http://glovis.usgs.gov. This satellite image shows 7 spectral bands (Fig. 2) with 30 m spatial resolution, except the thermal band (band number 6) which has a ground resolution of 120 m.The image can provide to the interpreter, a multitude of structural information’s (Semere & Woldai 2006; Kavac, 2005; Qari, 2011). The mapping lineaments needs, besides satellite image, to take account of the topographical map in order to eliminate lineaments related to the human activities (road, railway…). Then geological map data will be confronted to the lineaments image to give them geological significance.

Data processing methodsTOP

The more conventional and most used methods in many studies for the lineaments extraction are the principal component analysis (PCA) as well as the enhancement by spatial filtering. (Amri et al., 2011; Aouragh et al., 2012; Kassou et al., 2012).

Principal Component AnalysisTOP

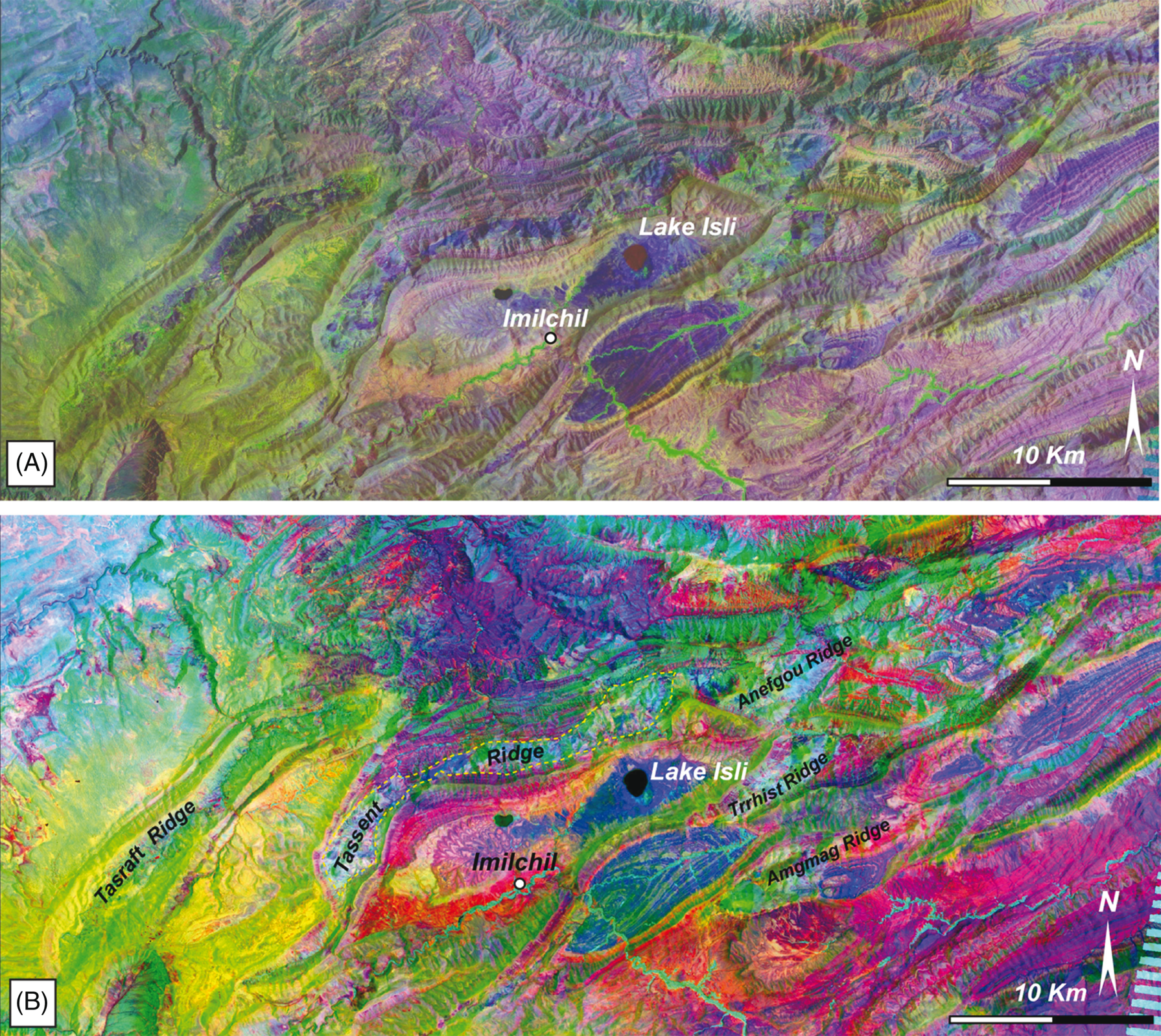

Principal components analysis or Hotelling transform is an image enhancement technique, based on a mathematical transformation, which reduces the dimensionality of data and segregates noise components (Singh & Harrison 1985). The choice of channels TM sensors was done in order to avoid redundancy and to maximize the quantity of information on the image bands. The analysis of the correlation matrix bands (Table 1) shows high correlations between the visible spectral bands (TM1, TM2 and TM3) and also between the infrared bands (TM4, TM5 and TM7). So the first three principal components analysis of the false color composed images of these correlated bands (images 123 and 457) allows the condensation of High quality information on the distribution of geological features in the area of study. This process allows us to make fine geological interpretations realizing a selective Principal Component Analysis PCA (PCA₁₂₃ and PCA₄₅₇).

Spatial filtersTOP

In order to enhance fractures and faults on the image, directional filters are used for lineaments extracting. Different sizes of matrix filters are applied (3×3; 5×5 and 7×7). The obtained results indicate that those of 5×5 filter size was giving the best and really lineaments which most closely resembles the geological structures in the field. At the end, directional filters (5×5) at 0°N, 45°N, 90°N and 135°N were applied (on a new false color composed image from CPA bands as : PCA₁₂₃ and PCA₄₅₇) in this work. The 5×5 filter used in this processing image is an edge detection filter. The 5×5 weights of the directional filter for the direction 90°N is given in the table 2.

Results and analysisTOP

Mapping discontinuities imageTOP

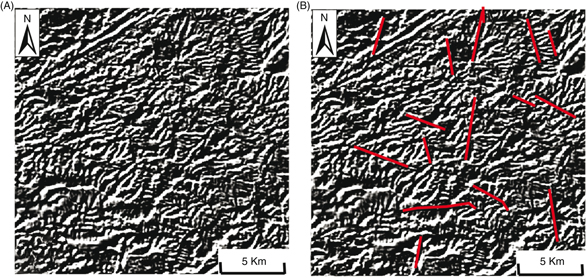

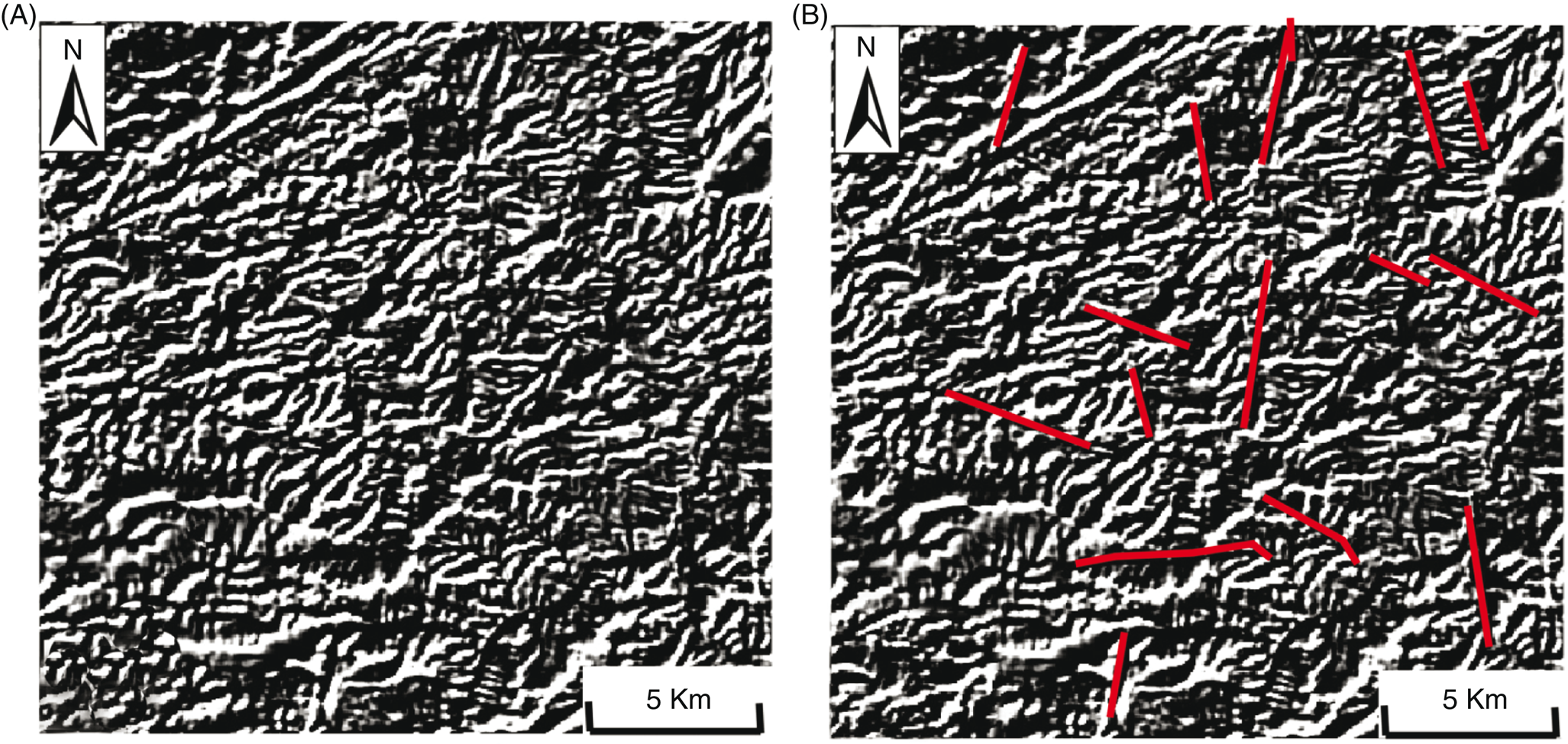

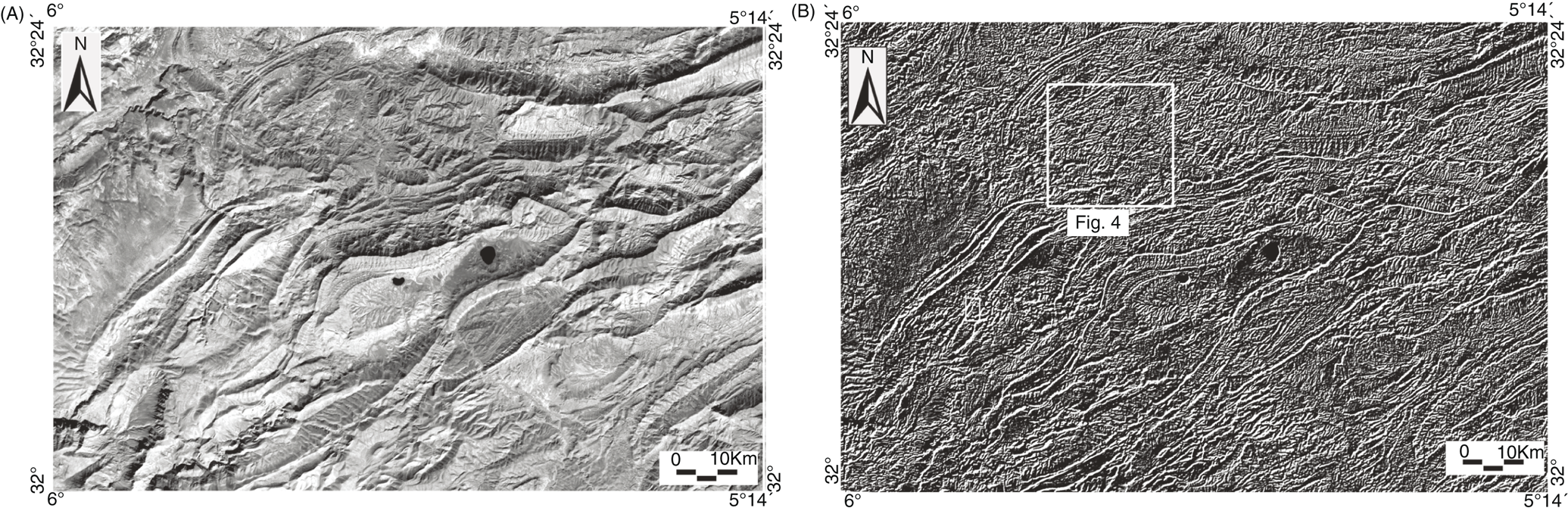

The application of directional filter with 5×5 matrix size on the first bands of PCA₁₂₃ and PCA₄₅₇, which were used as input images, allows highlighting the lineaments in the study area. These filters provide images in grayscale, where the lineaments based on the selected direction appear brighter than other entities. The maps of discontinuities images were realized by manual extraction (Fig. 3 A, B and Fig. 4 A, B) The lineaments are often enhanced perpendicular to the direction of the selected filter trend.

Lineaments analysisTOP

When applying the directional filter, directional gradients enhance all discontinuities images corresponding to any lithological discontinuity (contact between different lithological units) and/or structural discontinuity (fault, fracture and joint). In order to give significance to the structural lineaments extracted by remote sensing, the map of discontinuities images is confronted with auxiliary data (geological map, topographic map and field’s observations) in order to remove lithological discontinuities, the ridge and crest lines and the anthropogenic lineaments (bitumen road, railway...). The resulted map at the end of all those operations shows a maximum of the fracture and structural lineaments in the study area (Fig. 5 A). Finally some fractures mapped by remote sensing were validated in the field (Fig. 6).

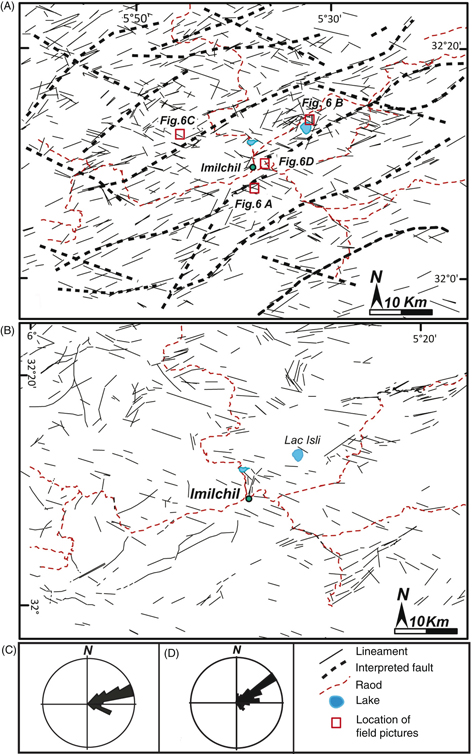

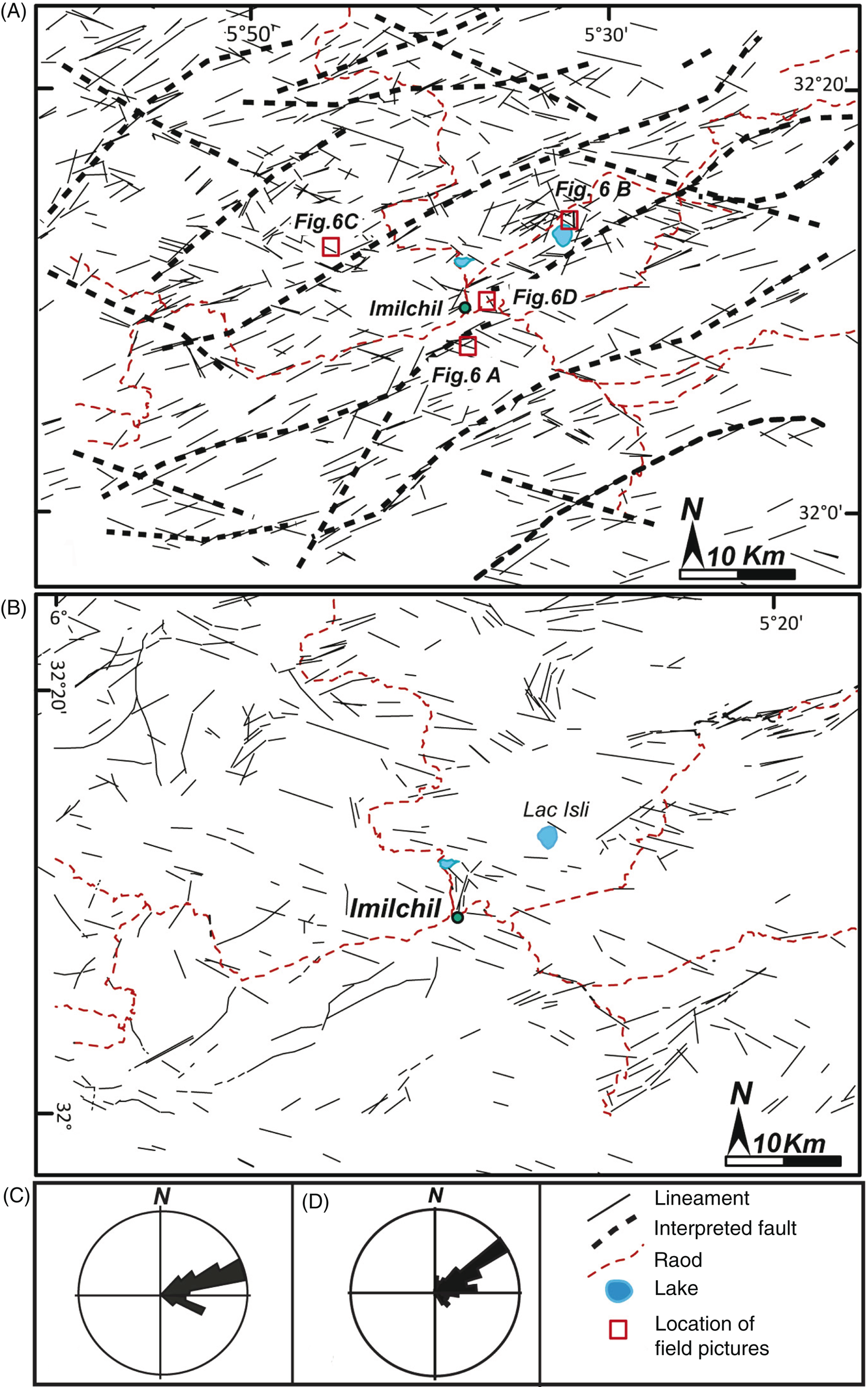

The fractures mapped by conventional methods on the geological map have been reproduced and analyzed (Fig. 5 B). The comparison of the map fractures resulting from remote sensing to those of the geological map shows two main differences: the first one concerns the density of fractures. Those extracted by remote sensing are numerous and denser than those of the conventional mapping in the geological map (sheets of Imilchil and Tounfite 1/100000, Fadile 2003). The second difference concerns the trend of lineaments. Those extracted from satellite image, show a major group of fractures trending N70 to N80 (Fig. 5 A and C), whereas the geological map shows NE-SW trending fractures as major trending lineaments (Fig. 5 B and D). The Interpretation of lineaments extracted by remote sensing on Landsat TM satellite image has revealed the main major faults recognized on the structural map of the Imilchil-Tounfite area and in the field (Fig. 6). At the end, we may conclude that remote sensing by its lineaments extraction methods on the TM Landsat image can contribute fully to improve geological maps and complete the geological structure of the study area.

GeostatisticsTOP

Geostatistics is used for estimation and prediction of a spatially continuous phenomenon, using data obtained at a limited number of spatial locations (Diggle & Ribeiro, 2007). The geostatistical study of lineaments has been used widely in many researches (Katsuaki & Yuichi 2006; Chiles, 1998; Koike & Komorida, 2001). It allows to understand and to estimate the spatial variability of the phenomenon under study (Gringarten & Deutsch 2001). This mathematical discipline developed from the recognition that the elements studied are not always randomly distributed in space, but may have a degree of spatial correlation known as “structure” (Castaing et al., 1988).

The aim of geostatistical study, in this work, fits into a general problematic of characterization, interpretation and valuation of structural lineaments. We used this technic to characterize the spatial dispersion of trend and lengths of fractures in the Imilchil-Tounfite area, central high Atlas of Morocco.

Lineaments variogram analysisTOP

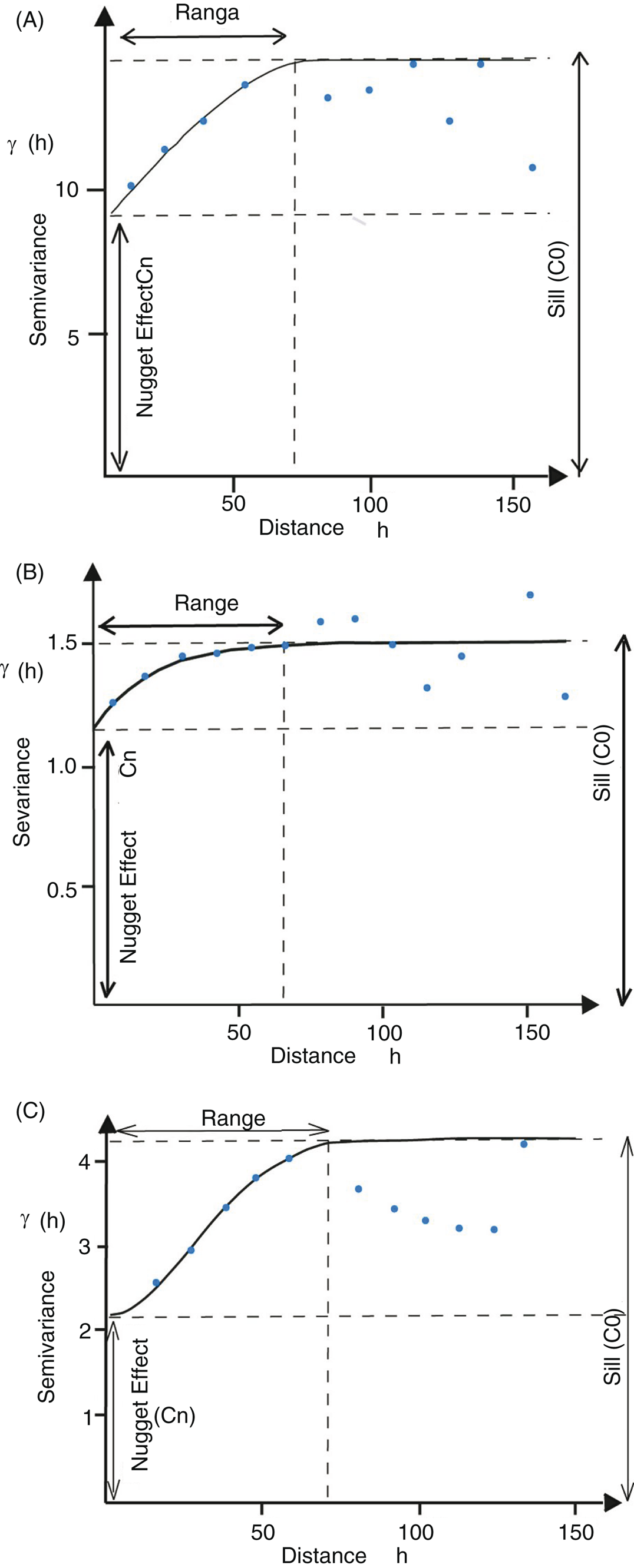

The variograms of fractures distribution in Imilchil-Tounfite region were calculated from cumulative lengths by units of 200 km² for each directional series of fractures and the regionalization parameters are determined using spherical and exponential theoretical models. A first analysis of different variograms shows that the fractures, of Imilchil-Tounfite area, are not randomly distributed in space, but have a degree of spatial correlation known as “structure”. This structure has range of influence up to 65 km (Fig. 7 A, B and C).

Statistical studyTOP

Spatial arrangementTOP

After extraction of the Imilchil-Tounfite fractures on satellite images, the resulting network is described by 10 properties (known as variables). Only implementation of the PCA statistical method will bring out the organization of the network in space. The variables used in PCA study are: 1) the latitude of the fractures and 2) longitude of fractures (Lambert coordinates X and Y positioning in space); 3) the ENE / WSW trend; 4) the WNW / ESE; 5) the NE / SW; 6) NW / SE; 7) the length of ENE / WSW fractures; 8) the length of WNW / ESE fractures; 9) the length of fractures trending NE / SW and 10) the length of fractures trending NW / SE.

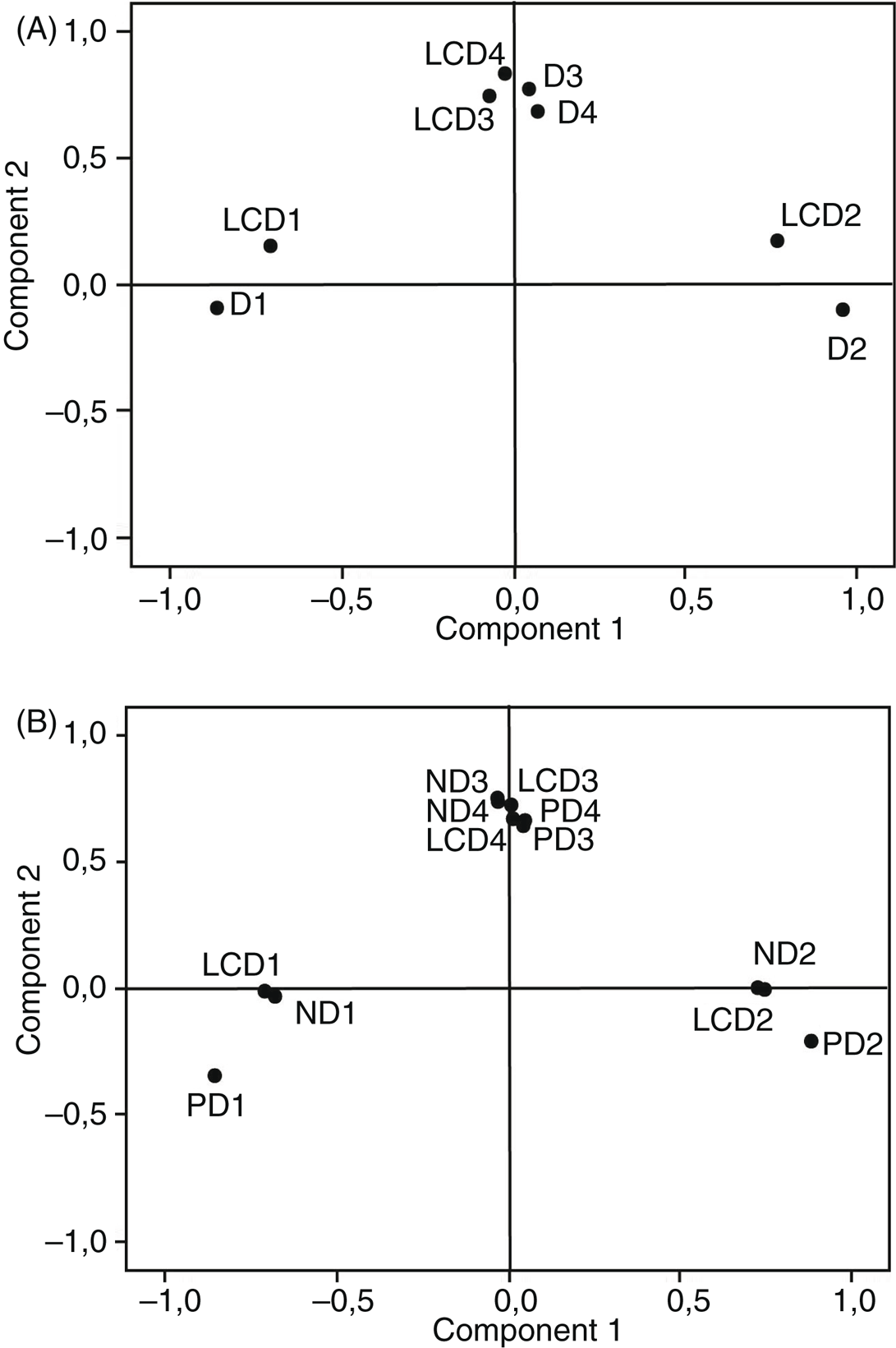

The result of the lineaments network study, by the PCA, allowed to calculate 10 principal components with a great percentage of the variance estimated at 56,319 within the three first principal components (CPA₁=21,39; CPA₂=19,29; CPA₃=15,63) (Table 3).

This study also allowed to extract the sum of the square of the selected factors in tow first components (CPA₁=21,397 and CPA₂=40.627) (Table 4) and calculating the sum of the square of the selected factors for rotation for the same components (CPA₁=20,999 and CPA₂=40,687) (Table 5).

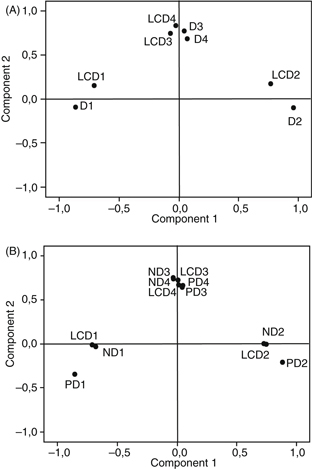

The statistical principal component analysis study improves information about the spatial relationships between different lineaments groups trend. According to the Figure 8A, on a grid of 20 km length and 10 km width we find that the ENE-WSW (D1) and WNW-ESE (D2) lineaments are scattered and not coexist in the space. However NE-SW (D3) and NW-SE (D4) coexist within the same location. In order to confirm this conclusion, another statistical study was done as principal component, and taking account the cumulated lengths and the number of fractures in each directions (Fig. 8 B). This study gives a distribution of fractures group as seeing in the figure 8 A.

Lineaments length analysisTOP

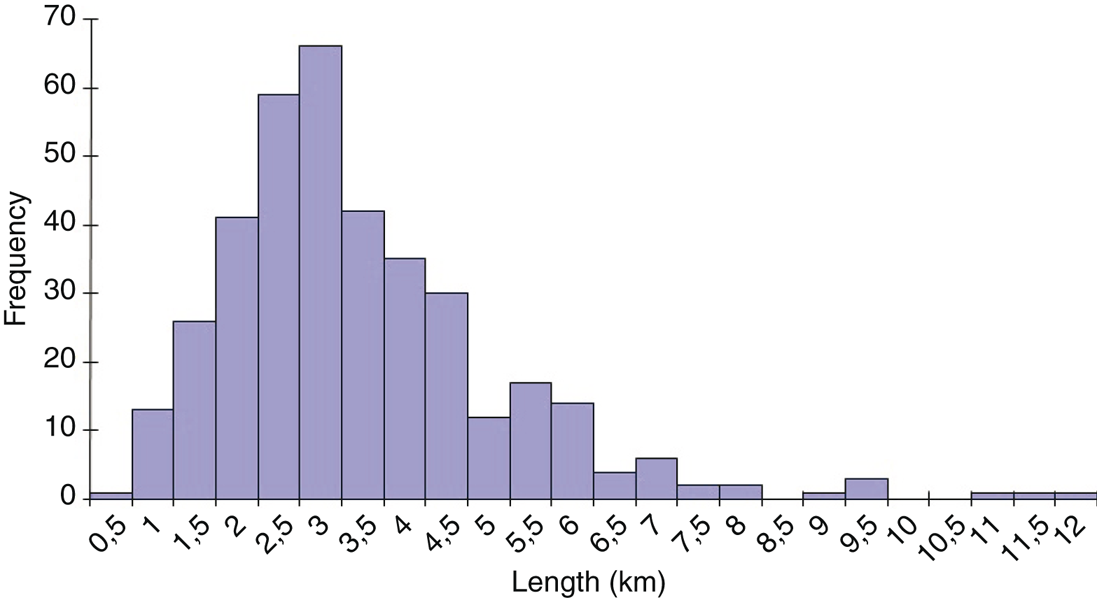

Analysis of the lineaments length shows a variation from 500 m to 12 km. The lengths of 374 lineaments mapped by Landsat remote sensing are distributed in 21 classes in steps of 500 m (Fig. 9). For simplicity, they can be grouped into three classes: a main class (75.66%) which includes lineaments whose lengths are between 0.5 and 4 km, followed by a second class (22.19%) of lineaments which have lengths between 5 km and 7 km and at the end a minority class (2.15%) with lengths greater than 7 km.

InterpretationTOP

The digital processing of Landsat TM satellite image and the Geographic Information System (GIS) were used to create a fracture map of the Imilchil-Toufinte Area in the central High Atlas of Morocco. The statistical analysis of faults network, frequency diagram shows clearly that all trends are organized into four main groups (Fig. 5 C): ENE/WSW, WNW/ESE, NE/SW and NW/SE.

The principal component analysis study revealed that the four trend groups of fractures have particular space distribution. Thus the two groups trending ENE/WSW and WNW/ESE cannot coexisting in space of 200 Km square. The two other groups trending NW/SE and NE/SW, are coexisting in the field. This spatial relationship is also visible on the geological map (Fig. 1 and Fig. 5 B), the dispersed directions are the main faulted anticlinal ridges and major faults of the Imilchil-Tounfite area (Interpreted faults in fig. 5 A).They are dispersed because they are separated by wide synclines (10 to 20 Km). However coexisting directions are shown on the geological map (Fig. 1) on the middle part of synclinal form as a short and conjugate strike-slip fault.

The fracture length analysis shows three main groups, the first one is between 0.5 and 4 km (75.66%), the second is between 5 and 7 km (22.19%), and finally a third group is with length greater than 7 km (2.15%). The lineaments lengths distribution corresponds perfectly to the geological map of the study area (Fig. 1 and Fig. 5A). We observed that the longest faults are the rarest (Fig. 1 and fig. 5 A)

The geostatistical study shows that the fracture system plotted from satellite imagery is not randomly distributed in the area, but it has a structured occurrence. The fractures have a degree of spatial correlation known as “structure” with ranges of influence up to 65 km. That is to say that when the separation distance between the fractures is upper to 65 km, fracture length well be independent.

In order to compare our results with geological field data, it is necessary to present a brief structural description of the Moroccan Atlas Mountain followed by a discussion. The installation of the Moroccan Atlas basin is controlled by the remobilization faults inherited from the Hercynian orogeny. Jacobshagen (1992) described two principal faults, the South Atlas Fault (SAF) NE-SW to E-W and the Translaboran Fault (TAF) trending NE-SW. Piqué & Laville (1993) describe two Paleozoic faults responsible of the Atlasic basin installation, they are Transforming Paleozoic Zone of Atlas (TPZA) trending E-W and Eastern Moroccan Orogenic Belt (EMOB) trending NE-SW.

Those faults are reactivated during the opening stage of the Atlasic basin from upper Permian to Triassic age; this event is related to the opening of the central Atlantic Ocean in one side and the new Tethys in the other side. The tectonic inversion of the Moroccan Atlas Mountain is related to the Africa-Eurasia convergence, the uprising stage of the Atlas is characterized by a structural context controlled by multiple relay on left lateral fault trending EW and NE-SW since the Bathonian age (Laville & Fedan, 1989). The major stage of tightening and the uprising relief are beginning from the Eocene-Paleocene age and continued during Miocene (Frizon de Lamotte et al., 2008). The main faults trending N70 to EW are described as main thrust faults of the Atlas belt.

In The other hand, the opening of the Atlasic basin by favoring an oblique extension on a major transfer fault trending N120 to WNW-ESE since Triassic-Jurassic age (El Kochri & Chorowics 1996). The structural inversion begins with NS compression since the Eocene. The NW-SE to N120 faults have been described elsewhere in the High Atlas as paleogeographic fault, namely Demnat fault at the east part of Atlas Mountain (Le Marec & Jenny 1980) and the Berthat fault at the north part of Midelt-Errachidia transect (Benammi & El Kochri 1998).

If we compare the direction lineaments to the faults described in the Atlas, the main directions of lineaments ENE-WSW and WNW-ESE are the most dominant; they could correspond to the major directions described in the paragraph above. They correspond to the direction of the anticline ridges as sinistral fault and probably inherited from the Hercynian basement.

The lineaments of NE-SW direction, with 20% of all the lineaments is an important direction, it would correspond to the anticlinal ridges trending NE-SW (Fig. 1). This direction was also described as the main direction in the Middle Atlas (Laville & Fedan 1989) and secondary direction in the High Atlas. The NW-SE lineaments, is the minor direction with 5% of the all lineaments.

Concerning the age of the fractures, the first three principal directions NE-SW, ENE-WSW and WNW-ESE, have been described in the literature as faults that controlled the sedimentation during the Trias and Lower Lias age (Bouchouata et al., 1995; Frizon de Lamotte et al., 2008). Those faults are reactivated during the different phases of the Atlas structuration as reverse fault. However, the NW-SE direction, and some minor fault trending NE-SW appear younger than the others, they cut across the main structures and provokes torsion of the anticline ridges ending. They can considered in most cases as response of Jurassic cover to the NW-SE and NE-SW faults in the basement reactivated during the main phase of tightening of the Atlas (Paleocene Eocene) (Ibouh et al., 2001).

ConclusionsTOP

The use of remote sensing on the visible and infrared bands of Landsat TM image added to the geographic information system (GIS) have contributed widely to create the fractures map with a fairly high number of fractures compared to the existing geological and structural maps. Firstly, the digital processing of satellite images has given a significant contribution to complete structural map of the Imilchil-Tounfite area. It can be use as a guide for future filed company in this area.On the other hand, statistical and geostatistical studies of the Imilchil-Tounfite area fractures, allows explaining how the fault network is structured in this region. The new fault network, mapped by remote sensing, will help us to understand the regional hydrological system (Chuma et al. 2013; Masoud & Koike 2006).

Control and mapping fractures in the study area can be used also in mining and hydrogeological exploration in the Imilchil-Tounfite region. This final cartographic document is a good starting point for any work of rural engineering. It will serve in a project study for the establishment of structures engineering such as road, railway or inland waterways (bridges, tunnels), dam or any other project and construction necessitating recognition characteristic soil and subsurface.

ACKNOWLEDGMENTSTOP

The authors would like to thank the anonymous reviewers for their comments and suggestions that improved the final manuscript of this work. They also like to thank the executive editor Jose-Maria Cebria for all communication efforts and the work for the publication of this paper.

“The Authors would like also to thank the Geosciences and Environment laboratory, the Department of Geology in the Faculty of Sciences and Techniques of Marrakesh, for supportin this work”.
